2002 Buell X1: Fuel System 4-63
HOME

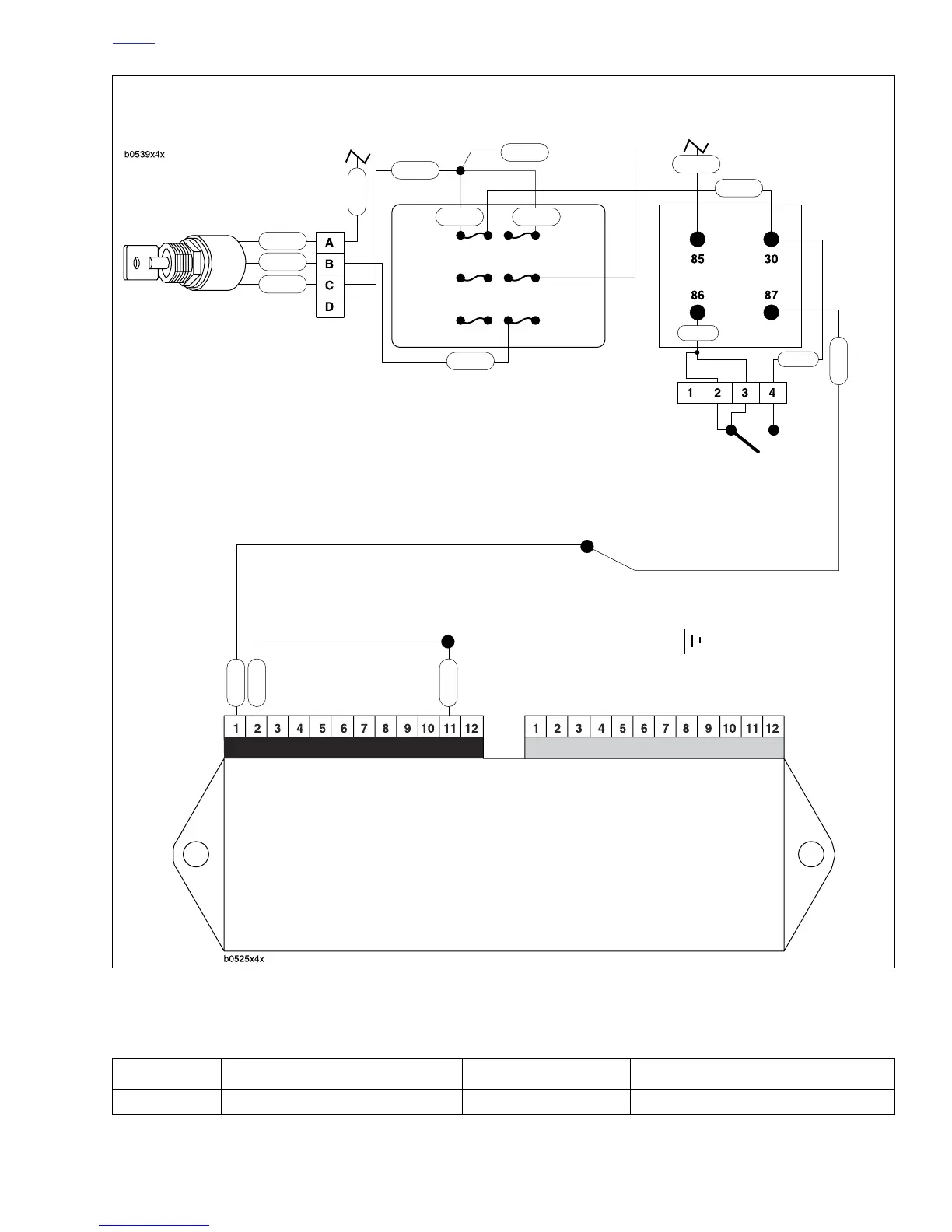

Figure 4-50. Battery Voltage Circuit
Electronic Control Module
(ECM)
Connector [10] Connector [11]
BK BK
Ignition
Ground
R
R
R/GY
R/BK
R/GY
R/BK
R/BK
R/BK R/BK
GY/O
Ignition 20A
Memory 15A
Spare 15A
Lights 15A
Instruments 15A
Accessory 15A
Ignition
Switch
[33]
Engine Stop
Switch [22]
TN/W
Ignition Relay
W/BK
GY/O
To Main
Circuit Breaker
To Starter
Interlock Circuit
GY
GY
Table 4-20. Wire Harness Connectors in Figure 4-50.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under seat
