2002 Buell X1: Fuel System 4-77
HOME

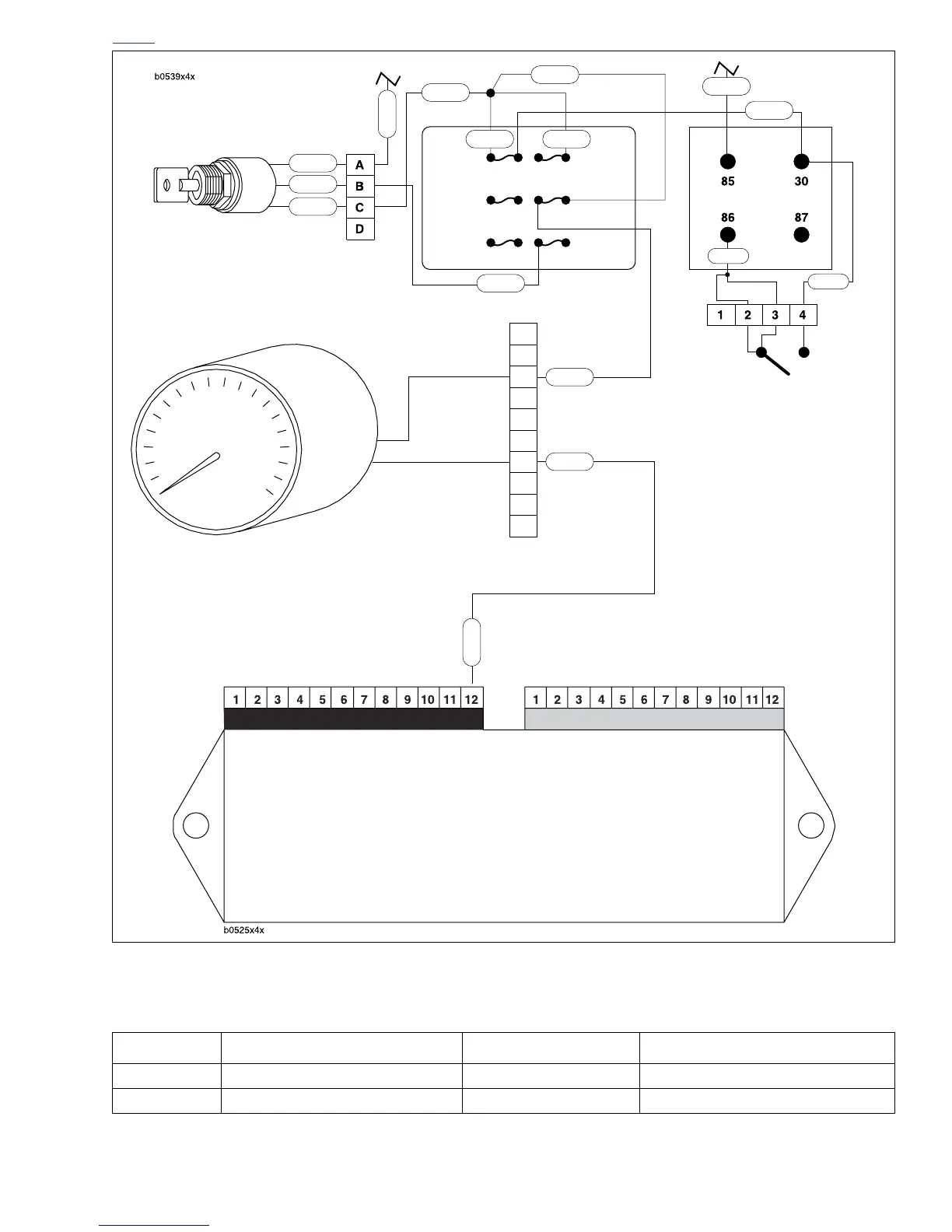

Figure 4-62. Tachometer Circuit
1
2
3
4
5
6
7
8
9
10
b0533x4x
R
R
R/GY
R/BK
R/GY
R/BK
R/BK
R/BK R/BK
GY/O
Ignition 20A
Memory 15A
Spare 15A
Lights 15A
Instruments 15A
Accessory 15A
Ignition
Switch
[33]
Engine Stop
Switch [22]
TN/W
Ignition Relay
W/BK
GY/O
To Main Circuit
Breaker
Instruments [39]
Tachometer
PK
PK
To Starter
Interlock Circuit
O
Electronic Control Module
(ECM)
Connector [10] Connector [11]
Table 4-24. Wire Harness Connectors in Figure 4-62.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under seat
[39] Main harness to instruments 10-place Multilock under fuel cell
