Buell X1 2002 - Page 303

2002 Buell X1: Fuel System 4-85
HOME

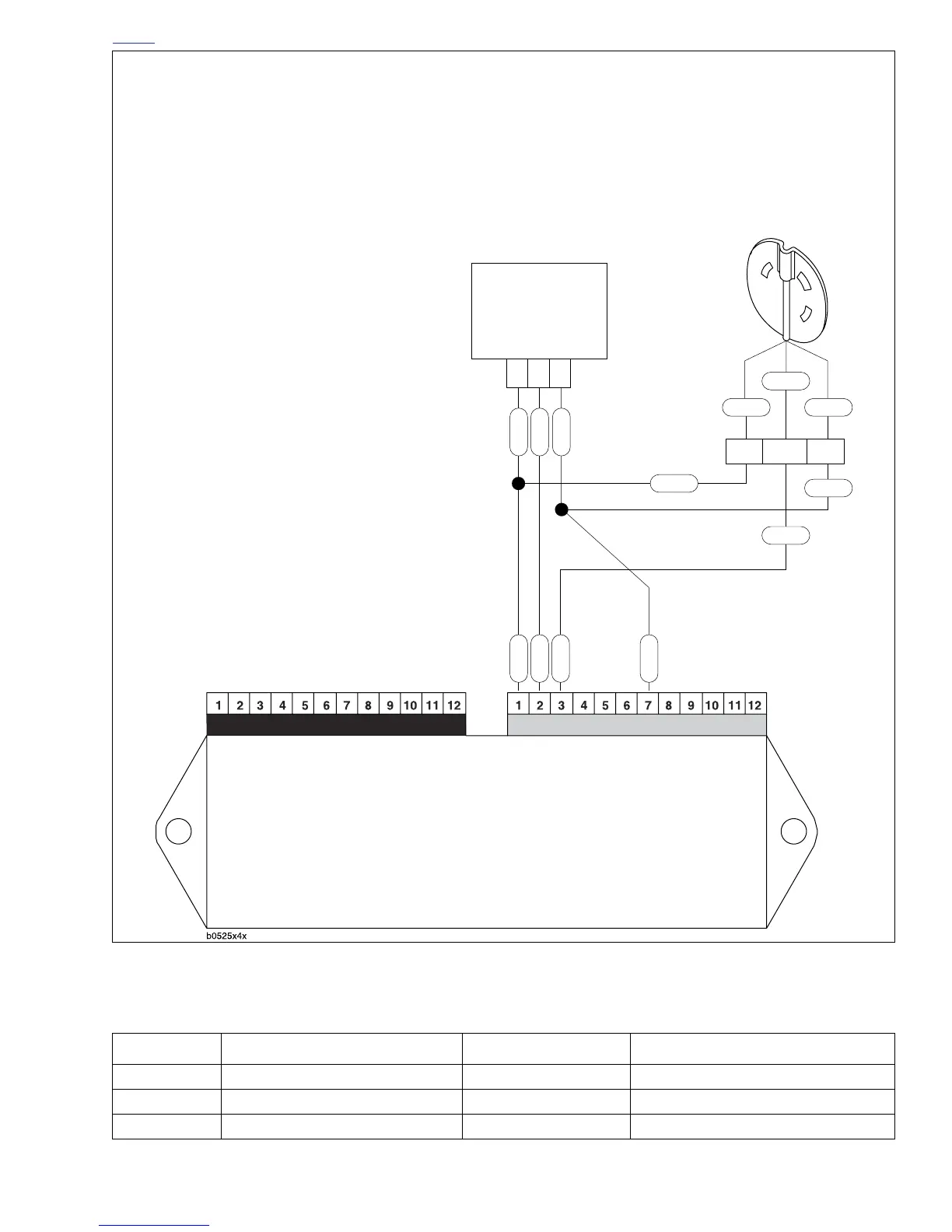

Figure 4-67. Cam Position Sensor Circuit
CBA
b0526x4x
Throttle
Position
Sensor
[88]
R/W
V/Y
BK/W
b0527x4x
R/W BK/W
GN/W
Cam Position
Sensor [14]
R/W = 5 volt reference
GN/W = sensor signal
BK/W = sensor ground
Electronic Control Module
(ECM)
Connector [10] Connector [11]
ABC
R/W
V/Y
GN/W
BK/W
BK/W
GN/W
R/W
Table 4-26. Wire Harness Connectors in Figure 4-67.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under seat
[14] Cam position sensor 3-place Deutsch near starter
[88] TP sensor 3-place Packard behind air cleaner backplate
