2002 Buell X1: Fuel System 4-95
HOME
REMOVAL
1WARNING1WARNING
To protect against accidental start-up of vehicle, discon-
nect the negative battery cable before proceeding. Inade-
quate safety precautions could result in death or serious
injury.
1WARNING1WARNING
Always disconnect the negative battery cable first. If the
positive battery cable should contact ground with the
negative cable installed, the resulting sparks may cause
a battery explosion which could result in death or seri-
ous injury.
1. Disconnect both battery cables, negative cable first.
2. Remove left side scoop. See
2.36 AIR SCOOP.
3. See
Figure 4-78. Disconnect the spark plug cables from
the coil plug posts (1, 2).
4. Detach connector (7) [83].
5. Remove two screws and washers to drop coil from
frame.
INSTALLATION
1. See
Figure 4-77. Attach coil to frame with screws and
washers. Tighten to 4-6 ft-lbs (5-8 Nm).
2. See Figure 4-78. Attach connector (7) [83].
3. Connect front spark plug cable to connector (2) and rear
spark plug cable to connector (1).
4. Install left side scoop. See
2.36 AIR SCOOP.
1WARNING1WARNING
Always connect positive battery cable first. If the positive
cable should contact ground with the negative cable
installed, the resulting sparks may cause a battery explo-
sion which could result in death or serious injury.
5. Connect battery cables, positive cable first.

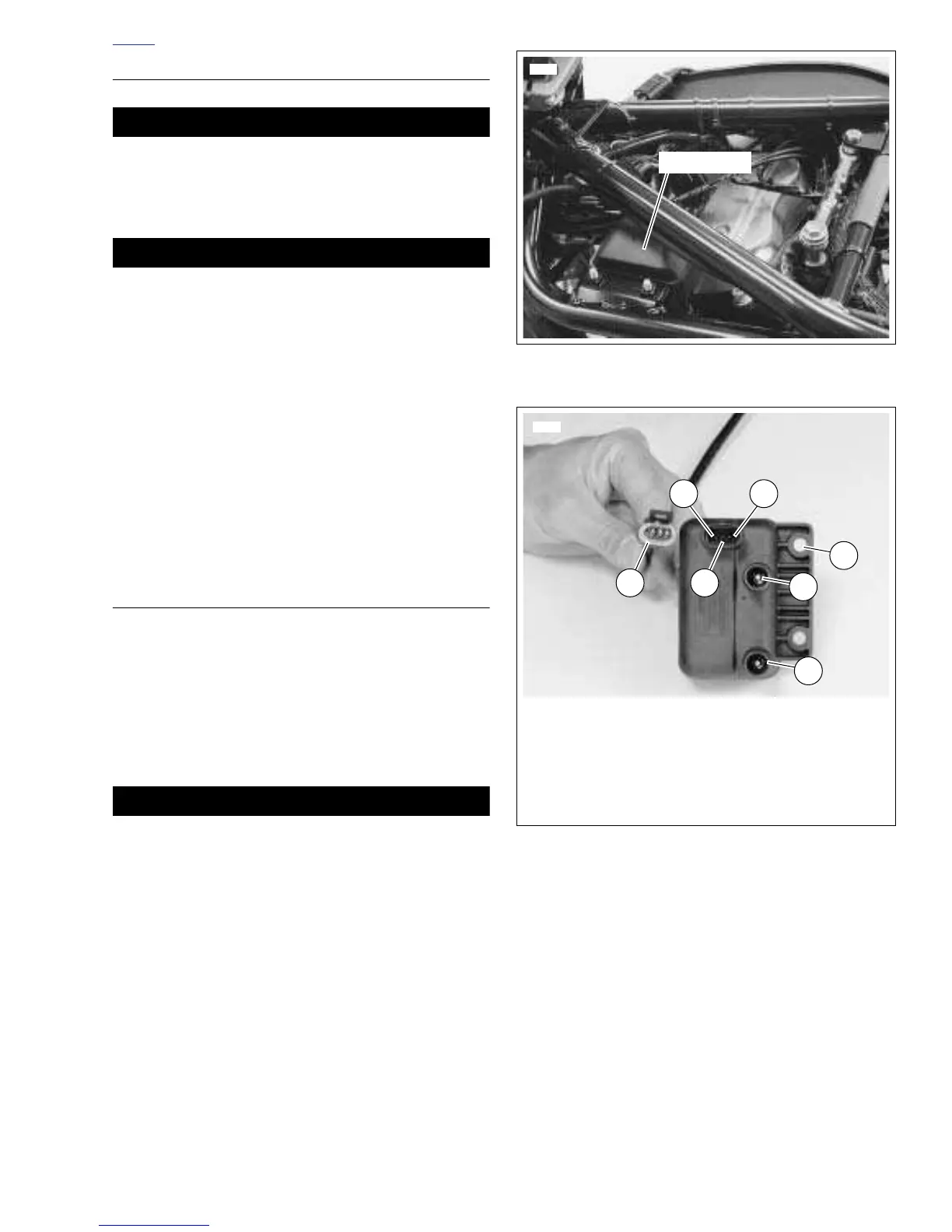

Figure 4-77. Ignition Coil Location
Figure 4-78. Ignition Coil
6587
Ignition Coil
1
6766
2
46
5
1. Rear Cylinder Post
2. Front Cylinder Post
3. Screw and Washer Location
4. Coil Pin A (rear cylinder)
5. Coil Pin B (12 VDC)
6. Coil Pin C (front cylinder)
7. Coil Connector [83]
7
3
