4-114 2002 Buell X1: Fuel System
HOME

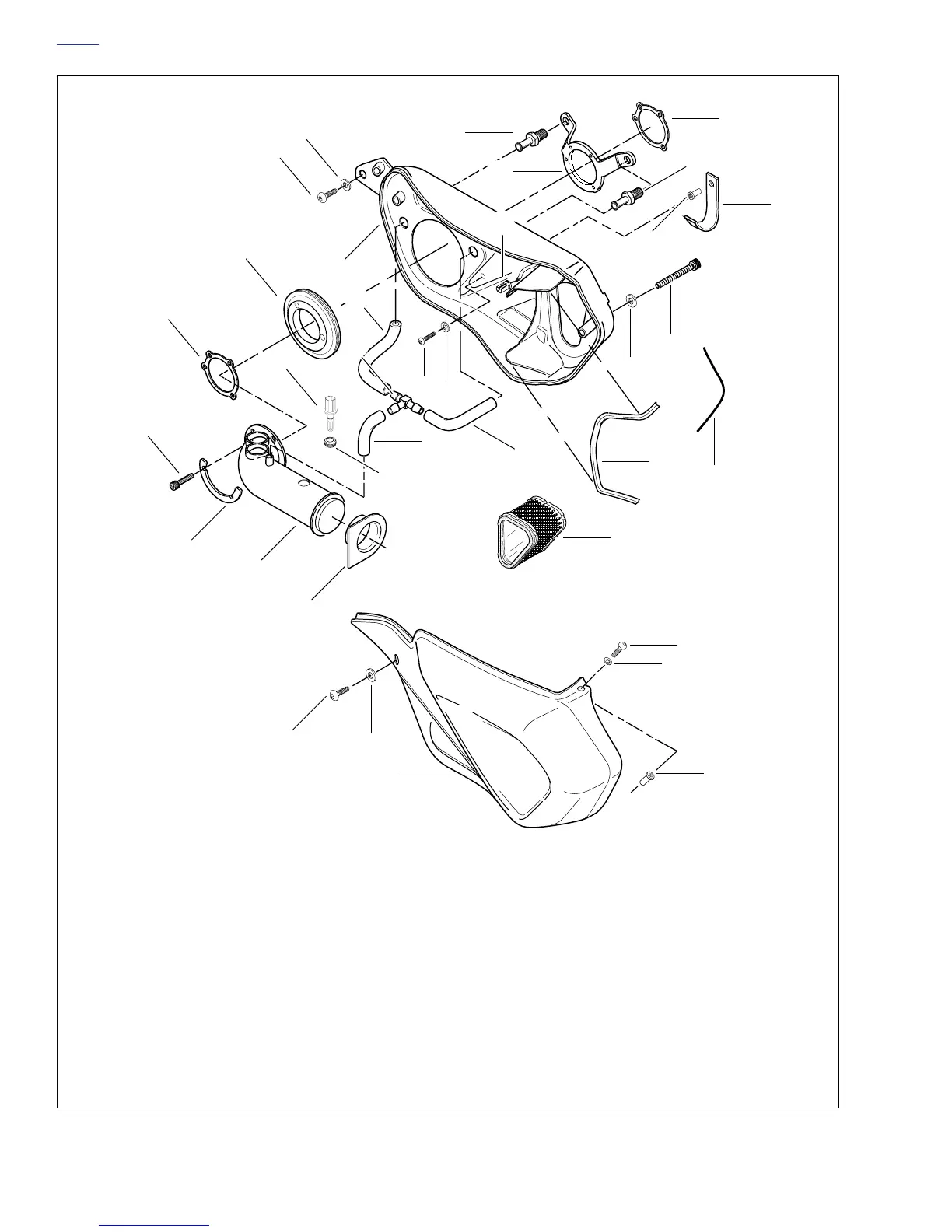

Figure 4-108. Air Cleaner
1. Cover, Air Cleaner
2. Washer (3)
3. Screw (2)
4. Wellnut
5. Filter Element
6. Gasket, Snorkel
7. Snorkel, Internal
8. Snorkel Plate
9. Screw
10. Gasket (2)
11. IAT Sensor
12. IAT Grommet
13. Breather Hose, Snorkel
14. Gasket
15. Breather Hose
16. Breather Tee
17. Screw (3)
18. Washer (3)
19. Breather Hose
20. Grommet
21. Backing Plate
22. Bolt
23. Bolt, Breather (2)
24. Support Plate
25. Wellnut (3)
26. Clamp (3)
27. Screw
28. Gasket
29. IAT Connector [89] and Wiring
4
2
3
1
3
2
6
7
8
9
10
20
22
2
21
11
23
5
14
28
26
10
24
23
25
2
27
12
13
15
17
18
16
19
29
b0665x4x
