4-116 2002 Buell X1: Fuel System
HOME
REMOVAL
Vent Valve
1. Remove vent valve. See
4.38 FUEL TANK VENT VALVE
2. See Figure 4-110. If necessary, label fuel tank vent hose
(1) at canister fitting and remove.
Canister
1. See
Figure 4-110. The canister assembly mounts on a
frame tube along the left side of the motorcycle.
2. Label and disconnect the three hoses connected to the
canister.
3. See
Figure 4-112. Depress both locking tabs (3) on the
canister mounting bracket (4). Slide canister towards the
front wheel until it disengages from the mounting bracket
and remove.
4. Remove screws, washers and locknuts (6) to detach
mounting plate (2) from clamps (1).
5. Remove countersunk screws and locknuts (5) to sepa-
rate bracket (4) from mounting plate (2).
INSTALLATION
Vent Valve
1WARNING1WARNING
Verify that the fuel tank vent hose does not contact hot
exhaust or engine parts. The hose contains flammable
vapors that can be ignited if damaged, which could result
in death or serious injury.
1. Install vent valve. See
4.38 FUEL TANK VENT VALVE.
2. See Figure 4-110. Attach fuel tank vent hose (1) to can-
ister if disconnected.

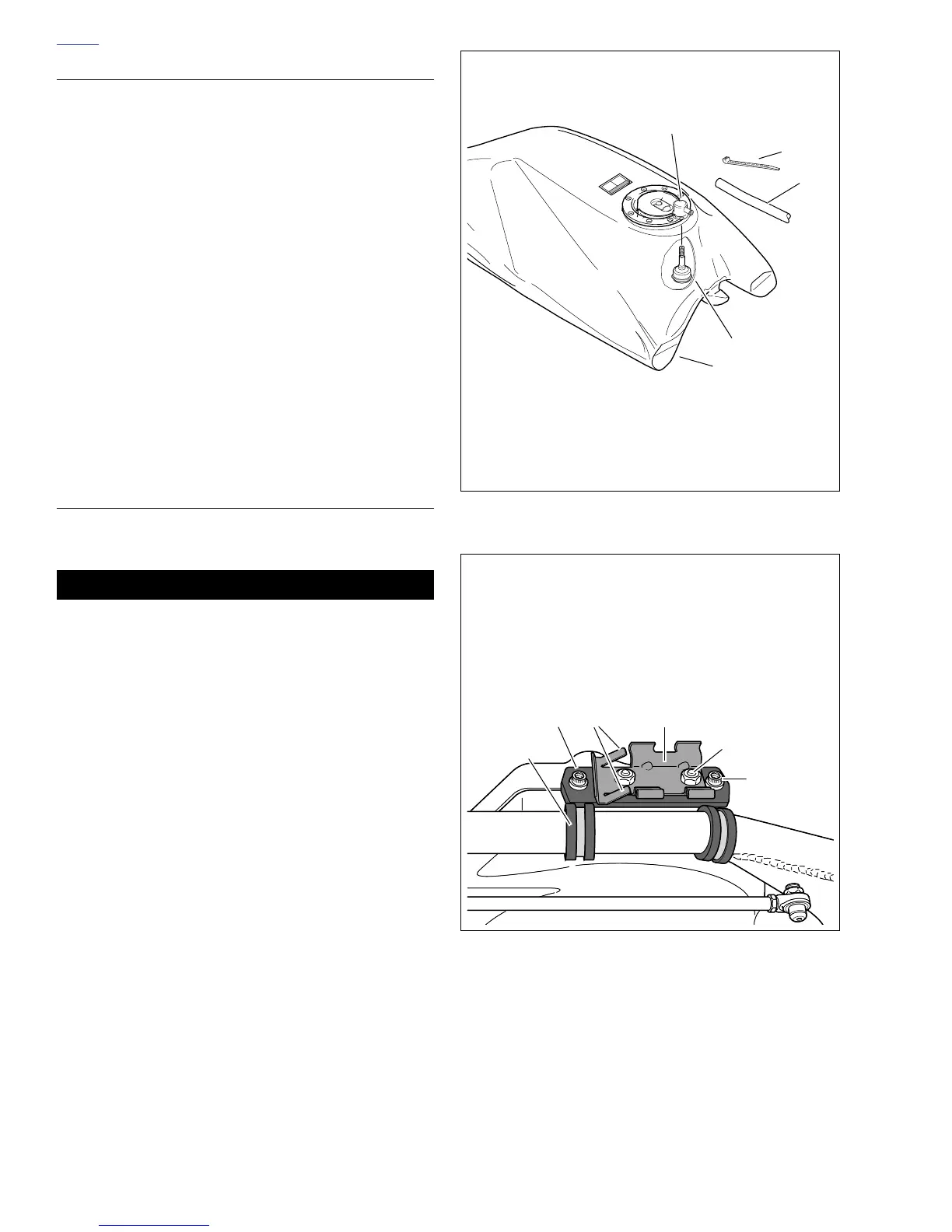

Figure 4-111. Vent Valve
Figure 4-112. Carbon Canister Mounting
b0742a4x
1
4
3
5
1. Fuel Tank
2. Vent Valve
3. Vent Valve Fitting
4. Fuel Tank Vent Hose
5. Cable Strap
2
1. Clamp (2)
2. Mounting Plate
3. Locking Tabs
4. Canister Mounting Bracket
5. Countersunk Screw and Locknut (2)
6. Screw, Washer and Locknut (2)
b0321x4x
1
2
6
4
5
3
