6-12 2002 Buell X1: Drive/Transmission
HOME

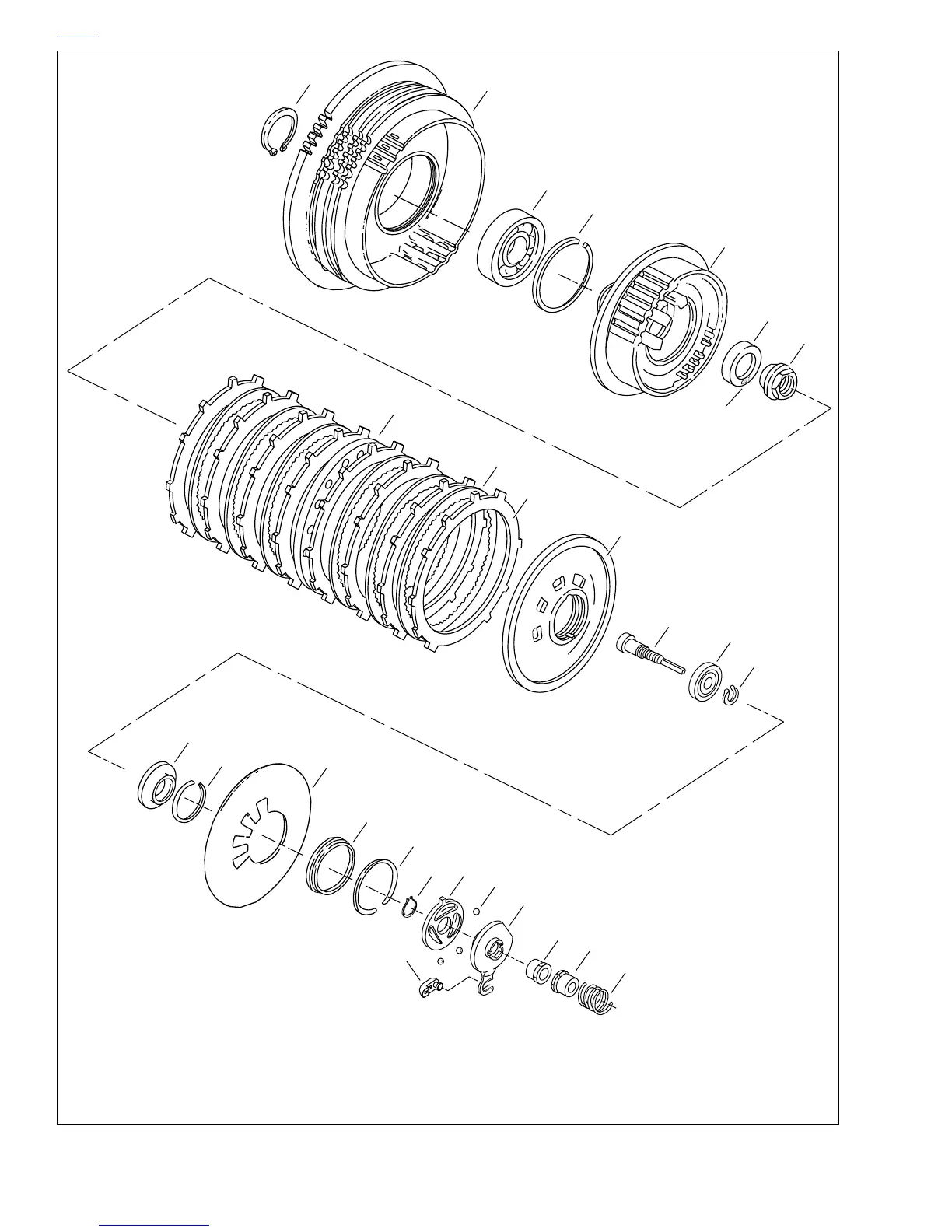

Figure 6-16. Clutch Assembly
1. Spring
2. Lockplate
3. Wellnut
4. Coupling
5. Outer Ramp
6. Ball (3)
7. Inner Ramp
8. Retaining Ring
9. Snap Ring
10. Spring Seat
11. Diaphragm Spring
12. Retaining Ring
13. Release Plate
14. Retaining Ring
15. Bearing
16. Adjusting Screw
17. Pressure Plate
18. Fiber Plate (8)
19. Steel Plate (6)
20. Spring Plate
21. Mainshaft Nut
22. Washer
23. Clutch Hub
24. Retaining Ring
25. Bearing
26. Clutch Shell
27. Retaining Ring
