2002 Buell X1: Electrical 7-9
HOME
DIAGNOSTICS
The reference numbers below correlate with the circled num-
bers in the
7.5 STARTER INTERLOCK flow charts.
1. Check diode with an ohmmeter as shown in
Figure 7-5.
2. Check diode polarity as shown in Figure 7-6.

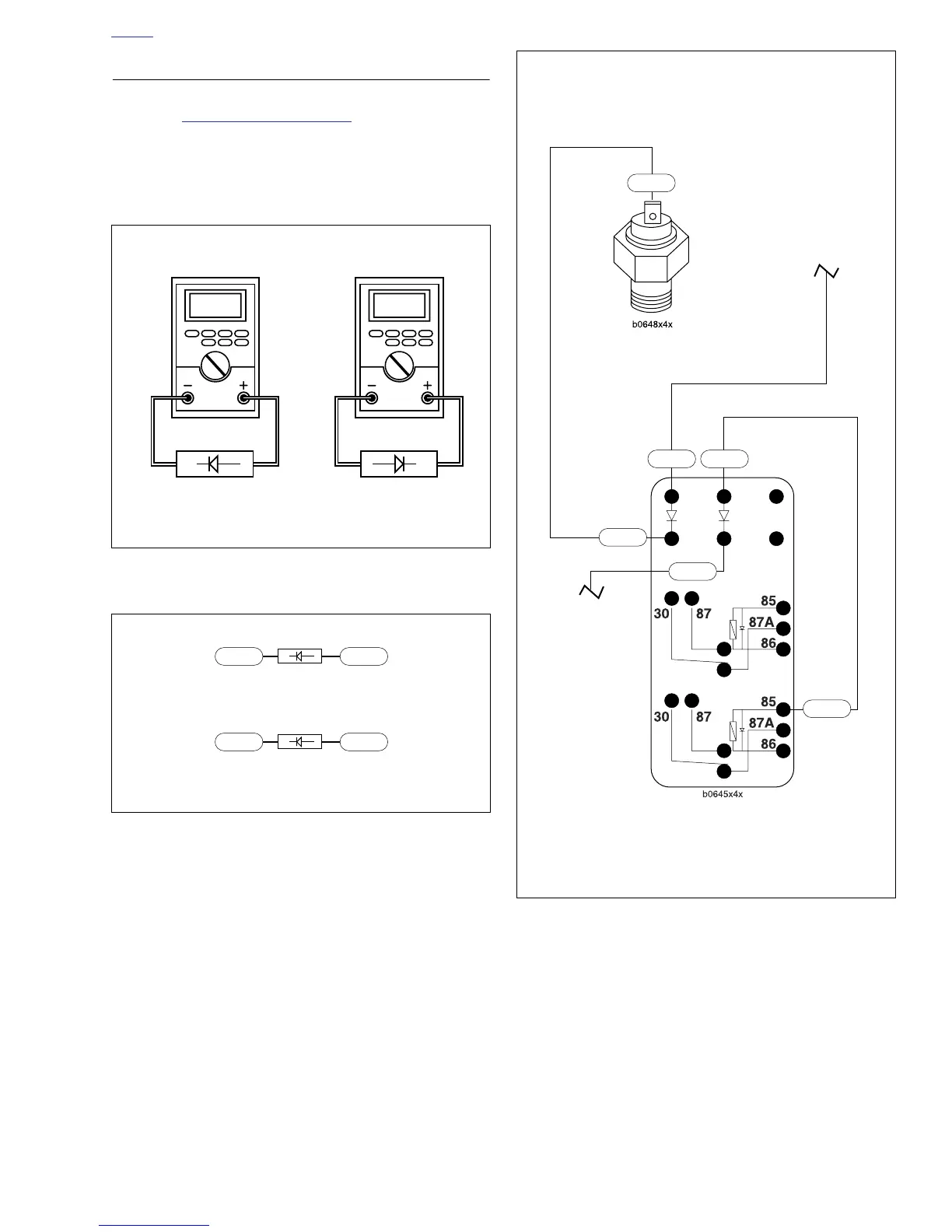

Figure 7-5. Ohmmeter Diode Test
Figure 7-6. Diode Polarity
Continuity Infinite
ohms
b0643x4x
b0644x4x
TN TN/GN
Diode 1 Polarity
TN/GN TN/W
Diode 2 Polarity
Figure 7-7. Diode Wiring
TN/W
TN/W
Relay Block
Diode 1
Diode 2
TN
Neutral
Switch
TN
TN/GN
To Clutch
Switch [95]
To Clutch
Switch [95]
TN/GN
Ignition Relay
b0648x4x
b0645x4x
