2002 Buell X1: Maintenance 1-27
HOME

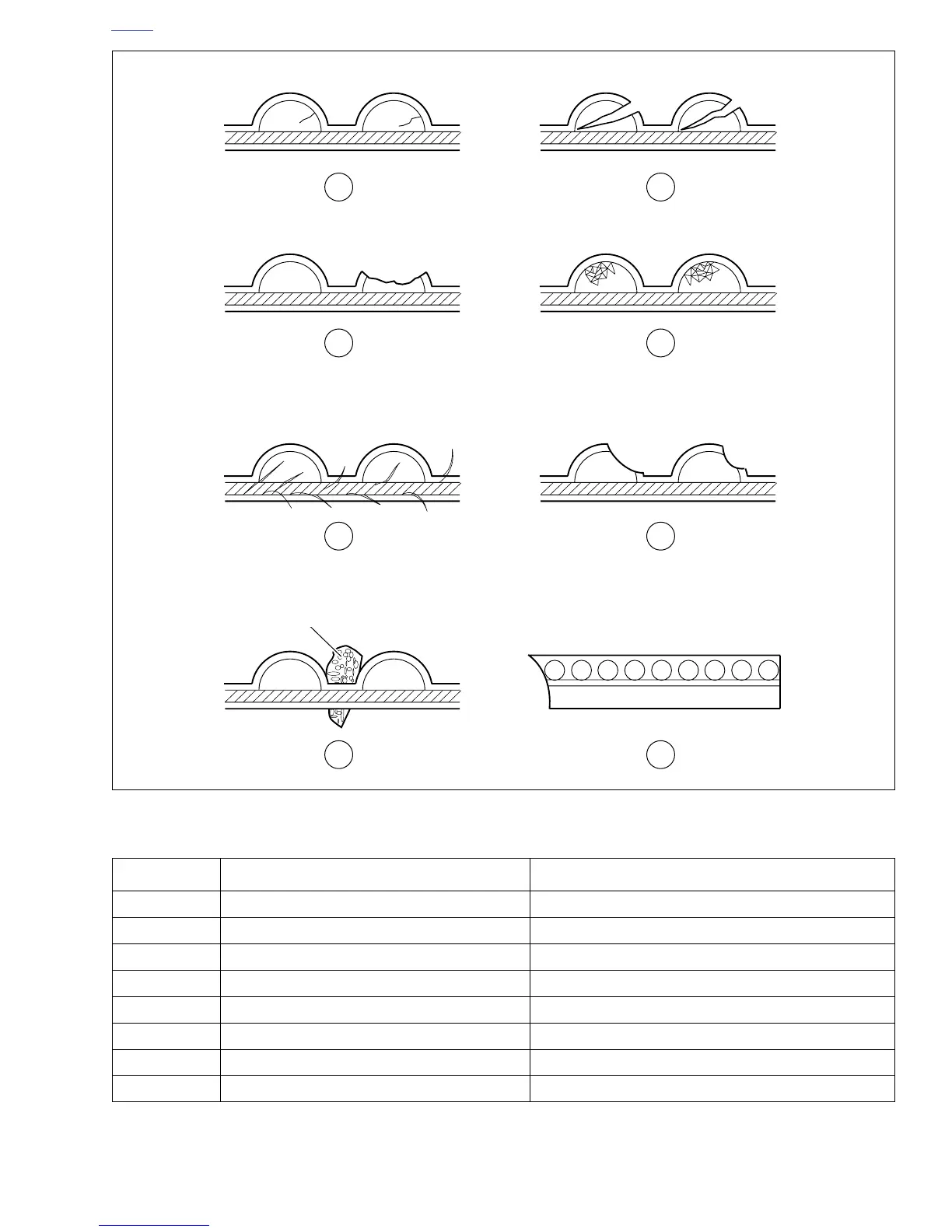

Figure 1-25. Drive Belt Wear Patterns
Table 1-6. Drive Belt Wear Analysis in Figure 1-25.
PATTERN CONDITION REQUIRED ACTION
1Internal tooth cracks (hairline) OK to run, but monitor condition
2External tooth cracks Replace belt
3Missing teeth Replace belt
4Chipping (not serious) OK to run, but monitor condition
5 Fuzzy edge cord OK to run, but monitor condition
6Hook wear Replace belt
7Stone damage Replace belt if damage is on the edge
8Bevel wear (outboard edge only) OK to run, but monitor condition
1 2
3 4
5 6
7 8
Stone
Cross-Section View
b0594x1x
Sprocket
Side of
Belt
