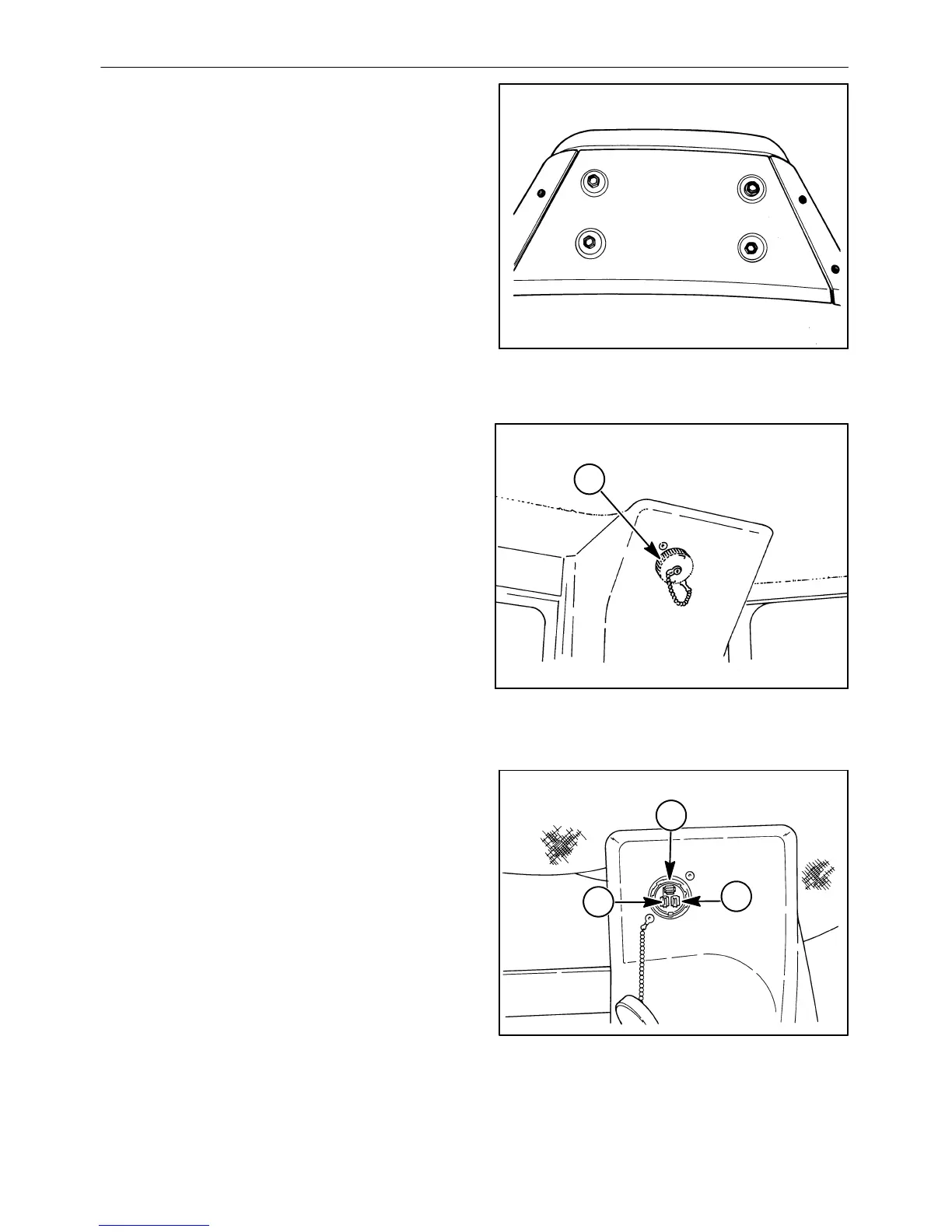

2. There are also four mounting bolt locations
directly above the dash so that a “Heads Up”
type monitor could also be located in front of
the operator.
Figure 1-43
3. The cab has a three-pin auxiliary connector,
1, located at the top of the right rear cab pillar
inside the cab.
Figure 1-44
1
4. The three-pin auxiliary connector has three
terminals inside of it. Pin, 1, is a switched
12-volt power source protected by a 20-amp
fuse. Pin 2 is an unswitched (live) 12-volt
power source protected by a 20-amp fuse.
The third pin, 3, is a ground pin.
Figure 1-45
2
1
3
