SECTION 1 - GENERAL INFORMATION
1-31

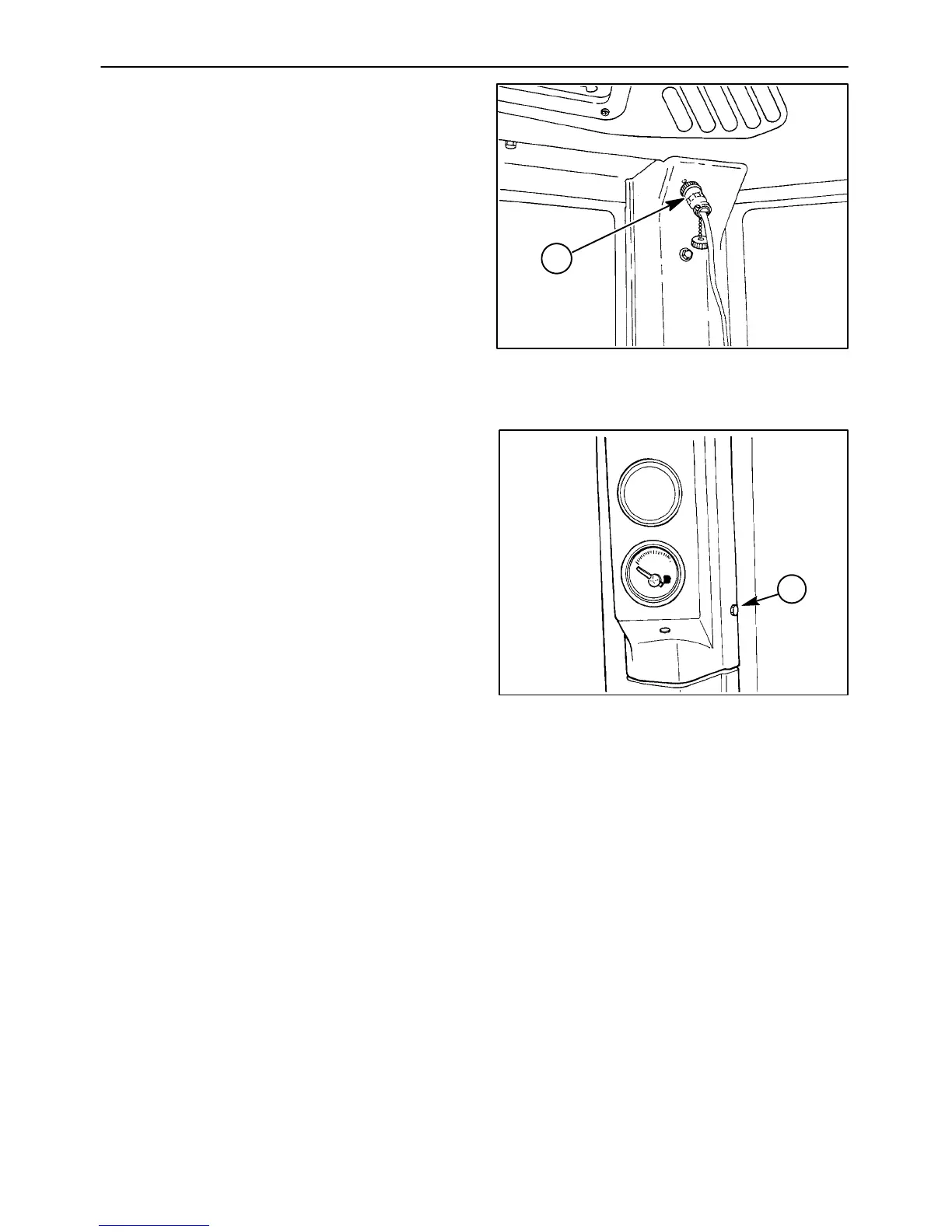

Buhler Versatile has a male connector, 1, that
will plug into the three-pin auxiliary connector.
It is available from your local Buhler Versatile
dealer using part #86032122. This number
will contain all parts necessary to install the
male connector. Please contact your Buhler
Versatile dealer for assistance in assembling
the connector. A special tool is required to
crimp the pins in the k it.
Figure 1-46
1
5. There is a secondary power source located
on a four-pin bus bar behind the cowling that
secures the fuel gauge. To access the four-pin
bus bar, remove the four cap screws, 1, that
secure the panel to the c ab post.
NOTE: The power source pins are
protected by a 10-amp and 3-amp fuse,
respectively. The pins may not be suitable
for use with an implement monitor (due to
electrical load the monitor requires) and
are intended for use with additional
gauges installed by the operator. It is
suggested that the 3-pin auxiliary
connector be used to power the monitor.
Figure 1-47
1
