10 START-UP
10.1 Teach function: Determine end positions and save
these, Rev. 2
• Automatic teach function: For devices with pilot valve
Theteachfunctionautomaticallyidentiesandsavestheendpositionsofthevalve.
• Manual teach function: For devices without pilot valve
The end positions are captured and saved automatically.
10.1.1 Automatic teach function
For devices with pilot valve:
Theteachfunctionautomaticallyidentiesandsavestheendpositionsofthevalve.
With the IO-Link variant, the teach function can also be started with an acyclic IO-Link parameter (see
parameter list) or with the Bürkert Communicator.
With the büS variant, the teach function can also be started with the Bürkert Communicator.
Essential requirements:
• The device is mounted on the actuator.
• The supply voltage is connected.
• The compressed air supply is connected.
• Sothatthecorrectreferenceconditionsareidentied,thepilotpressuremustcorrespondtotheoper-
ating conditions.
Body casing
Basic housing
Actuator
Transparent cap
Seal
(body casing)
Closing device:

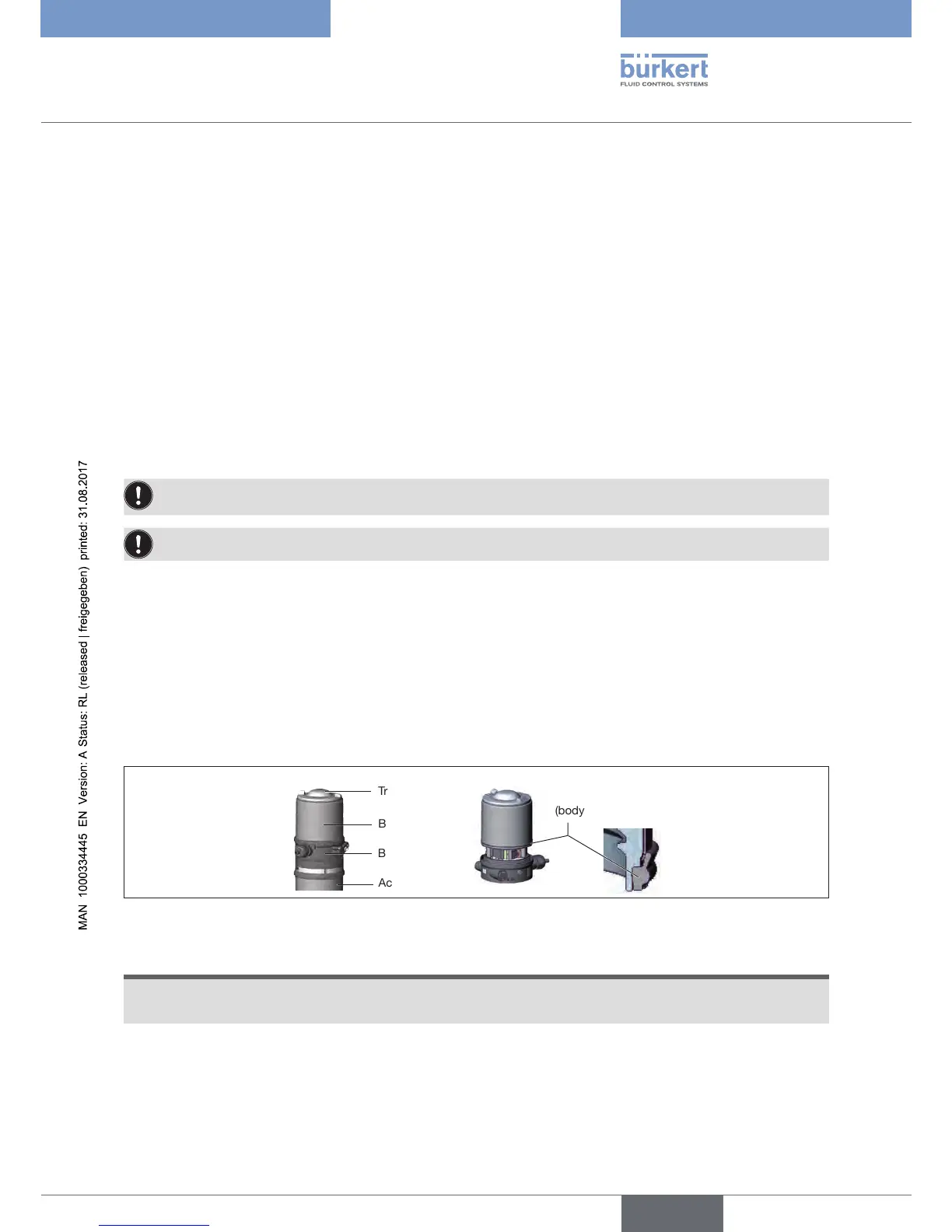

Figure 25: Opening or closing the device
NOTE
Breakageofthepneumaticconnectionpiecesduetorotationalimpact.
▶ When opening or closing the device, do not press against the actuator, but against the basic housing.
→ Screwothebodycasingbyturningcounterclockwise.
