4.13 Hydraulic hand pump (optional)
Special equipment:
Instead of with a hydraulic unit, the machine can also be
supplied with a hydraulic hand pump (1).
The hydraulic hand pump (1) is used to perform hydrau-
lic functions such as opening and closing the dosing
gate.
Also observe the supplied operating manual of the hand
pump.

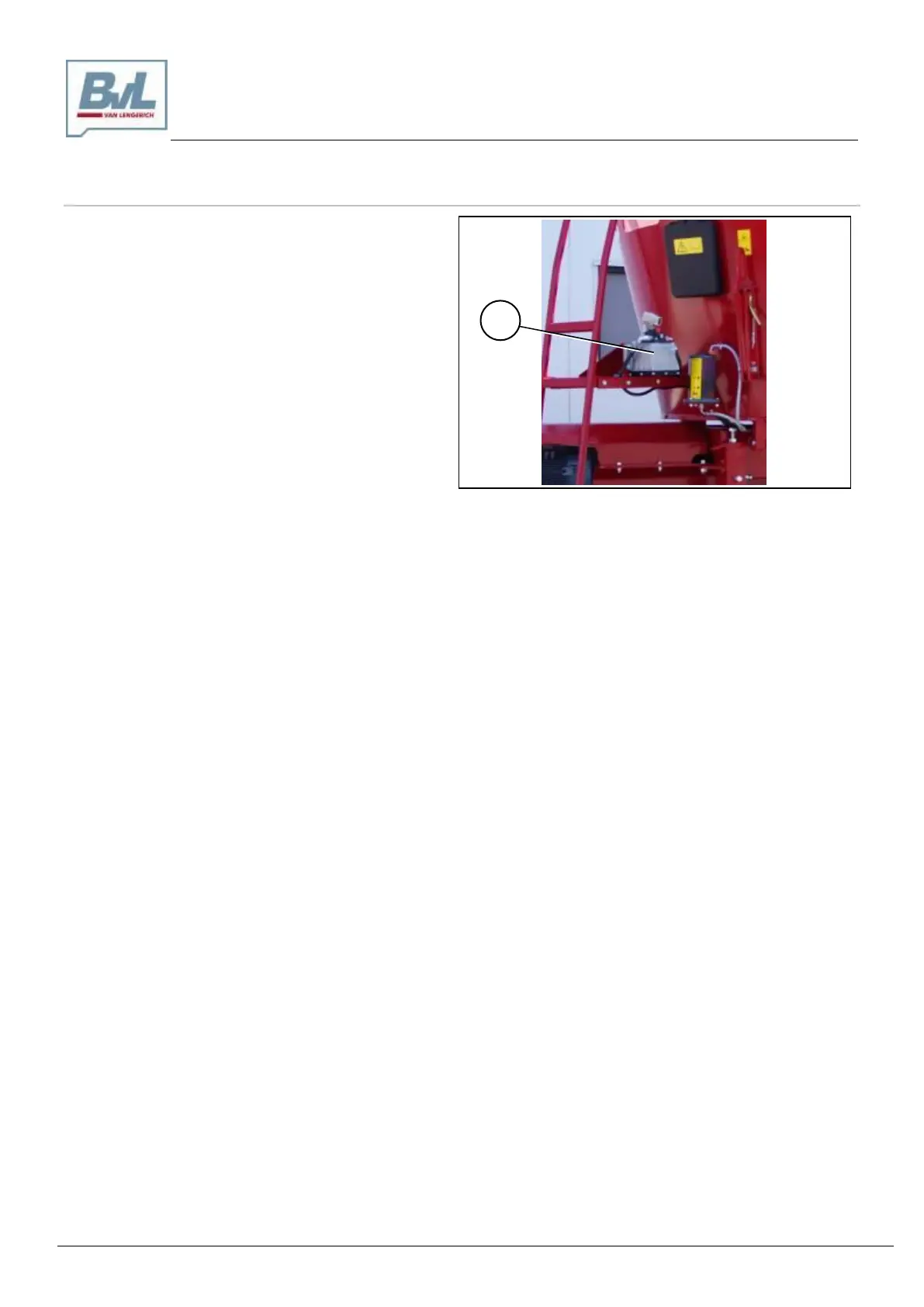

Fig. 4-24
1
