7.2.1 Lubrication points

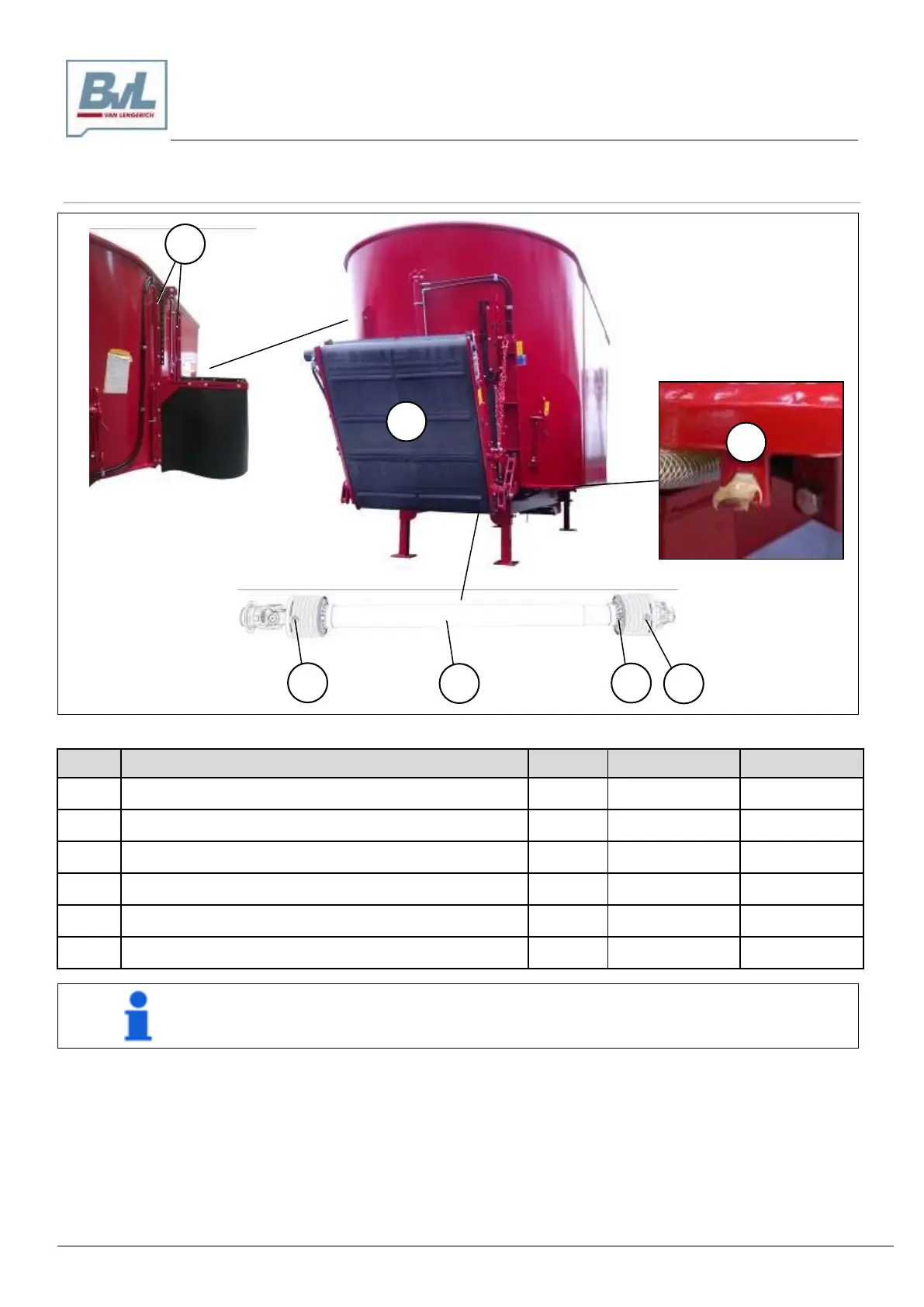

Fig. 7-1
Pos.
Component/location
Quantity
Activity
Time/Interval
1
Guide rail door
2
Greasing
100 h
2
Lubrication nipple on the conveyor belt (optional)
4
Lubricating
25 h
3
Upper planetary gear bearing lubrication nipple
1
Lubricating
250 h
4
Drive shaft Cardan joint
2
Lubricating
250 h
5
Drive shaft profiled tube
1
Lubricating
100 h
6
Drive shaft guard tube
2
Lubricating
100 h
Further information on how to lubricate the drive shaft can be found in the documents pro-
vided by the drive shaft manufacturer.
