BVL V-MIX Fix Plus - Operating Elements and Controls

Design and function
52
Translation of the Original Operating Manual
V-MIX Fix Plus
4.15.3 Operating elements and controls

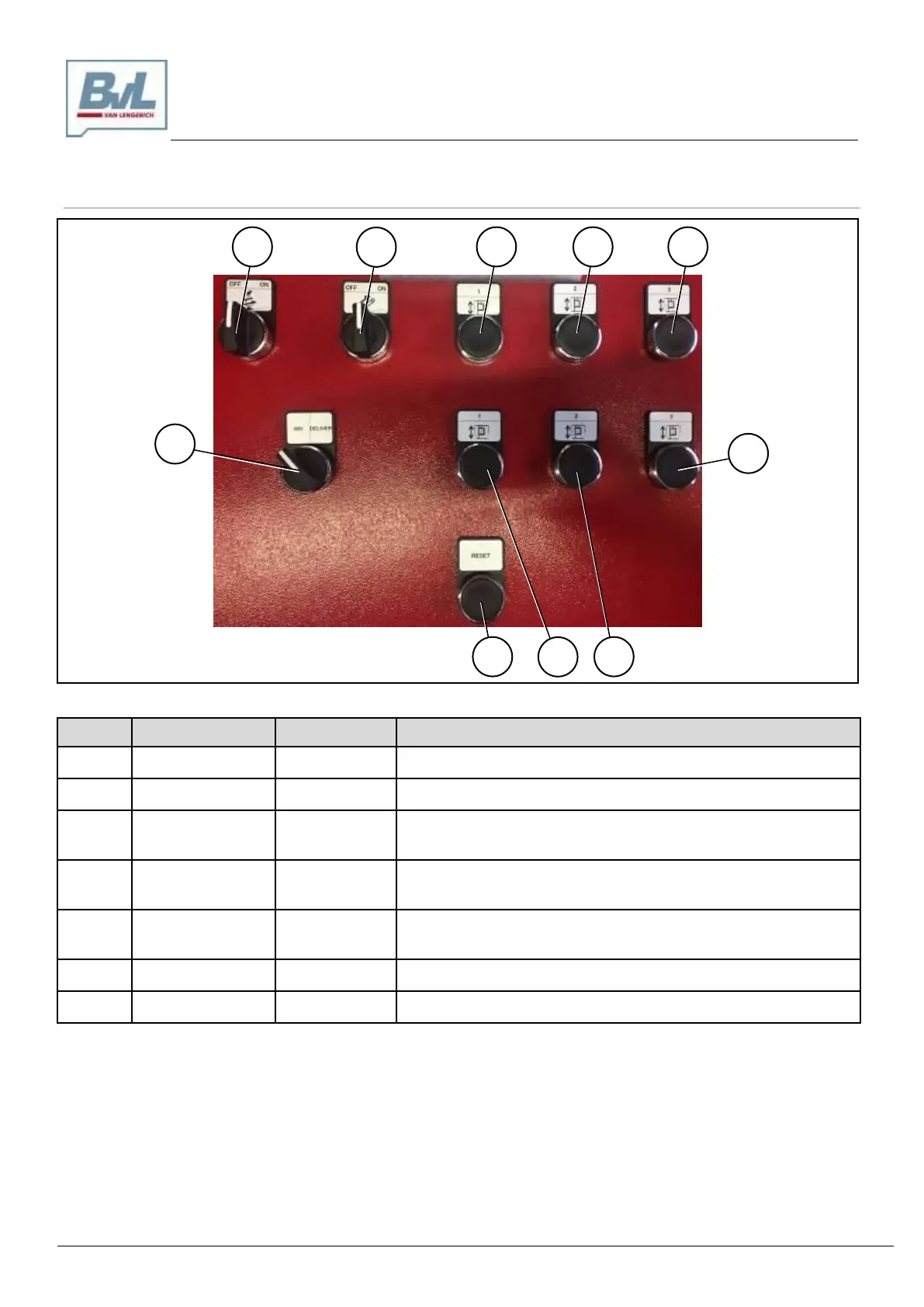

Fig. 4-29
Pos.
Control
Name
Function
1
Selector switch
-
Switch mixing auger on/off.
2
Selector switch
-
Switch conveyor belt on/off (optional).
3
Push button
1
Open the dosing gate.
To execute this function, you must press and hold the button.
4
Push button
2
Open the dosing gate.
To execute this function, you must press and hold the button.
5
Push button
3
Open the dosing gate.
To execute this function, you must press and hold the button.
6
Push button
Reset
Reset alarm.
7
Selector switch
-
Preselect mixing process.
5
7
6
1
2
3
4
5
4
3
