DEDICATED MONITOR CONTROLS
A subset of monitoring controls can
be accessed on the Global Control
Panel.
This panel features hard controls for main
loudspeaker level, Dim, Cut and Stereo.
The left hand button cell display above
the Level control shows the control room
monitor level.
In the two control cells to the left are the
master AFL and PFL level controls, small
loudspeaker level control with changeover
switch, and a control to vary the amount of
attenuation applied by the dim function.
In the two control cells to the right are
level controls for the 6 Misc Mon outputs
or the TB/RTB levels. The selection of
what appears in those cells is determined
by the ‘Misc Mon TB’ In the right hand
button cell display above the Level control.
The MON SEL button cell bottom left
allows the user to listen to any of the
four control room monitor pre-selectors.
The pre-selectors cannot be defined on
this dedicated monitor panel, this must
be done in monitor mode using the Pre
selectors.
The TB GROUPS button cell bottom right
allows the user to talk to any of the four
Talkback Groups set up in monitor mode.
Eight general purpose buttons and
indicators are located at the bottom of
this panel for customer use.
The configuration and operation of these
is described in the section External
Interfacing, see “Monitor Panel Customer
Switches” on page 170.
Note these controls are also available on
the Fader/Monitor panel see “Monitoring
on Fader/Monitor Panel” on page 123.

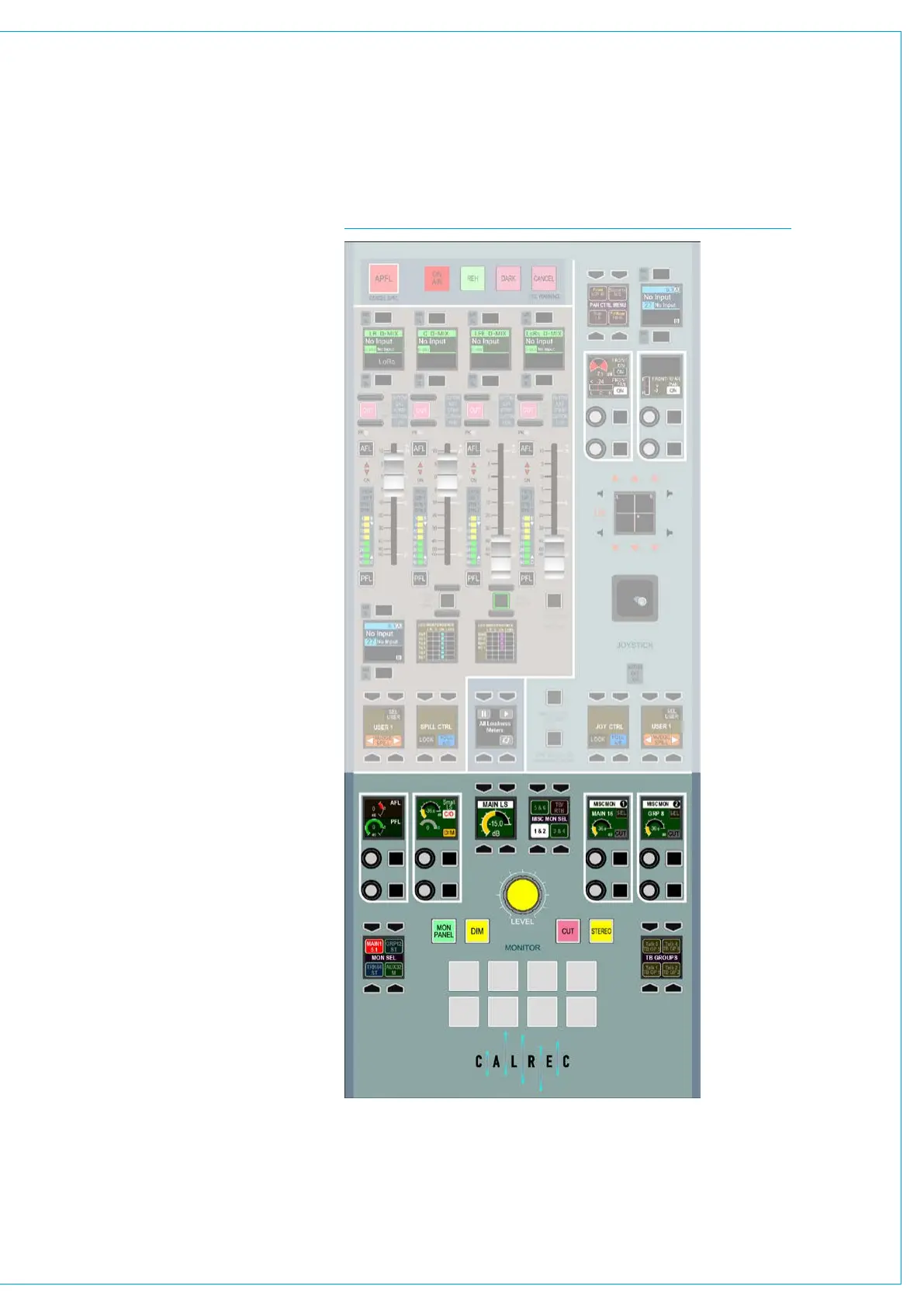

FIG 1 - ARTEMIS SPILL-JOYSTICK & MONITOR CONTROL PANEL
