158 ARTEMIS Digital Broadcast Production Console Shows, Memories and Presets
Fig 2 on the previous page illustrates this.
The MEM ISO function on the first three
faders have been activated. These faders
have been highlighted to indicate that they
will not be altered by any memory load
operations.
Setting scope of path memory
isolation
Isolating a path does not necessarily
mean that all settings associated with the
path are isolated. It is possible to only
isolate the EQ settings on a certain path,
just the EQ and input settings, or maybe
all or some of its routing.
To set the scope, press the LAYER
TOOLS button on the modes row. This
will update the row above as shown in
Fig 3. Now press the button above the
MEM ISO graphic on the modes row.
This will set the fader area above it into
memory isolate mode as shown in Fig 4
(apart from the mode title, the TFT screen
appears blank in this mode).
The lower two rows of control cells on the
fader area will now display the elements of
the path which can isolated. They relate
to the currently assigned path. These
elements may vary depending on the type
of path assigned, for example input and
input port settings are not applicable to
groups.
Press the relevant button to toggle
the elements which should be isolated
when the assigned path is isolated.
The selected elements will illuminate.
The SET ALL ISOLATES and CLEAR
ALL ISOLATES buttons in the button
cells below switch all elements on or off
respectively.
The PART ISO button in the button cells
toggles partial memory isolation on or off
for the assigned path. When a path has
been partially isolated, the ISO button next
to the fader will illuminate green instead of
the fully isolated blue colour.

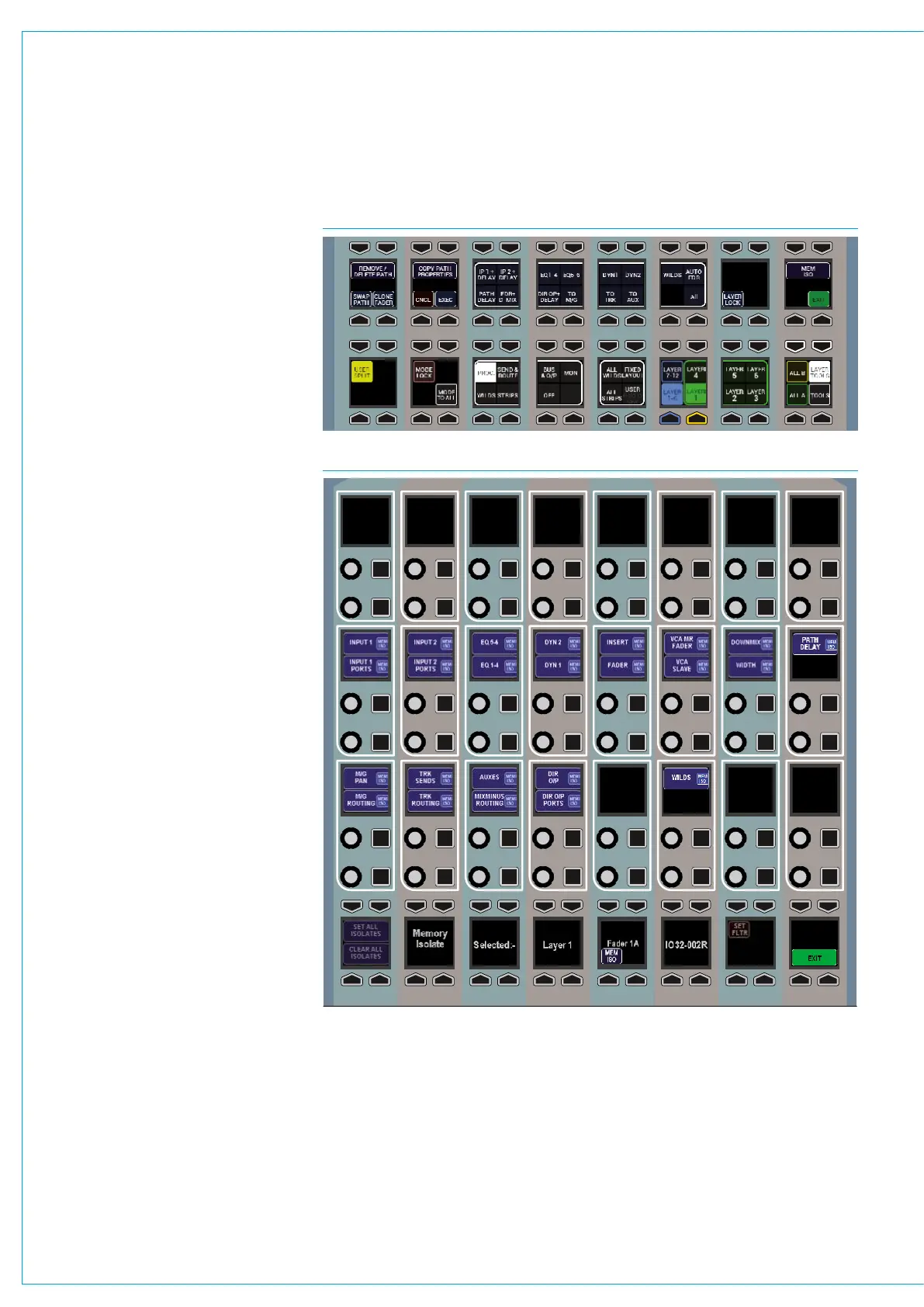

FIG 4 - MEMORY ISOLATE MODE
FIG 3 - ACCESSING THE SCOPE OF THE MEMORY ISOLATE FUNCTION
