The monitoring functions on the
alternate Fader/Monitor panel are
highlighted in Fig 1. on the top right
hand side of the panel.
The controls are arranged in 2 columns:-
The left hand column contains:-
Misc Monitor or Talkback/Remote
Talkback controls. The MISC TB MON
button cell selects the two control cells
above to show either:- Misc Mons 1 & 2,
Misc Mons 3 & 4 or TB and RTB 1,2&3.
Each misc mon output control has a
rotary control for altering the level of the
output and a dim button. The control cell
display shows the name, the width (M,
ST, 5.1) and name of the elected source
and indications of the output level and
dim status. The TB and RTB controls just
have a rotary control for level. An addition
to this cell for this panel is the Mon2
CRLS button which changes the large
main Monitor control below between Mon
1 CRLS and Mon 2 CRLS.
The right hand column contains:-
AFL Trim and PFL level control cell
Small LS level with Large/Small LS C/O
switch and Dim level/switch control cell.
Below these is the MON SEL button cell
which provides upto 4 different monitor
source selections for frequent use.
At the bottom of the monitoring section is
the large Main LS monitor rotary control
with level display, a large Stereo Downmix
button and large CUT and DIM buttons
which illuminate when active.
Just to the left of the main monitor control
below the joystick panning are eight
general purpose buttons and indicators
are located at the bottom of this panel for
customer use.
The configuration and operation of these
is described in the section External
Interfacing, see “Monitor Panel Customer
Switches” on page 170.

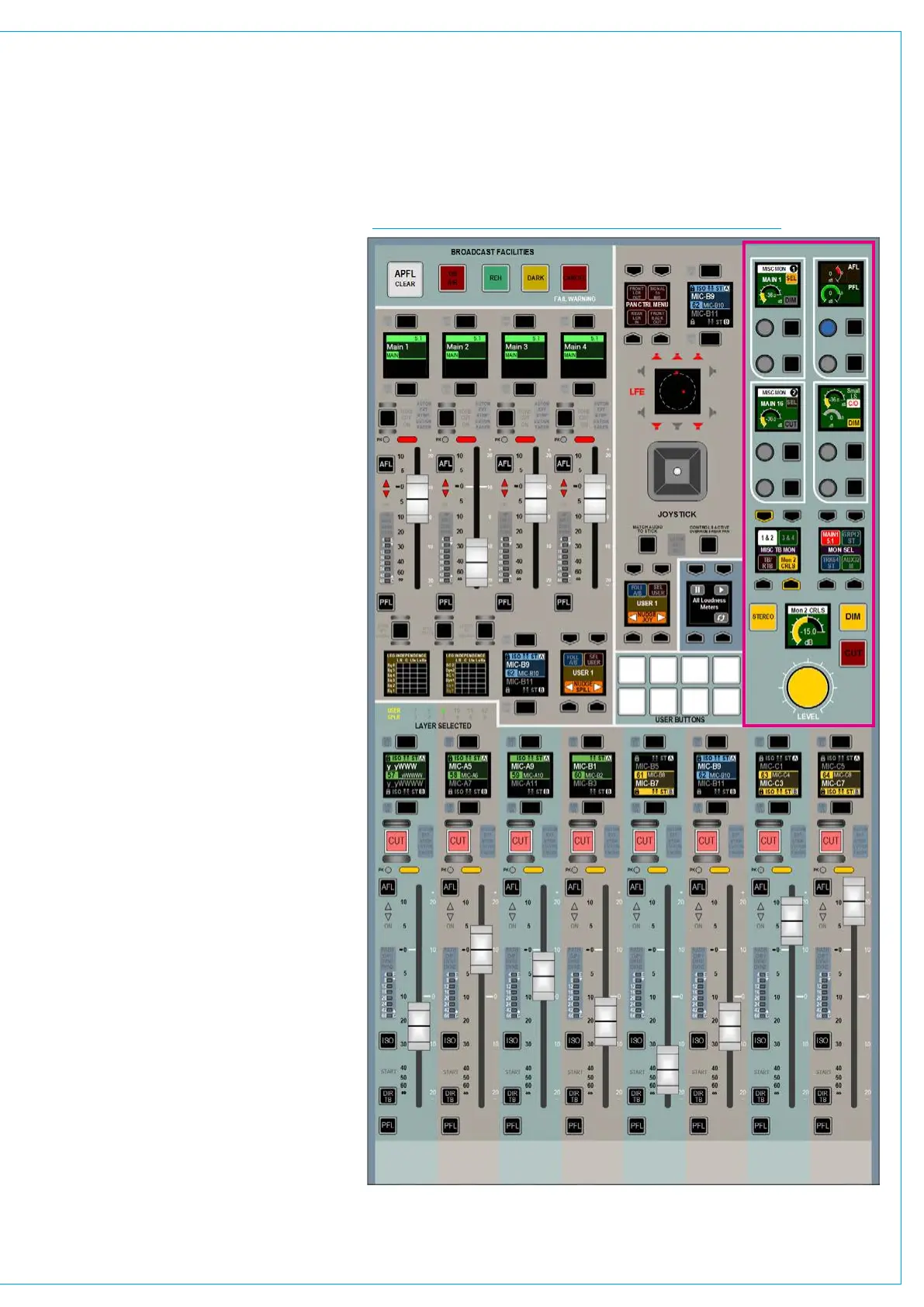

FIG 1 - MONITORING ON ARTEMIS FADER/MONITOR PANEL
MONITORING ON FADER/MONITOR PANEL
