114 TYPE R Radio Production System AoIP Network Examples

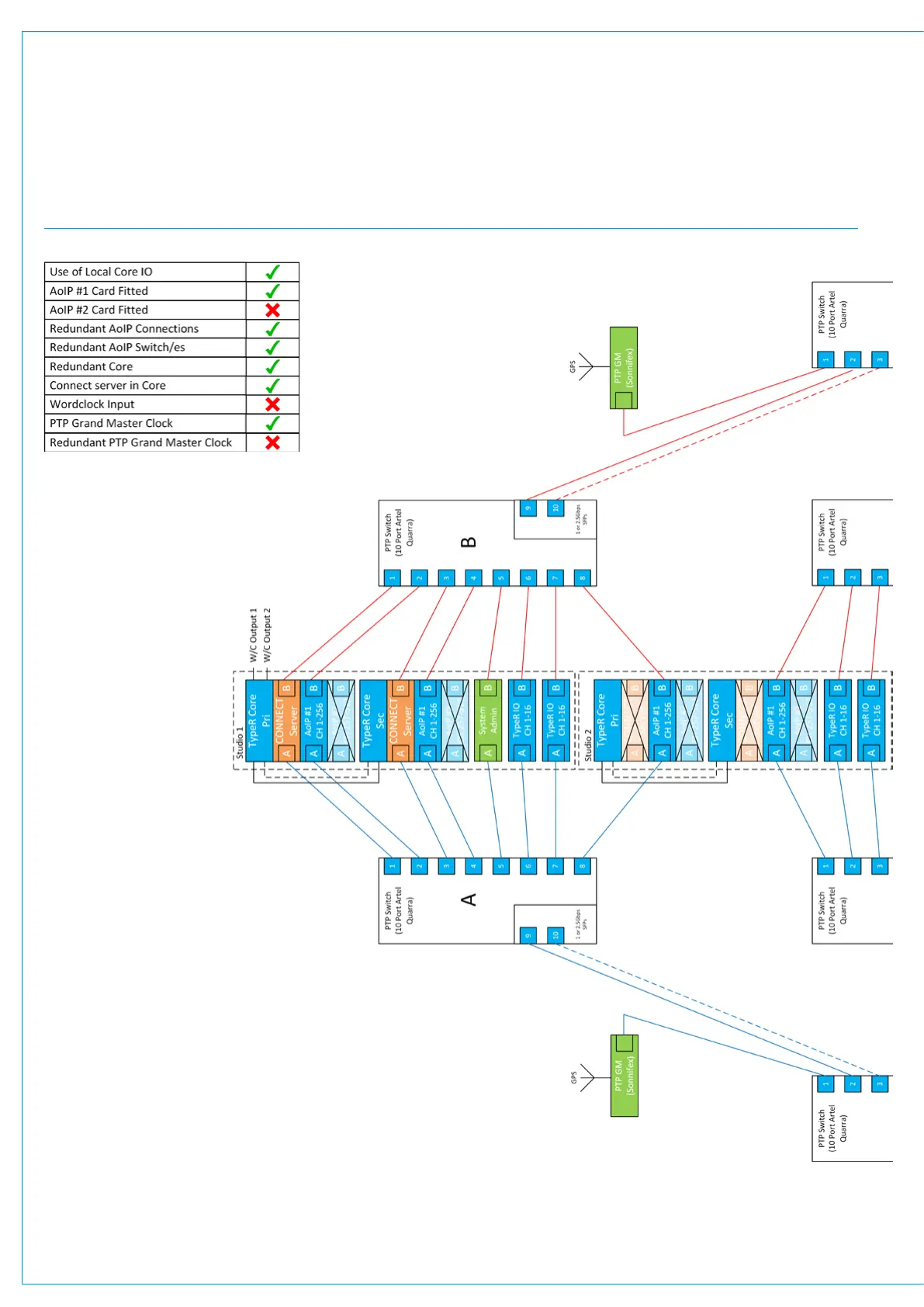

EXAMPLE 11: 4 STUDIOS REDUNDANT CORES WITH LOCAL I/O + 8 AOIP BOXES ON 8 REDUNDANT PTP SWITCHES
I/O Note:
In the event of a Redundant (Secondary) Core
takeover, any I/O connected to the Primary Core
local I/O will not be available on the Redundant
(Secondary) Core.
For I/O signals where redundancy is required we
recommend the use of networked Type R I/O
Boxes.
To Next Page
