52 TYPE R Radio Production System Fixing Bracket Assembly Instructions
Assembly - See Fig 4 & 5
Tools required (not supplied)
7mm adjustable/spanner/wrench open
ended.
PZ2 screw driver/ bit.
Wood screws.
Saw.
Mounting Procedure
Mark out and cut hole in desk surface to
accommodate Fader Panel 391mm (15.4in)
x 247mm (9.7in).
Ensure sufficient clearance for
brackets (item 2) from any other items
on the underside of desk and cable
protrusion from RJ45 connector..
Loosely attach under desk brackets
(Item 2) to bracket (Item 1) with 4 x M4
nuts (Item 5) and washers (Item 6) as
required for desk thickness, mounting
options a), or b). Refer to Fig 2 & 3.
Align holes in bracket (Item 1) with Fader
Panel and attach stand using 4 x M4
screws (Item 4) with washers (Items 3 & 6).
Note plain washer should be nearest
bracket.
As shown Fig 5.
Fitting to desk/surface
Offer up the Fader Panel through the hole
in desk from the underside.
Fix brackets (item2) to underside of desk
with 4 screws (not supplied) suitable for
desk surface.
Push up Fader Panel from underside until
Fader Panel is flush with surface and
tighten 4 x M4 nuts (Item 4).
Do not over tighten. Typically 1Nm.

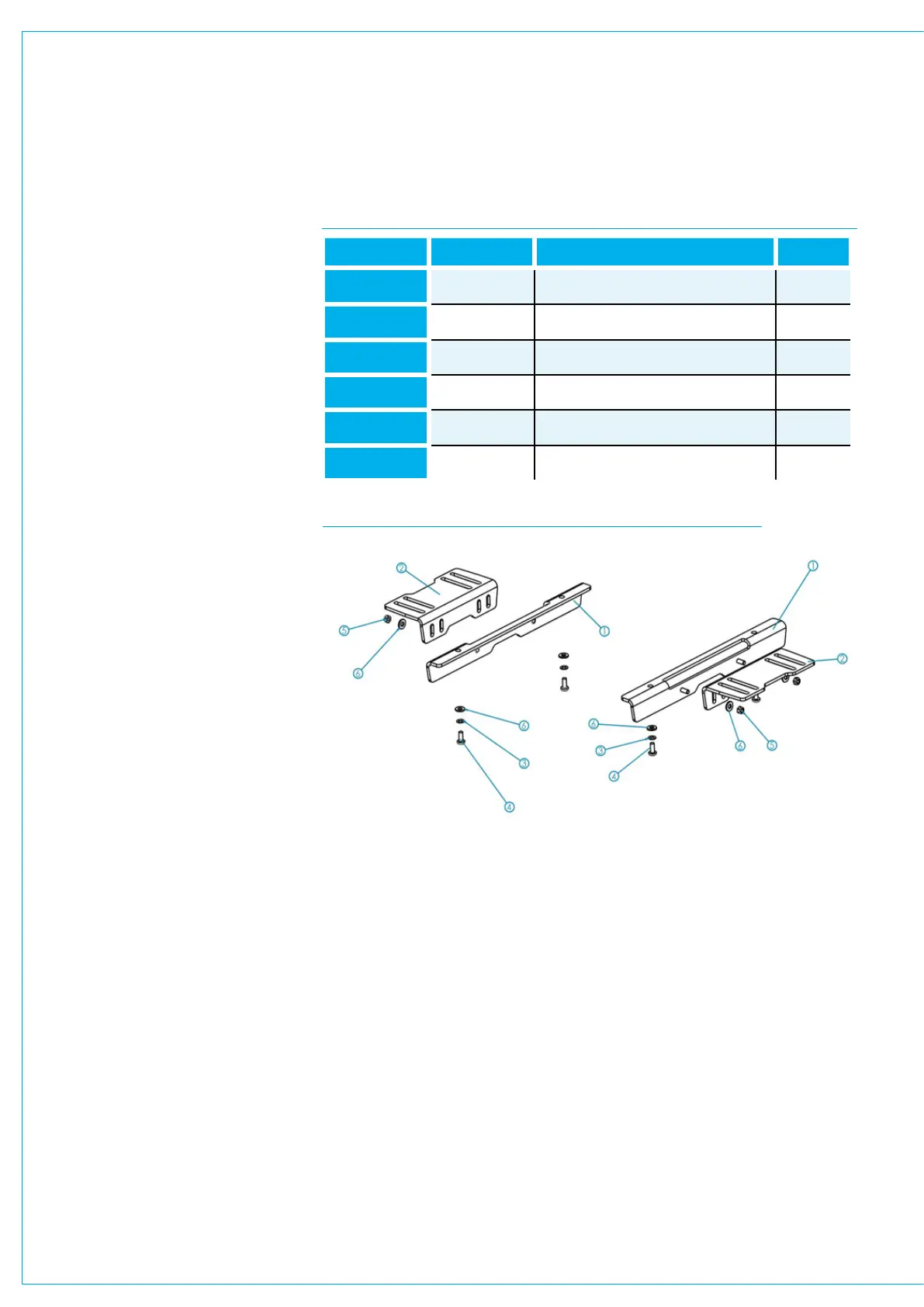

FIG 4 SUPPLIED PARTS TABLE
FIG 5 FADER BRACKET MOUNTS & UNDER DESK BRACKETS
Item Number Part Number Description Quantity
1 730-030 Fader Bracket Recess Mount 2
2 730-033 Under Desk Bracket 2
3 370-008 Washer M4 Internal lock 4
4
350-043 M4x10mm Pozi Pan 4
5 360-124 Nut M4 Nyloc 4
6 370-007 Washer M4 Plain 8
