INSTALLATION
INSTALL THE CONDUIT
Check the national and local building codes before installation. The instructions and
illustrations in this manual are examples ONLY. Your installation may vary depending
on space, obstructions, and accessories. It is up to the installer to select the most
suitable solution.
1

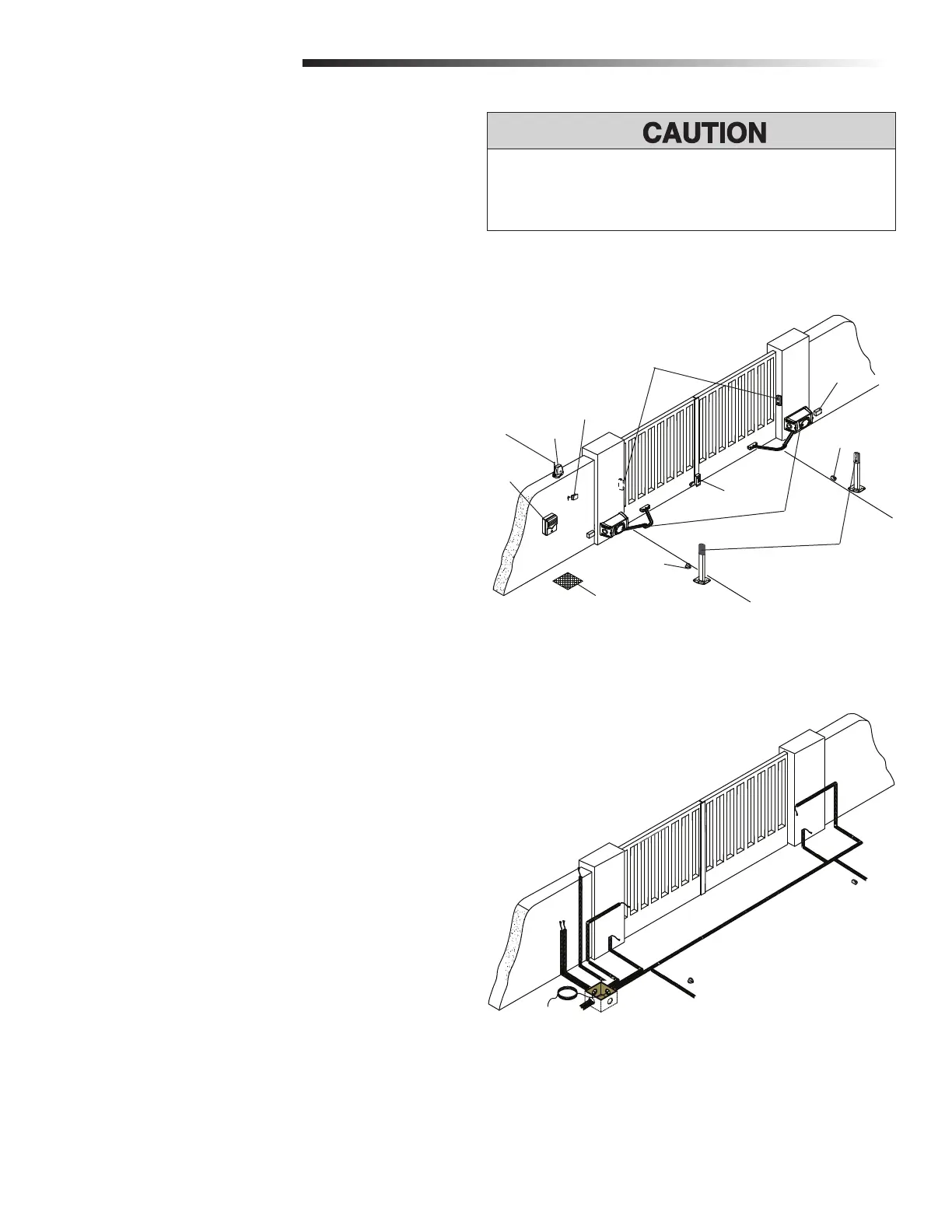

Determine the location for the operator and any accessories (Figure 1).
2
Prepare a trench and install the junction box and electrical conduits
(Figure 2).
NOTE: ALL power and control wiring MUST be run in separate conduit. The
number of conduits will depend on your site and the accessories to be
installed.
INSTALL THE CONDUIT
To AVOID damaging gas, power or other underground utility lines, contact
underground utility locating companies BEFORE digging more than 18 inches
(46 cm) deep.
Figure 1
Figure 2
Control
Panel
Antenna
Flashing Light
Key-switch Selector
Photoelectric Sensors
Junction Box
Operator
Mechanical Stop
Mechanical Stop
Electric Lock
Junction Pit
Photoelectric
Sensors
