INSTALLATION

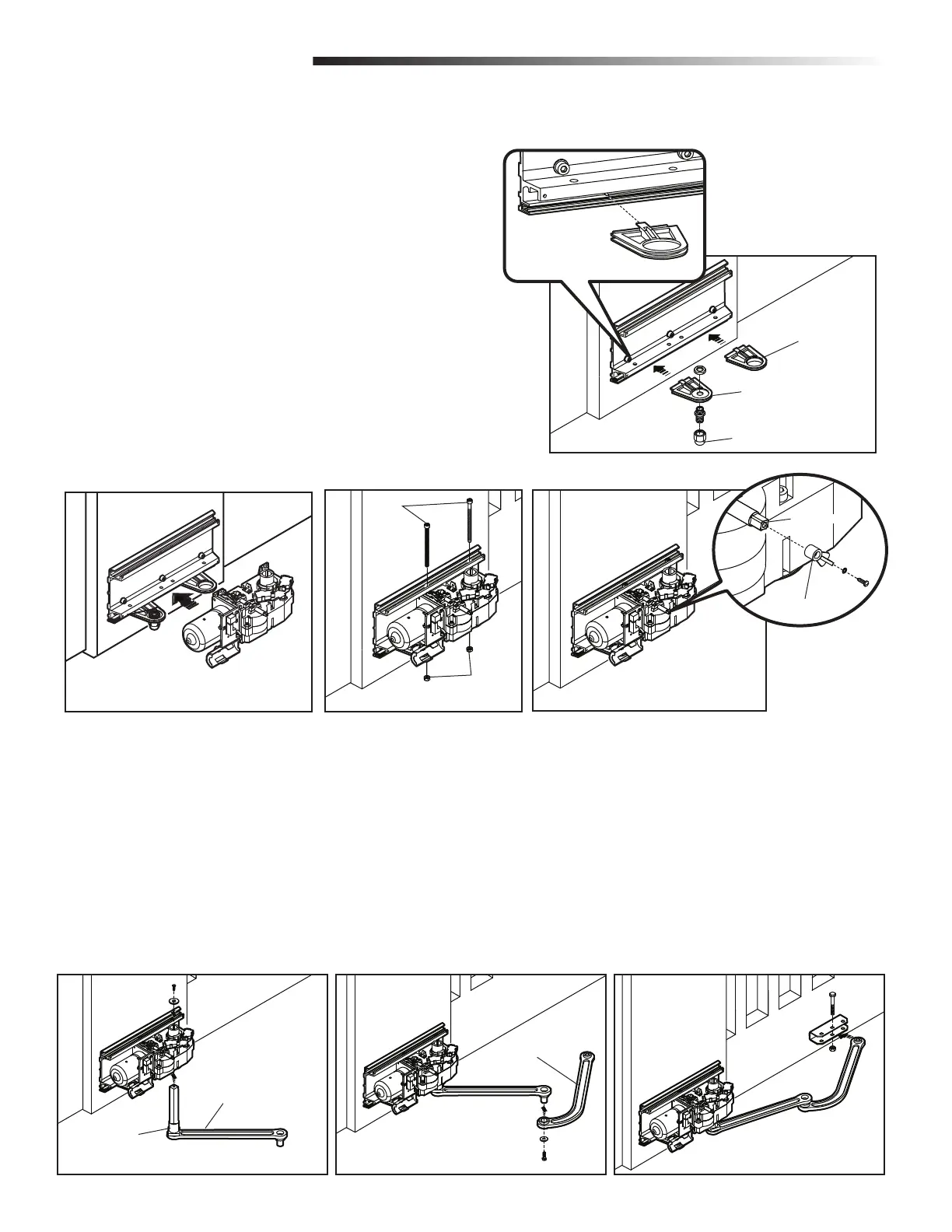

INSTALL THE OPERATOR
The following steps are for a right hand installation. For a left hand installation the
operator is installed upside down.
1
Insert the side supports into the pillar bracket. One side support is for the
power cable, the other side support is for the transmission arm (Figure 1).
2
Insert a watertight connector into the hole on the side support for the power
cable as shown (Figure 1).
3
Slide the operator onto the pillar bracket (Figure 2).
4
Secure the operator to the pillar bracket with the provided hardware
(Figure 3).
5
Place the manual release lever on the release shaft and secure with screw and
washer (Figure 4). The illustration shows a left-hand installation, a right-hand
installation will look slightly different.
6
Release the operator by turning the release lever clockwise.
Figure 1
INSTALL THE OPERATOR + INSTALL THE OPERATOR ARM
ASSEMBLE THE TRANSMISSION AND DRIVE ARMS
1
Insert the plastic spacer onto the transmission arm (Figure 1).
2
Insert the transmission arm into the motor shaft and secure with the provided
washer and screw (Figure 1).
3
Attach the drive arm to the transmission arm using the provided washer and
screw (Figure 2).
4
Attach the drive arm to the gate bracket using the provided nut and bolt
(Figure 3).
Figure 1
Figure 2
Figure 3
Transmission Arm
Drive Arm
Side Support - Power Cable
Side Support - Transmission Arm
Watertight Connector
Figure 2 Figure 3 Figure 4
Release Shaft
Manual Release Lever
Screws
Nuts
Plastic Spacer

CAME FERNI Specifications

General

Max Gate Weight	800 kg
Power Supply	230 V AC
Motor Power	300 W
Operating Temperature	-20°C to +55°C
Protection Rating	IP54
Duty Cycle	30%
Maximum Leaf Weight	800 kg
Safety Features	Obstacle detection
