CAME FERNI User Manual

7
OPERATOR SPECIFICATIONS
This model is intended for use in vehicular swing gate applications:
Gate Classifications: CLASS I
Main AC Supply: 120 Vac, 50/60Hz
Input Rating: 500 Watts at 120 Vac
Main Supply (Motor): 7.5 Amps at 24 Vdc
Maximum Torque: 320N
Cycle Time: 12 seconds 90 degree @100% speed
Gear ratio: 1/1152
Accessory Power: 24 Vac nominal Class II limited to 37W
Maximum Gate Weight/Length: 880 lbs. at 13 ft.
Maximum Opening: 110 degrees
Daily Cycle Rate AC power: 25 cycles/day
Ambient Temperature: -20°C to 55°C (-4°F to 131°F)
Fuse Protection Motor: 10 Amp
Fuse Protection Accessories: 2 A
Fuse Protection Control Board: 630 mA-F
Fuse Protection Electrolock: 3.15 A
Fuse Protection Line: 5 A
* The company CAME Cancelli Automatici is ISO 9001:2000 quality certified; it has
also obtained the ISO 14001 environmental safeguarding certification. CAME
engineers and manufactures all of its products in Italy.
This product complies with the following standards: UL-325 and CSA C22.2
NO.247-92.
INTRODUCTION
OPERATOR SPECIFICATIONS + CARTON INVENTORY
Control Panel

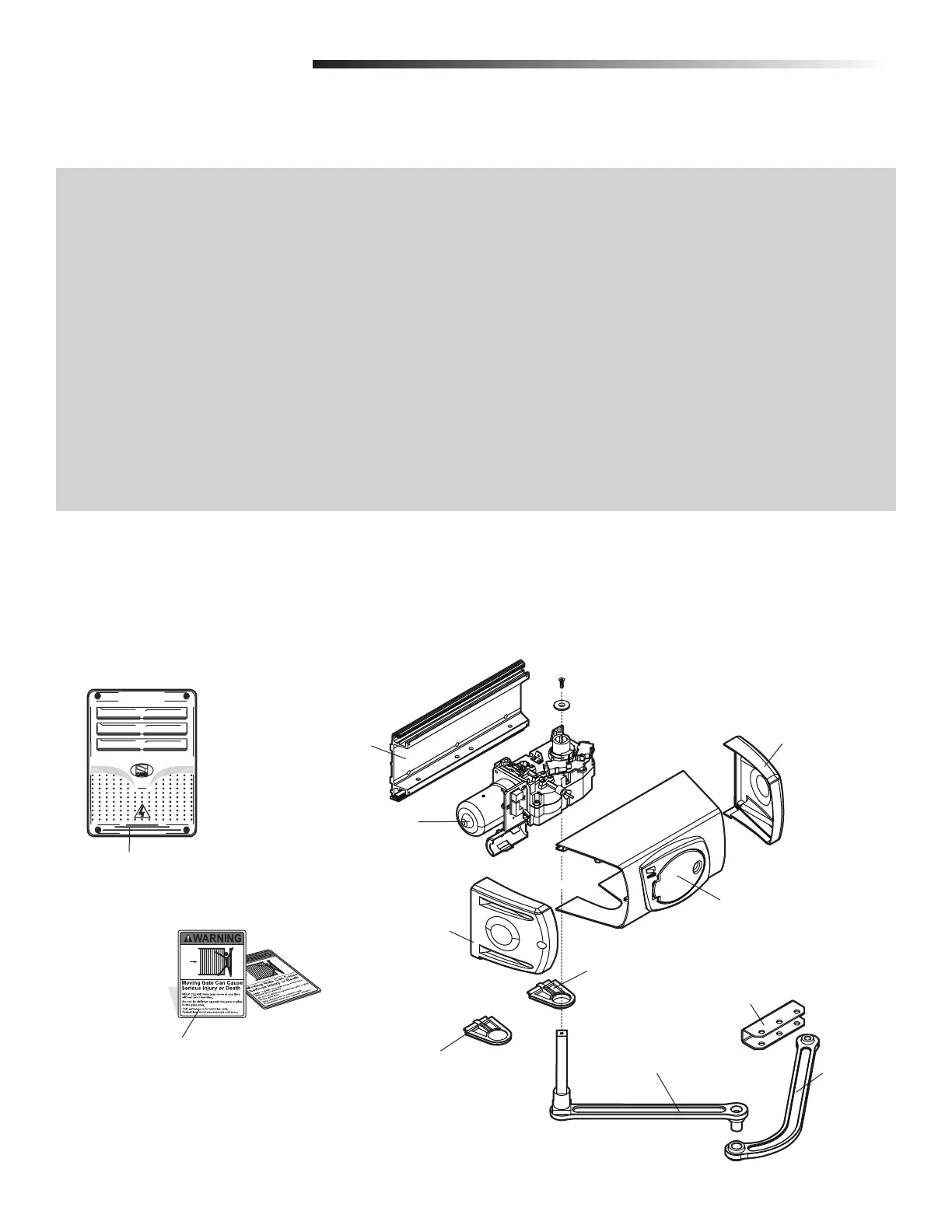

CARTON INVENTORY
NOT SHOWN: Hardware and manual
Pillar Bracket
Operator (Gearmotor)
Cover
Side Panel
Side Support -
Power Cable
Side Panel
Side Support -
Transmission Arm
Transmission Arm
Drive Arm
Gate Bracket
Warning Signs (2)

CAME FERNI Specifications

General

Max Gate Weight	800 kg
Power Supply	230 V AC
Motor Power	300 W
Operating Temperature	-20°C to +55°C
Protection Rating	IP54
Duty Cycle	30%
Maximum Leaf Weight	800 kg
Safety Features	Obstacle detection
