ADJUSTMENTS
MANUAL RELEASE + TEST PHOTOELECTRIC SENSORS
MANUAL RELEASE
The manual release allows you to manually open or close the gate. Manual release
operations need to be carried out during emergency procedures and with the power
disconnected.
Open the door with the customized key. To release the gearmotor, rotate the release
lever fully clockwise. To lock the gearmotor, rotate the release lever back to the
original position.
TEST PHOTOELECTRIC SENSORS
Each open/close command, the electronic card verifies the photoelectric
sensors are connected and working. Any problems with the photoelectric
sensors will cause the (PROG) LED to flash on the electronic card, which
cancels any commands from the remote control or push-button.
1

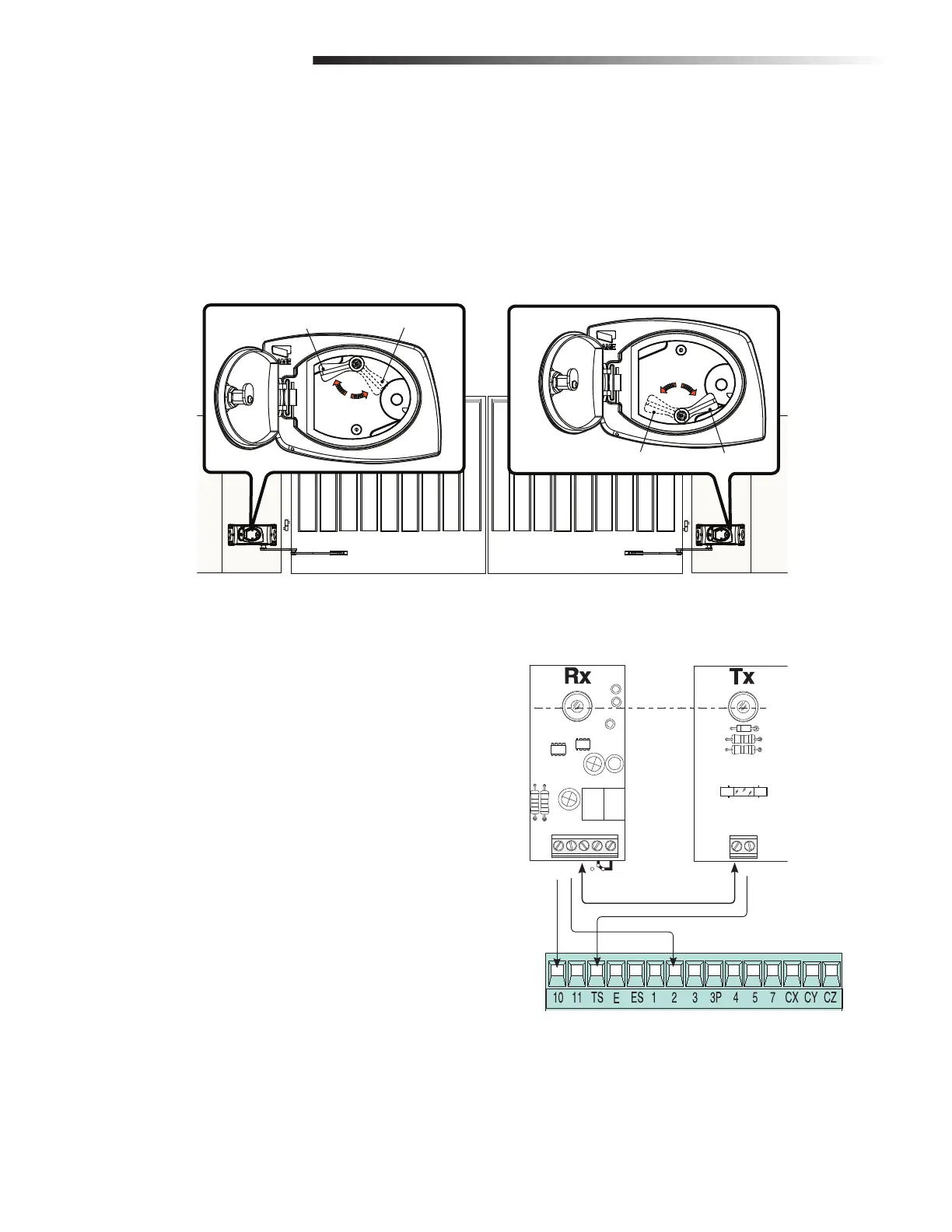

Electrical connection to operate the photoelectric sensors safety test:
• Connect the transmitter and receiver as shown in the diagram.
2
From the functions menu, select “Safety Tests” and select either CX - CY - CZ
inputs to activate the test.
&53)"),%M!
48
48
48
#
.#
DIR10 Photoelectric Sensors:
After all adjustments have been completed, attach the cover to the
operator with the provided screws.
RELEASE
LOCKING
RELEASELOCKING
Left-Hand Installation Right-Hand Installation
