INSTALLATION
ATTACH THE COVER
ATTACH THE COVER
1

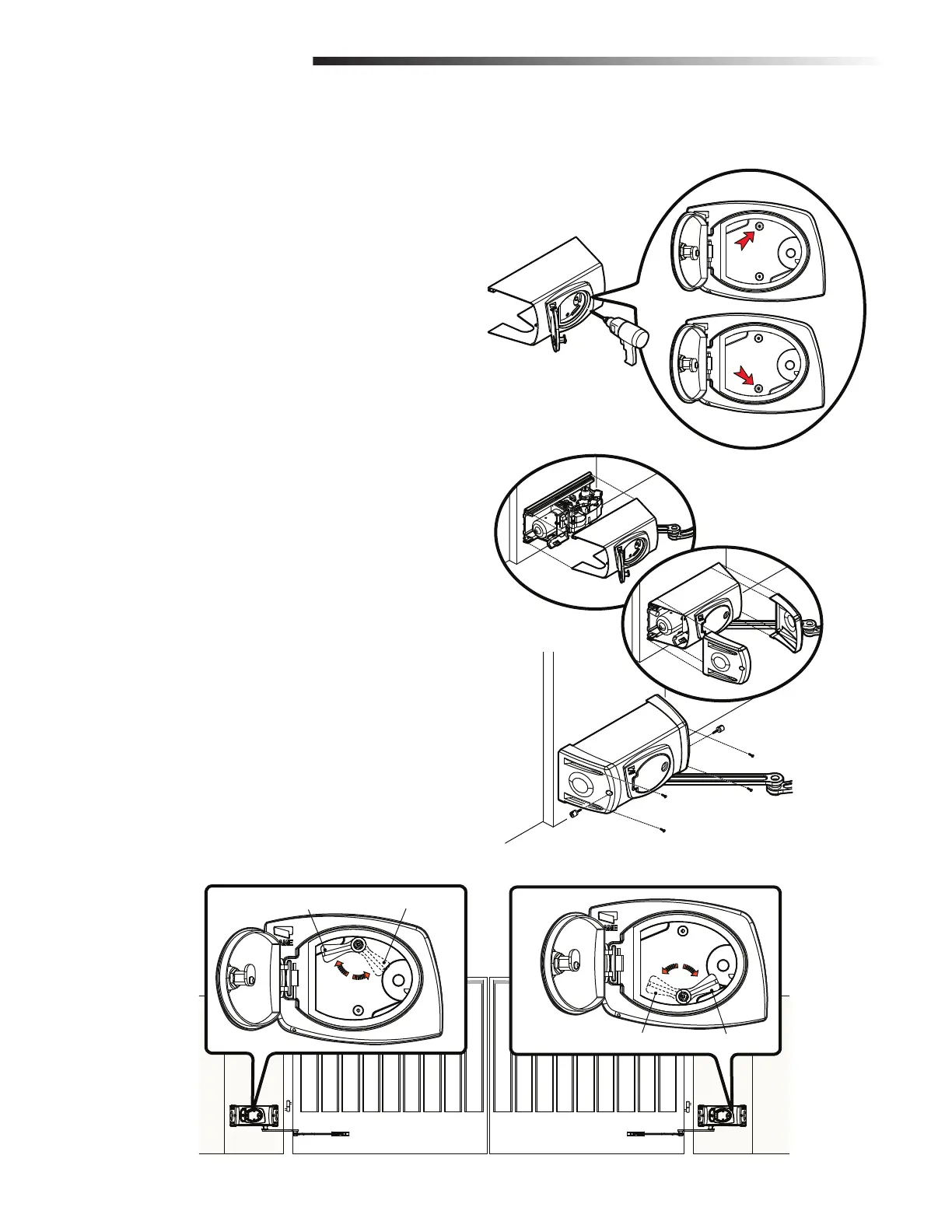

Drill a hole in the cover for the manual release lever as shown (Figure 1).
Remove the manual release lever from the release shaft on the gearmotor.
NOTE: Use a 1/2" drill bit.
2
Insert the cover on the pillar bracket (Figure 2).
3
Attach both side covers to the main cover (Figure 2).
4
Reattach the manual release lever to the release shaft.
5
Engage the operator by turning the release lever counter-clockwise (Figure 3).
Figure 1
Figure 2
Figure 3
Left-Hand Installation Right-Hand Installation
Left Gearmotor
Right Gearmotor
