CAME FERNI User Manual

15
INSTALLATION
MOUNT THE CONTROL PANEL
The control panel MUST be mounted within 5 feet (1.52 m) of the gate operator.
1
Attach the control panel to the mounting surface with cross slot Phillips head
bolts in a protected area (Figure 1).
2
Assemble the plastic hinges (Figure 2A).
3
Insert the hinge with the tabs into the slot along the side of the control panel
(on the left or right as you wish).
4
Secure the hinges with the washers and screws (Figure 2B). There should be
two hinges on each side.
5
Insert the other half of the hinge into the slots on the cover.
6
After the adjustments and programming are complete, attach the cover using
the provided screws (Figure 3).
MOUNT THE CONTROL PANEL
11.6
”
8.4”
tabs

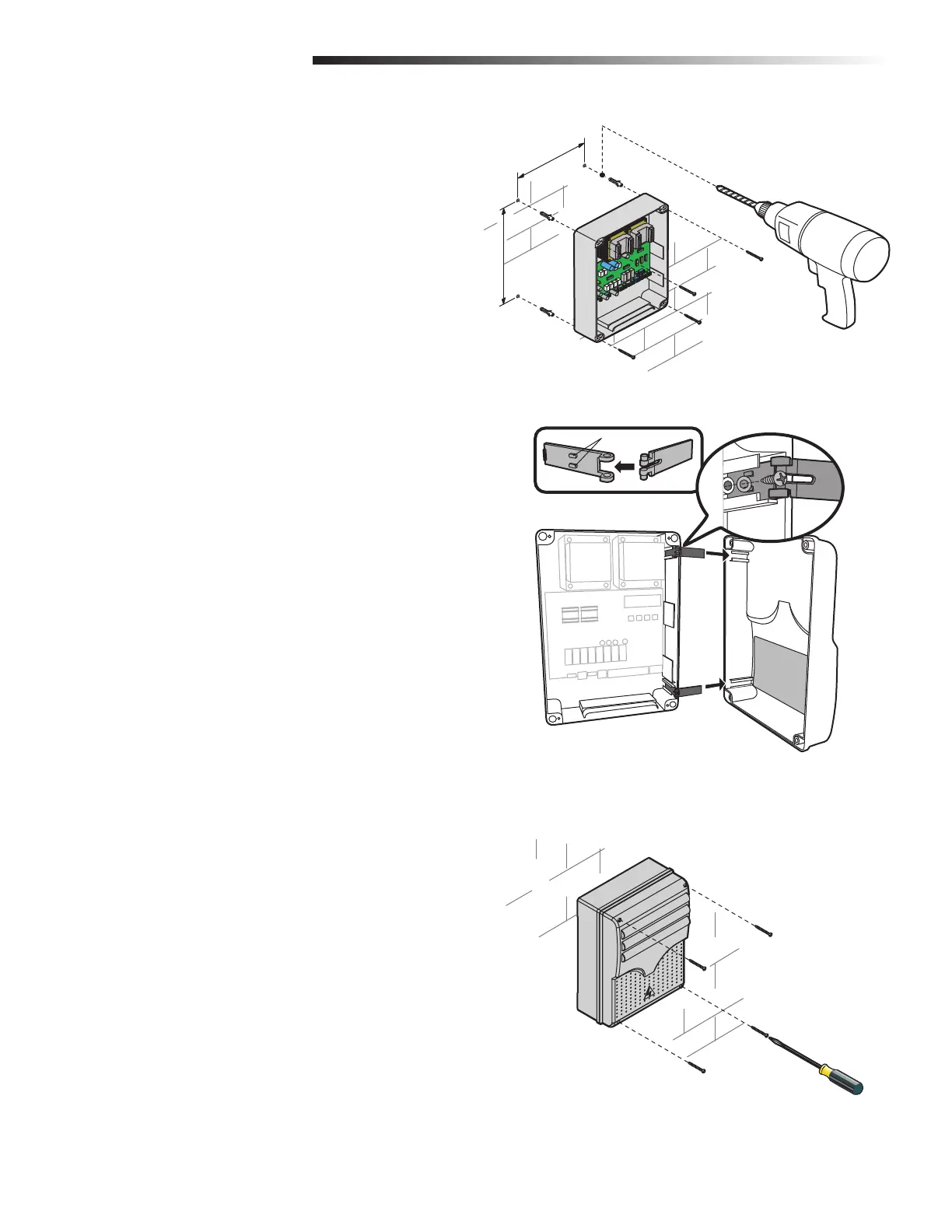

Figure 1
Figure 2A
Figure 3
Figure 2B

CAME FERNI Specifications

General

Max Gate Weight	800 kg
Power Supply	230 V AC
Motor Power	300 W
Operating Temperature	-20°C to +55°C
Protection Rating	IP54
Duty Cycle	30%
Maximum Leaf Weight	800 kg
Safety Features	Obstacle detection
