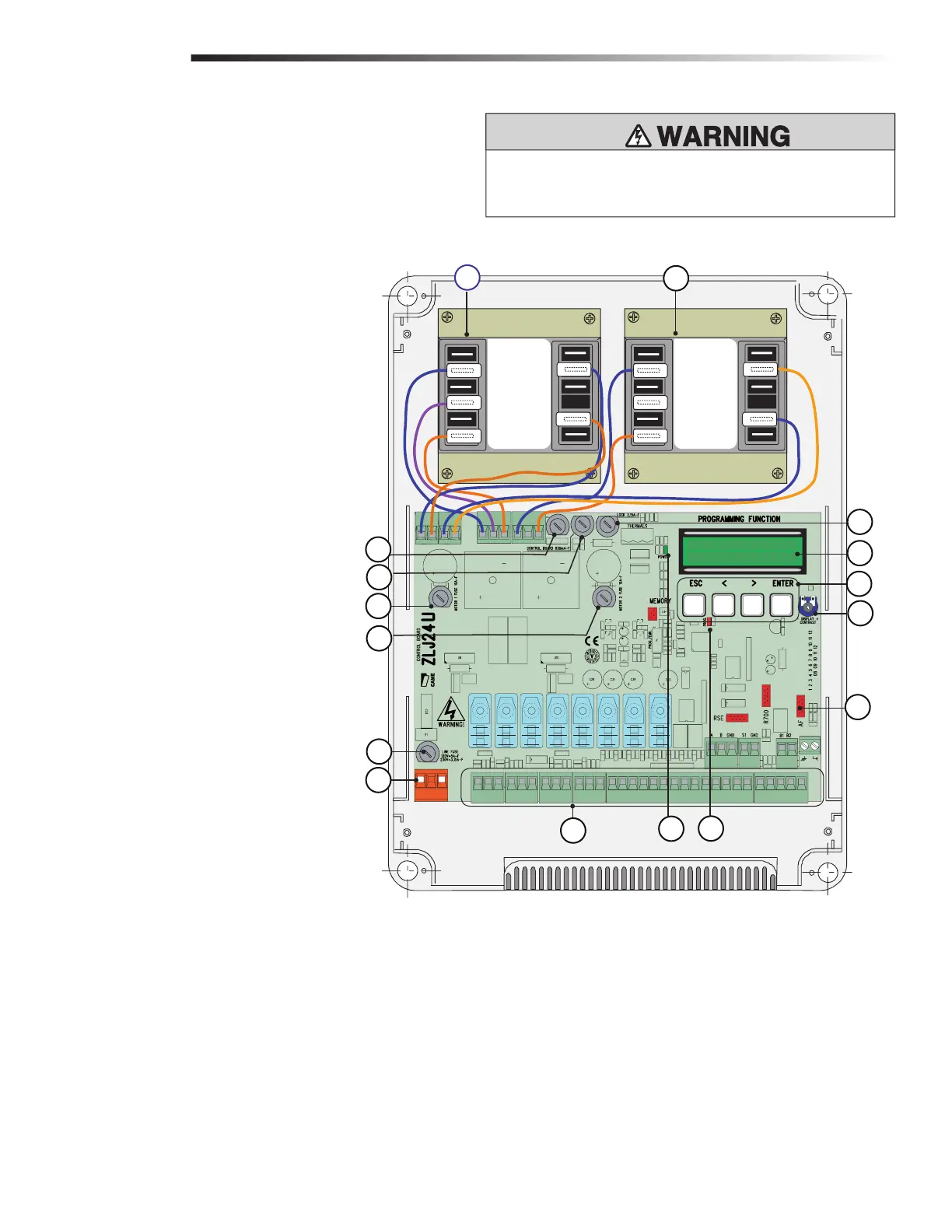

OVERVIEW OF CONTROL PANEL AND
ELECTRONIC CARD
1 Transformer
2 Card fuse (630mA-F 250VAC 5X20mm)
3 Accessories fuse (2A-F 250VAC 5X20mm)
4 Electrolock fuse (3.15A-F 250VAC 5X20mm)
5 Display
6 Display -contrast adjustment
7 Security+ 2.0™ radio card connector
8 Warning LED-Open contact error
9 Programming buttons
10 Accessory and Command Device Terminals
11 Power Supply Terminals-120 VAC
12 Line fuse (5A-F 250VAC 5X20mm)
13 120V-Power LED
14 Motor 1 fuse 1 (10A-F 250VAC 6X32mm)
15 Motor 1 fuse 2 (10A-F 250VAC 6x32mm)
OVERVIEW OF CONTROL PANEL AND ELECTRONIC CARD
WIRING
26V
0V
17V
0
120V
26V
0V
17V
0
120V
7
1
9
5
4
8
13
1
10
6
2
11
12
15
3
14
To protect against fire and electrocution:
• DISCONNECT power BEFORE installing or servicing operator.
