WIRE THE ENTRAPMENT PROTECTION DEVICES
WIRING
WIRE THE ENTRAPMENT PROTECTION
DEVICES

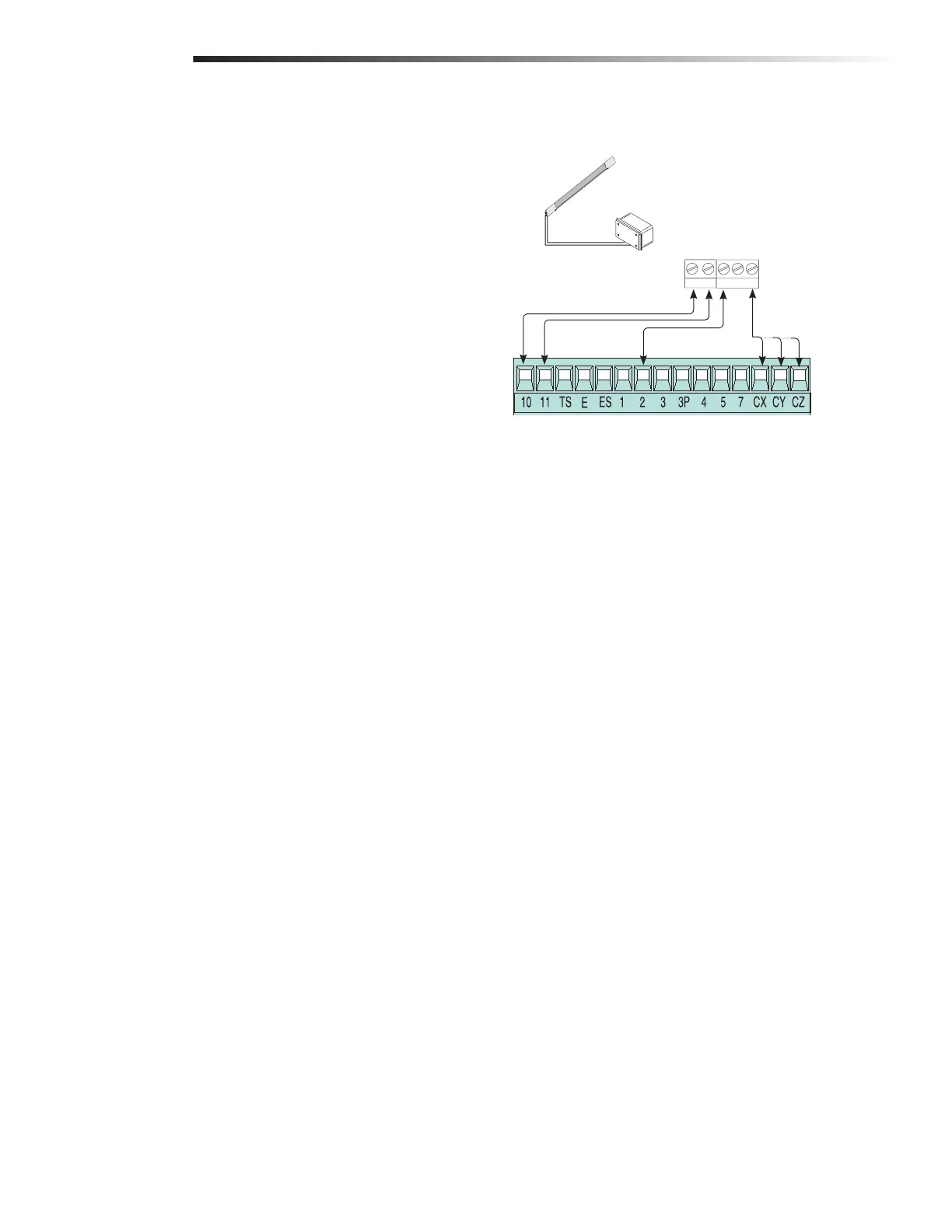

EDGE SENSORS (CONTACT)
An entrapment protection devices such as photoelectric sensors or an edge MUST be
wired to the operator and then configured for your application using the
programming menu. Refer to page 21- page 26 for programming information.
Input for UL325 compliant entrapment protection devices such as edge sensors.
Configure either CX, CY, or CZ (N.C.) contacts.
C7 “OPEN WHILE CLOSING” (N.C.) Contact
This input functions to reverse the gate to the open limit when activated during the
close cycle.
NOTE: If not used, deactivate.
C8 “CLOSE WHILE OPENING” (N.C.) Contact
This input functions to reverse the gate to the close limit when the edge is activated
during the opening cycle.
NOTE: If not used, deactivate.
CNONC
Two-wire normally open edge
Wireless Communicator
Transmitter
24V C
PWR Relay
Receiver

CAME FERNI Specifications

General

Max Gate Weight	800 kg
Power Supply	230 V AC
Motor Power	300 W
Operating Temperature	-20°C to +55°C
Protection Rating	IP54
Duty Cycle	30%
Maximum Leaf Weight	800 kg
Safety Features	Obstacle detection
