Chapter 1
1-3

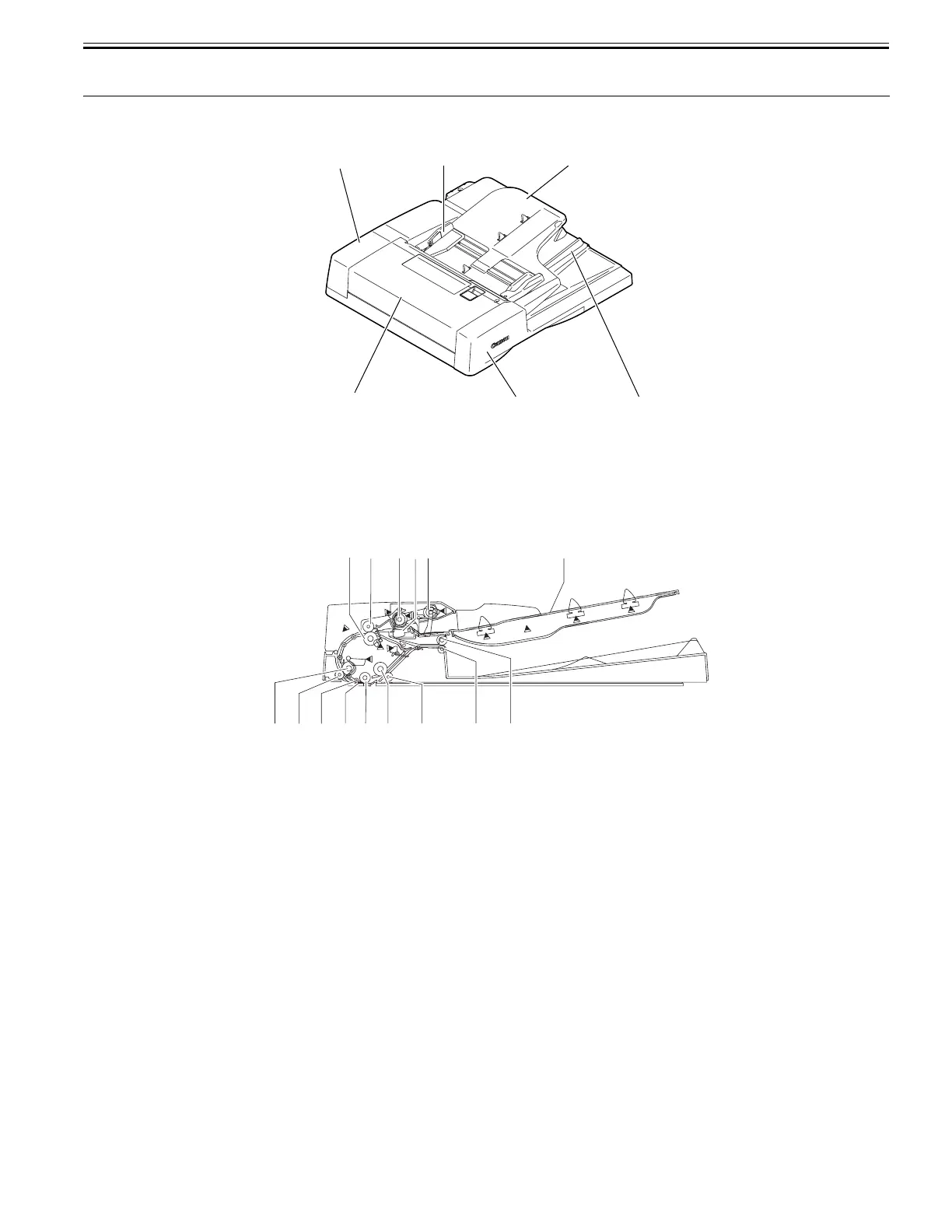

1.2 Names of Parts
1.2.1 External View
0024-6981
F-1-1
1.2.2 Cross Section
0024-6982
F-1-2
[1] Lower registration roller
[2] Upper registration roller
[3] Feed roller
[4] Separation pad unit
[5] Pickup roller
[6] Document supply tray
[7] Upper delivery reversal roller
[8] Lower delivery reversal roller
[9] Read roller 2(lower)
[10] Read roller 2(upper)
[11] Platen roller
[12] White sheet
[13] Read roller
[14] Read roller 1(lower)
[15] Read roller 1(upper)
[1] Feeder cover [4] Document supply tray
[2] Rear cover [5] Document delivery tray
[3] Slide guide [6] Front cover
[4]
[2]
[3]
[5]
[6]
[1]
[1] [2] [3]
[4]
[5]
[6]
[9]
[7]
[10][11]
[8]
[12]
[13][14]
[15]
