Canon DADF-AA1 - 5.4 Outline of Electrical Components

Chapter 5
5-8
5.4 Outline of Electrical Components
5.4.1 Electric Parts Layout and Functions
0024-7059
<Sensors>

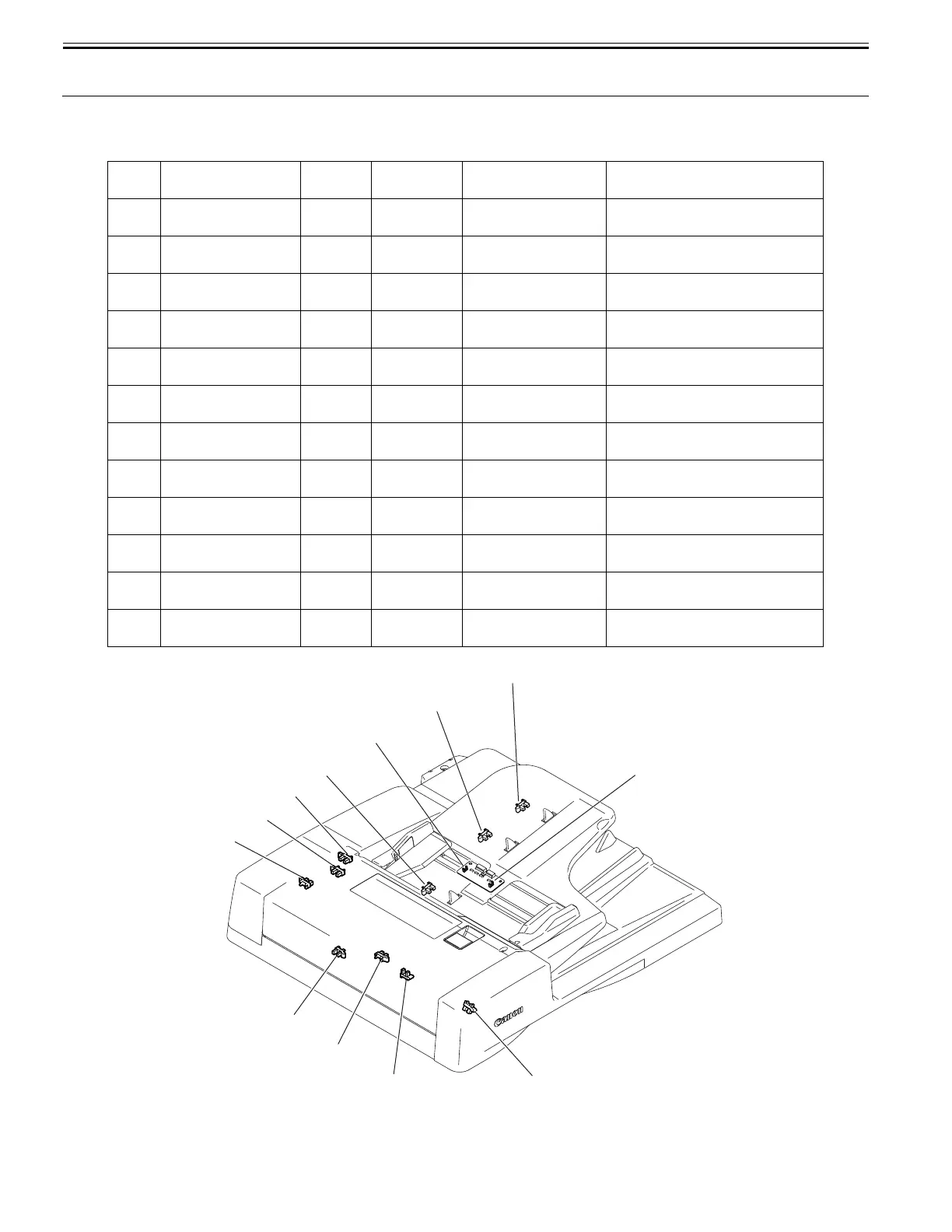

F-5-15
Symbol Name Part No. Relay PCB ADF driver PCB Jam code
SR1 Registration sensor WG8-5696 J1
0003, 0004, 0044, 0094
SR2 Read sensor WG8-5696 J1
0005, 0006, 0045, 0046, 0094
SR3 Delivery reversal sensor WG8-5696 J1
0007, 0008, 0047, 0048, 0094
SR4 Timing sensor WG8-5696 J2
SR5 Document set sensor WG8-5696 J2
0095
SR6 Cover open/closed sensor WG8-5696 J2
0092, 0093
SR9 Document length sensor 1 WG8-5696 J51 J3
SR8 Document length sensor 2 WG8-5696 J51 J3
SR7
Last document detection
sensor
WG8-5696 J51 J3
SR11
Release motor HP sensor WG8-5696
J5
0073
PS1(PCB
2)
Document width sensor 2
FM4-3024
J3
PS2(PCB
2)
Document width sensor 1
FM4-3024
J3
SR7
SR9
SR8
PS1(PCB2)
PS2(PCB2)
SR1
SR11
SR2
SR3
SR4
SR5
SR6
