Chapter 5
5-9

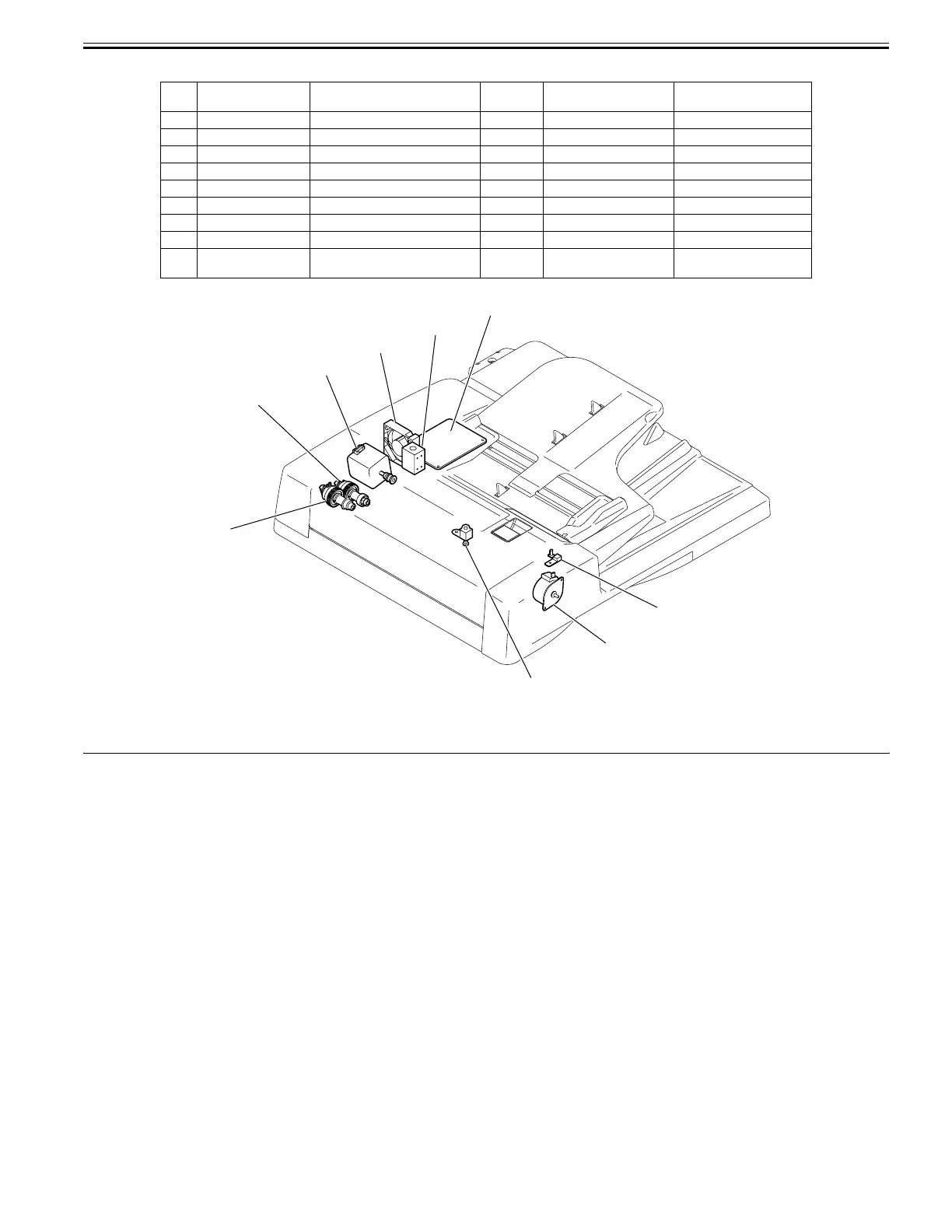

<Motors, clutches, solenoids, PCBs, etc.>
F-5-16
5.5 Variable Resistors (VR), Light-Emitting Diodes (LED), and Check Pins by PCB
5.5.1 Outline
0024-7060
The PCBs mounted in this machine have neither LED nor check pin for the adjustments carried out at the customer site or factory.
Symb
ol
Name Function Part No.
ADF driver PCB
E code
M1 Motor Pickup/feed motor FK2-6869 J4
M2 Release motor FK2-0207 J12 E413
SL1 Solenoid Stamp solenoid FK2-6871 J6
SL2 Pressurization solenoid FK2-0216 J5
CL1 Clutch Pickup clutch FK2-6870 J7
CL2 Registration clutch FK2-6870 J7
FM1 Fan Exhaust fan FK2-6872 J8
PCB1 ADF driver PCB ADF control FM4-3023 E400, E490
PCB3 LED PCB
Indicates whether a document is
placed using an LED.
FM3-6916 J5
M1
M2
CL1
CL2
SL1
FM1
SL2
PCB1
PCB3
