Canon DADF-AA1 - 5.1 User Maintenance

Chapter 5
5-1
5.1 User Maintenance
5.1.1 Cleaning
0024-7044
Tell the user to clean the following parts every 2000 sheets.

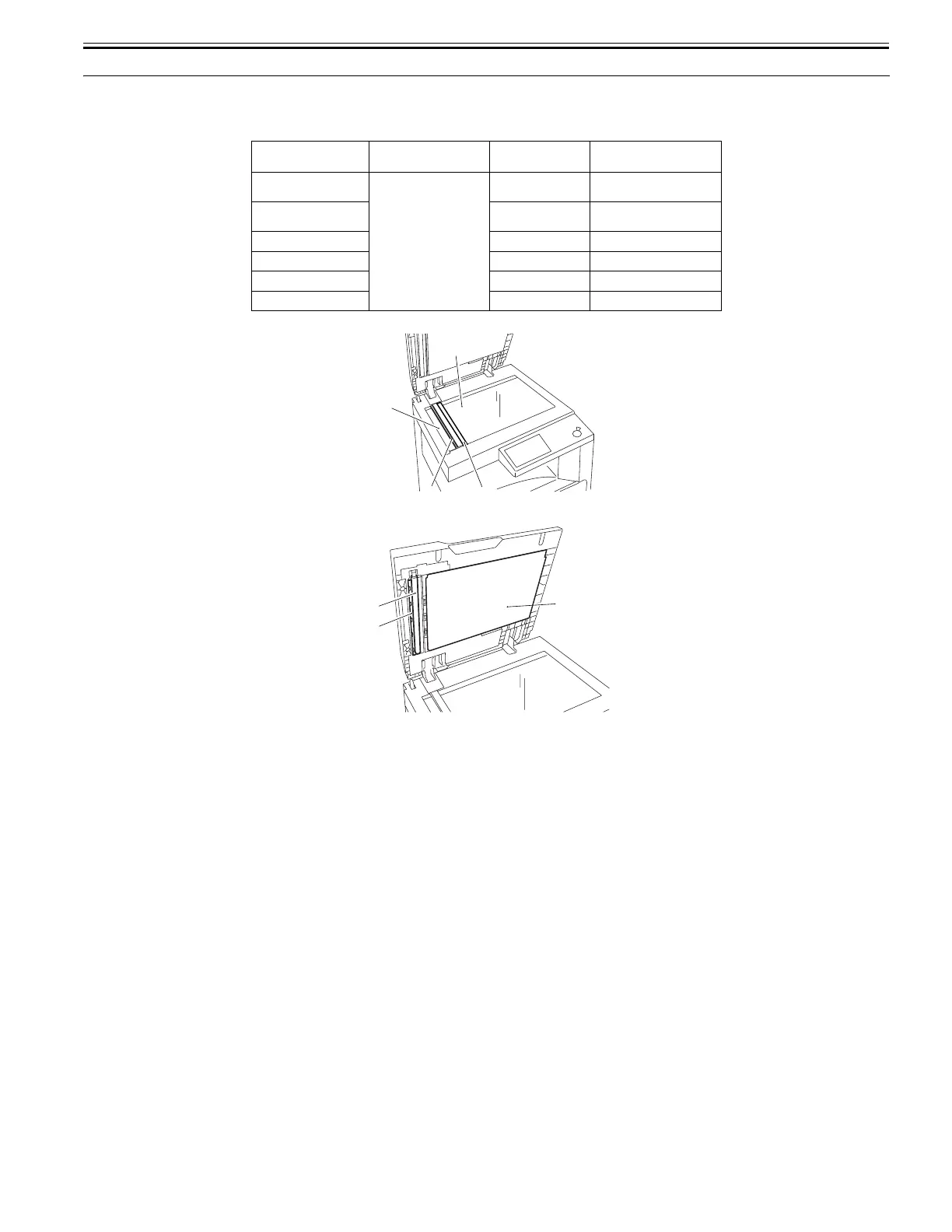

F-5-1
F-5-2
[1] Document glass (large)
[2] Document glass holder
[3] Vertical size plate
[4] Document glass (small)
[5] White plate
[6] Platen roller
[7] White sheet
5.1.2 Replacement
0024-7045
1. Replacing the Stamp
1) Open the feeder cover and separation guide.
2) Using tweezers, remove the stamp.
Parts to clean Cleaning method Cleaning cycle Remarks
White plate (pressure
plate)
Clean with a cloth which
is dampened with water or
neutral detergent and
squeezed hard, and then
wipe with a dry cloth.
As required
Document glass (large/
small)
As required or every
10000 sheets
- Parts of reader unit
Document glass holder As required - Parts of reader unit
Vertical size plate As required - Parts of reader unit
Platen roller As required
White sheet As required
[1]
[2] [3]
[4]
[6]
[5]
[7]
