Canon DADF-AA1 - 3.7 Detecting Jams; 3.8 Power Supply

Chapter 3
3-18
3.7 Detecting Jams
3.7.1 Jams
0024-7003
This machine detects document jams using the sensors shown below. Document jam check timings are stored in the ROM on the reader controller PCB to check
whether a jam has occurred according to presence/absence of a document at the relevant sensor position.
When a jam occurs, the host machine stores its code.
Jam codes can be checked by outputting a jam error log report in the service mode of the host machine.

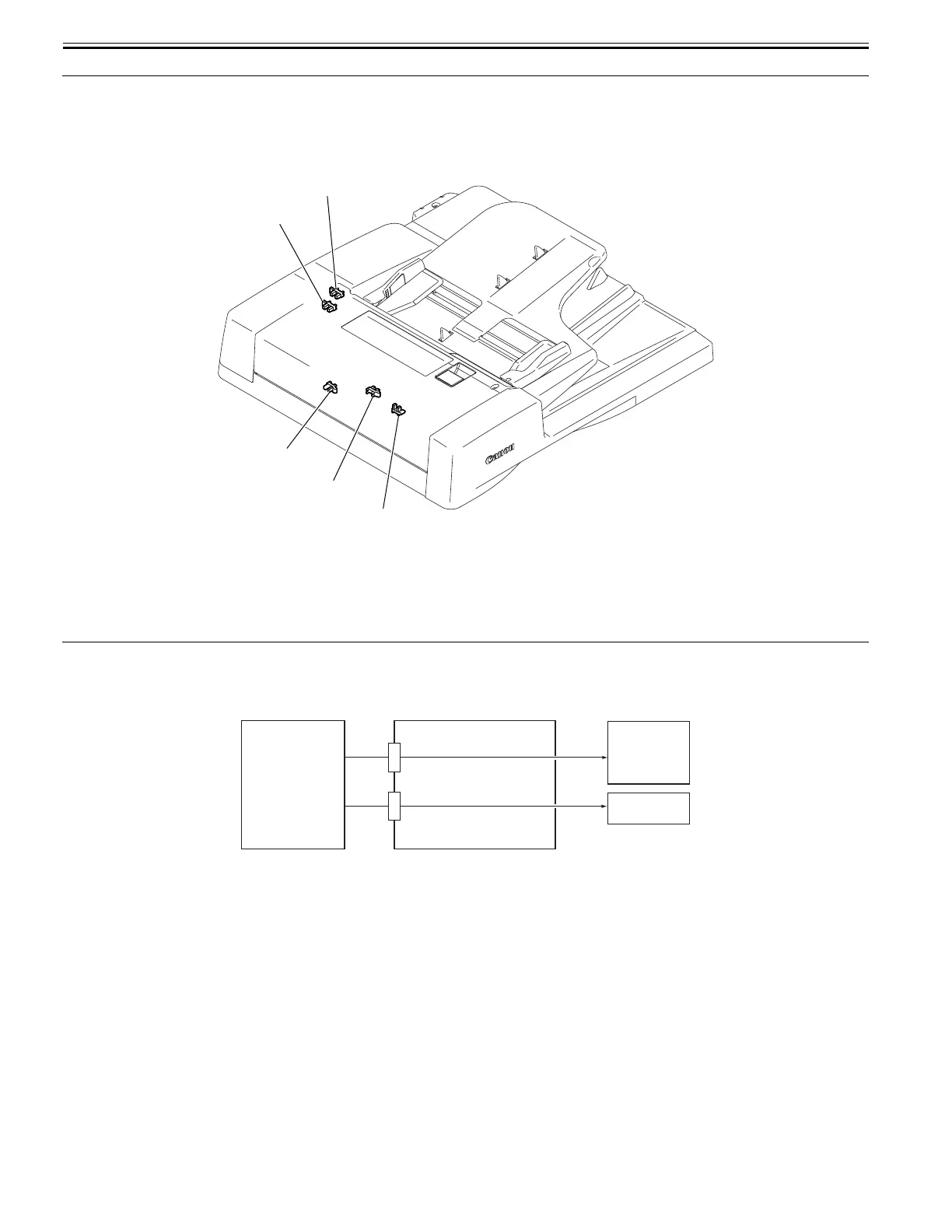

F-3-29
SR1: Registration sensor
SR2: Read sensor
SR3: Delivery reversal sensor
SR5: Document set sensor
SR6: Cover open/closed sensor
3.8 Power Supply
3.8.1 Power Supply
0024-7004
The power supply lines are shown below.
This machine is powered via two power supply lines (24 V and 5 V) from the host machine.
F-3-30
SR1
SR2
SR3
SR5
SR6
24V
5V
5V
24V
J11
J9
Host machine
ADF driver PCB
Sensor
Motor
Solenoid
Fan
Clutch
