3.6.2 Release Operation
0024-6999
When a document is read, the read roller 1 (lower driven rollers) are pressurized/released to prevent the training edge of the document from swaying.
After separation of the document, the read roller 1 (lower driven rollers) are pressurized by the Release motor (M2) during formation of a registration loop.
After lapse of the predetermined time since turning off of the document trailing edge registration sensor, the Release motor is driven to release the read roller 1
(lower driven rollers).

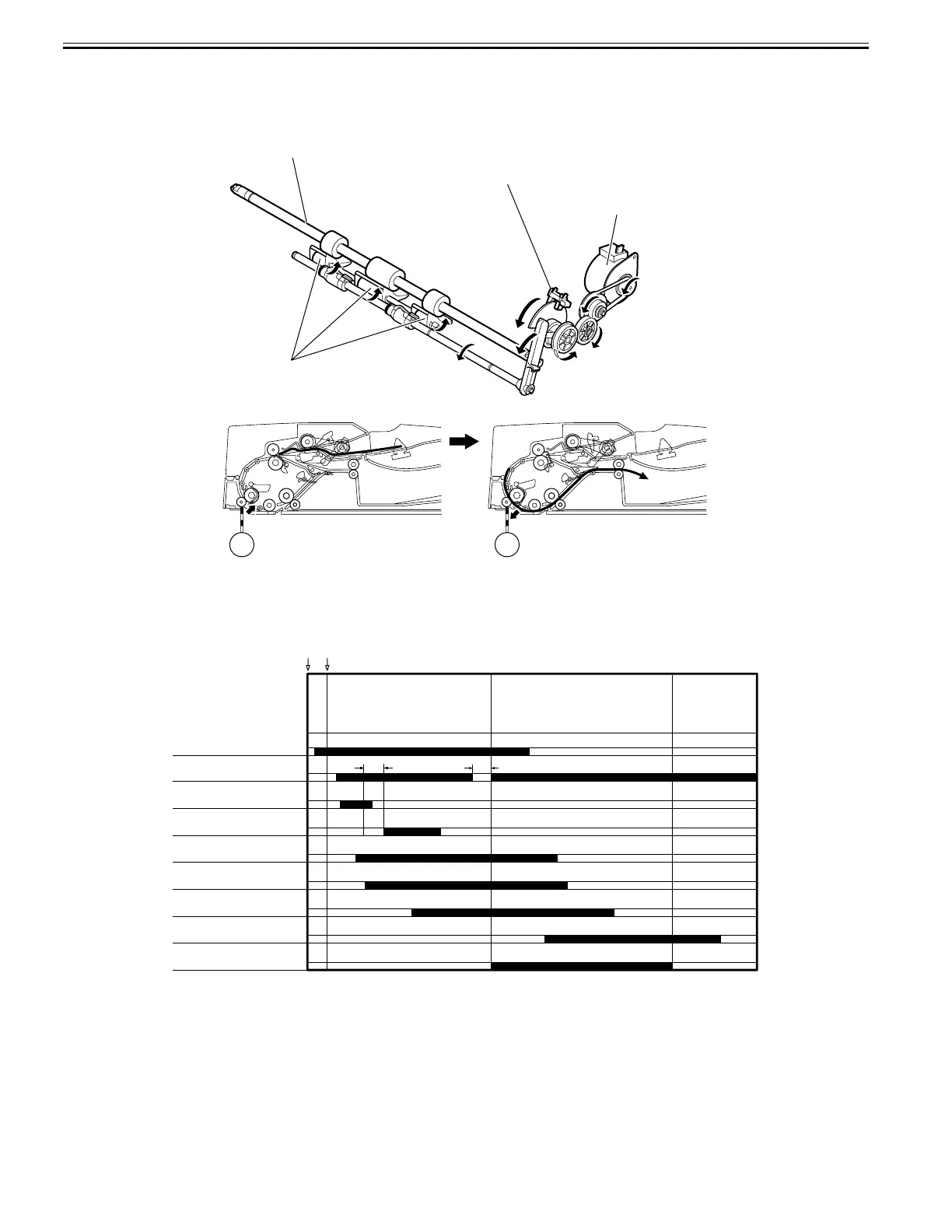

F-3-24
F-3-25
3.6.3 Operation Sequence
0024-7001
<Basic operation sequence>
F-3-26
Read roller 1
Release motor HP sensor
Release motor
Read roller 1 (lower rollers)
M2 M2
Document set sensor
(SR5)
Delivery reversal sensor
(SR3)
Pickup/feed motor
(M1)
Pickup clutch
(CL1)
Timing sensor
(SR4)
Registration sensor
(SR1)
Registration clutch
(CL2)
Read sensor
(SR2)
Image leading edge signal
Document
delivery
Read stanby
loop formation
Original replacement
Start key ON
Document pickup signal input
Document reading
Document
separation/feed
