Canon DADF-AA1 - Page 77

Chapter 4
4-15
- Document tray harness
9) Remove the pickup/feed motor together with the support plate.
- Connector, 1 pc.
- Tension spring, 1 pc.
- Screw, 2 pcs.
10) Remove the left hinge.
- Screw, 5 pcs.

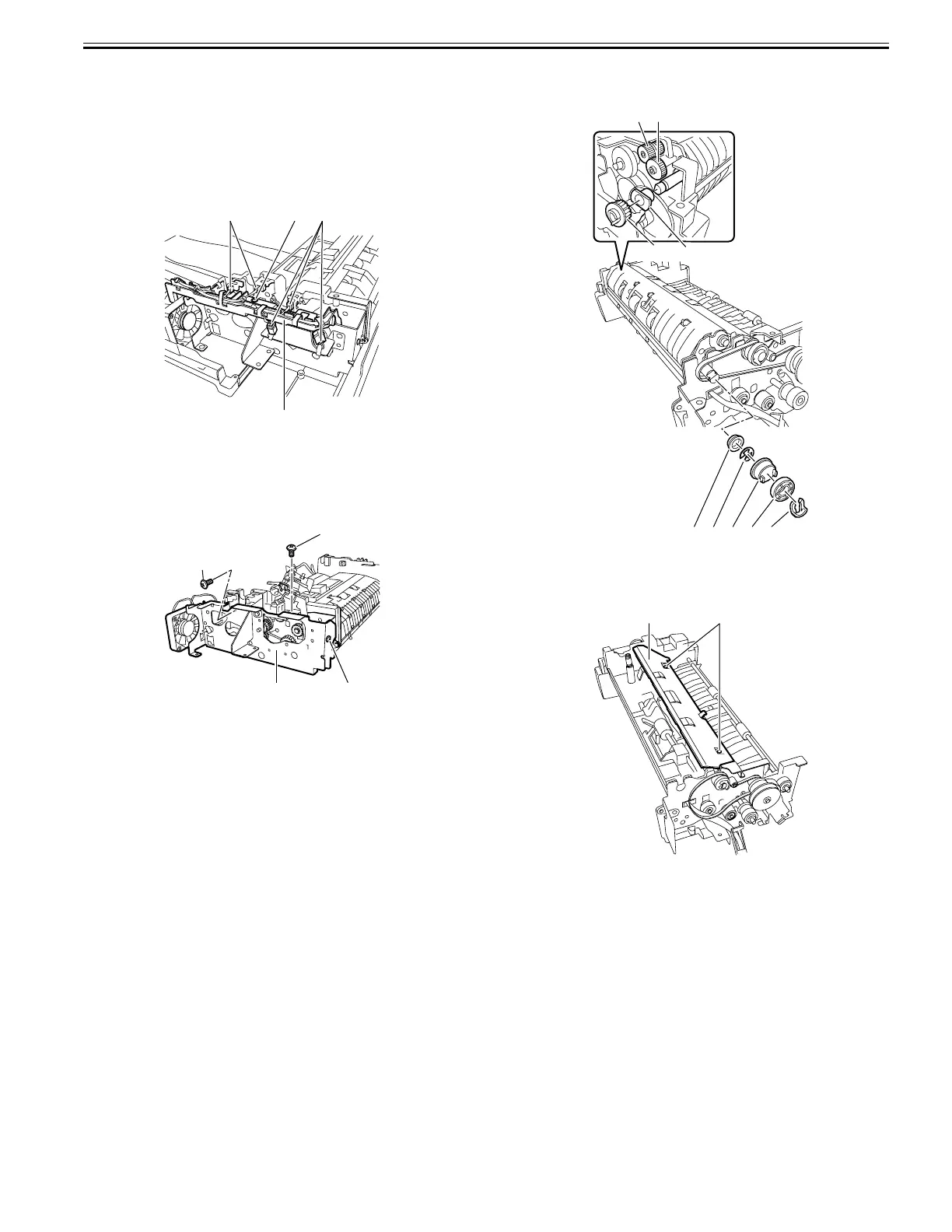

11) Remove the harness guide [1].
- Connector [2], 5 pcs.
- Screw [3], 1 pc.
- Harness
F-4-62
12) Remove the pickup clutch/registration clutch support base.
- Screw, 2 pcs.
13) Remove the feed unit.
- Screw, 8 pcs.
14) Remove the metal plate [1].
- Screw [2], 3 pcs.
F-4-63
15) Remove the two timing belts.
16) Remove the resin ring [1], pulley [2], gear [3], E-ring [4], and bearing
[5].
17) Remove the gear [6], gear [7], gear [8], and bearing [9].
F-4-64
18) Remove the platen roller unit.
19) Detach the cover [1].
- Screw [2], 2 pcs.
F-4-65
20) Remove the read roller 2.
- Resin ring, 1 pc.
- Pulley, 1 pc.
- Gear, 1 pc.
- E-ring, 1 pc.
- Bearing, 1 pc.
- Gear, 1 pc.
- Bearing, 1 pc.
[2]
[1]
[3][2]
[1] [2]
[2]
[2]
[8]
[1]
[6]
[9]
[7]
[2][3][4][5]
[1]
[2]
