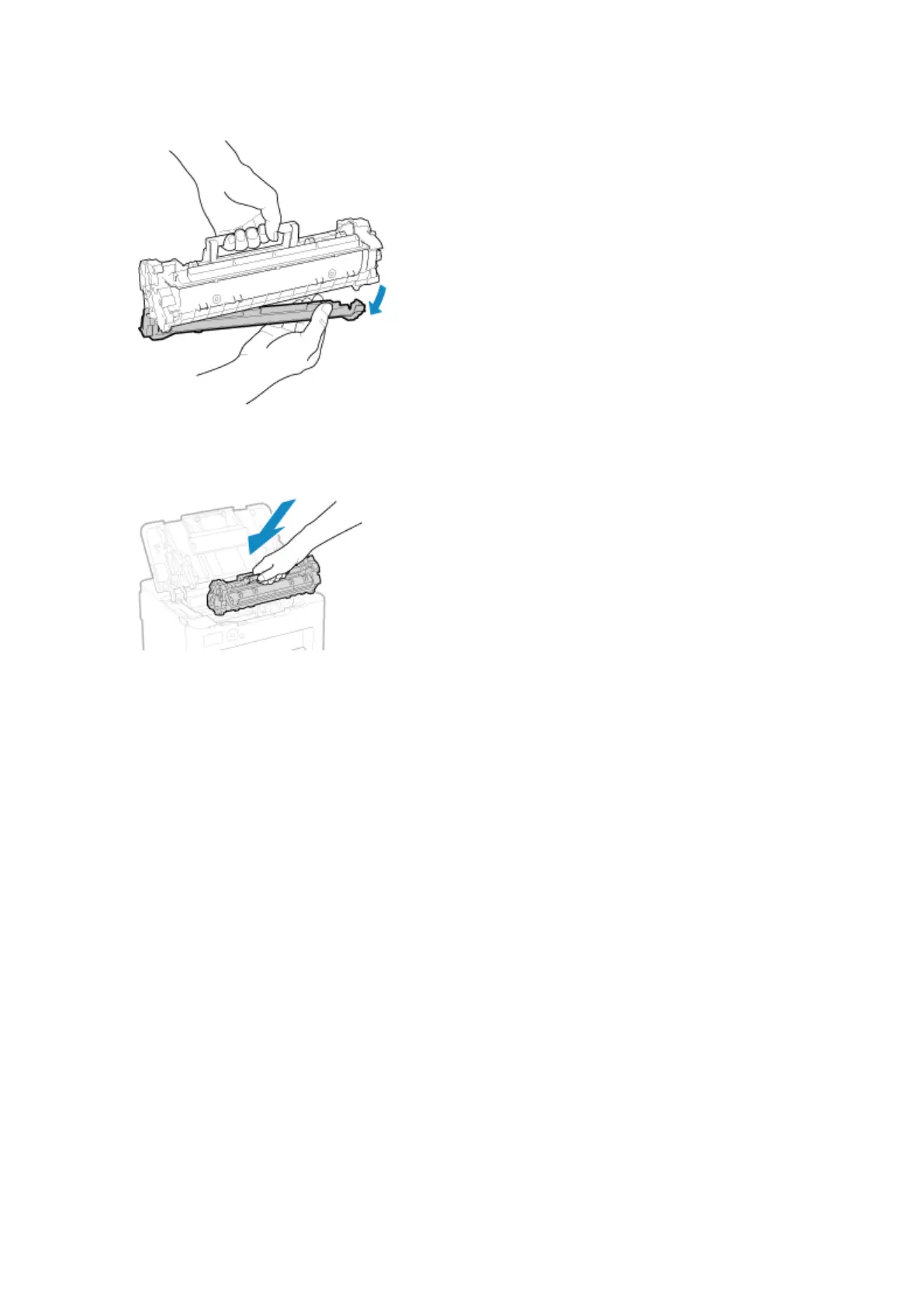

Remove the protective cover of the toner cartridge.

Be careful not to touch the drum surface on the bottom of the toner cartridge.

Install the toner cartridge.

The bottom of the toner cartridge is unprotected. Be careful not to bump the bottom of the toner cartridge

against the slot fr

ame or other parts when installing.

Close the toner cover.

Maintenance

261
