Canon imageCLASS LBP325dn - Control Panel

No. Name No. Name
[1] Fixing Delivery Roller [12] Vertical Path Roller
[2] Duplex Flapper [13] Cassette Feed Roller
[3] Delivery Roller [14] Cassette Separation Roller
[4] Fixing Film [15] Cassette Pickup Roller
[5] Fixing Assembly [16] Duplex Re-pickup Roller
[6] Photosensitive Drum [17] Registration Roller
[7] Laser Scanner Assembly [18] Cassette
[8] Cartridge [19] Transfer Roller
[9] Registration Shutter [20] Duplex Feed Roller
[10] Multi-purpose Tray Pickup Roller [21] Pressure Roller
[11] Multi-purpose Tray Separation Pad

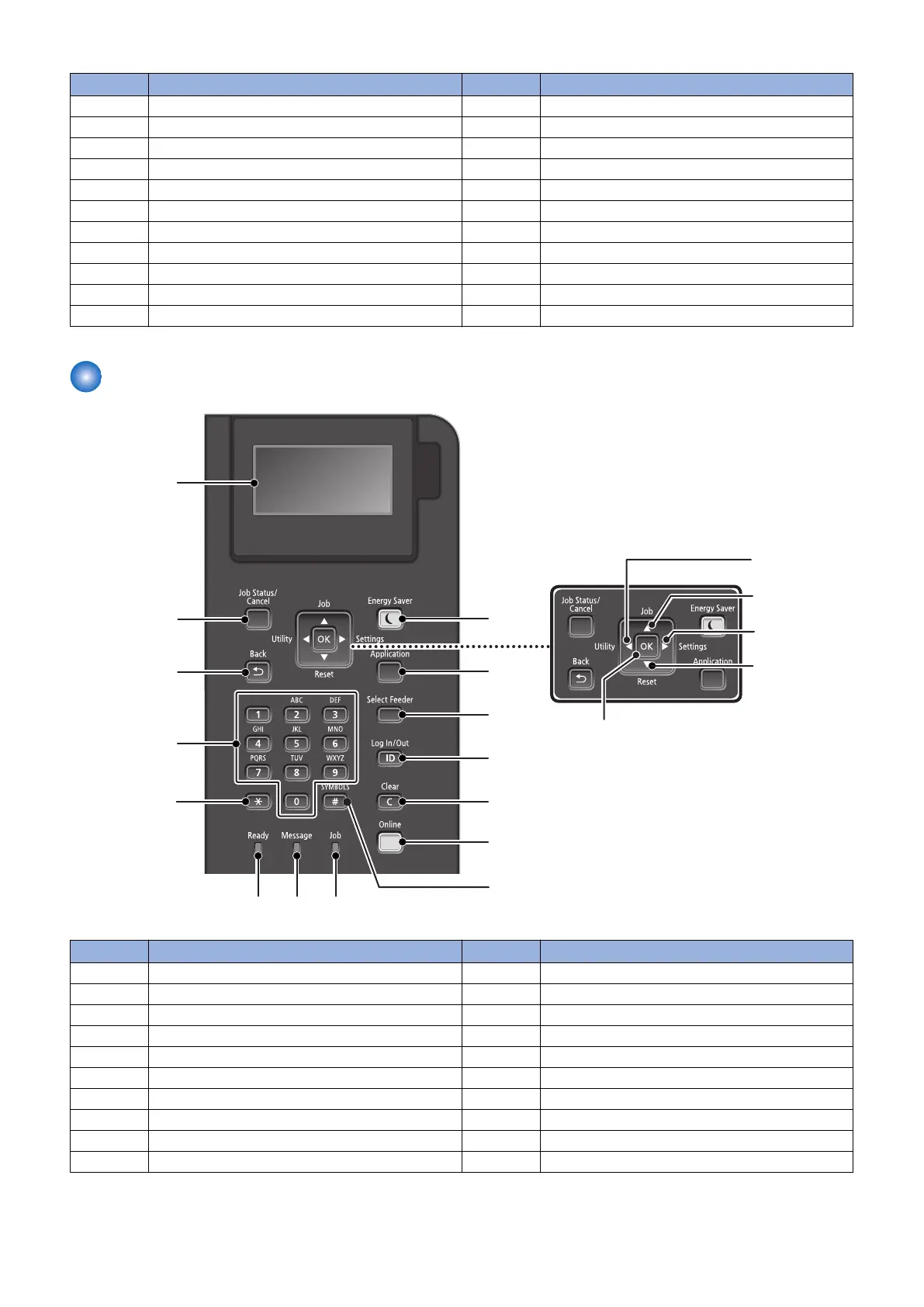

Control Panel
5
1
[1]
[2]
[4]
[3]
[5]
[6]
[7][8]
[9]
[10]
[11]
[12]
[13]
[14]
[19]
[16]
[17]
[18]
[20]
[15]
No. Name No. Name
1 Display 11 Select Feeder key
2 [Job Status/Cancel] key 12 [ID] key
3 [Back] key 13 Clear key
4 Numeric keys ([0] to [9]) 14 Online key
5 [*] key 15 [#] key
6 Ready indicator 16 Utility key / [<] key
7 Message indicator 17 Job key / [∧] key
8 Job indicator 18 Settings key / [>] key
9 Energy Saver key 19 Reset key / [V] key
10 Application key 20 [OK] key
1. Product Overview
14
