Pickup Feed System
Overview
The pickup, feed, and delivery systems are controlled by the DC Controller.
The DC Controller controls the blocks in the pickup, feed, and delivery systems to pickup, feed, and deliver paper inside the
machine.
The pickup, feed, and delivery systems consist of the following three blocks.
• Pickup/Feed: From each pickup slot to the inlet of the Fixing Assembly
• Fixing/Delivery: From the Fixing Assembly to the delivery outlet
• Duplex: From the Duplex Reverse Assembly to the Duplex Re-pickup Assembly

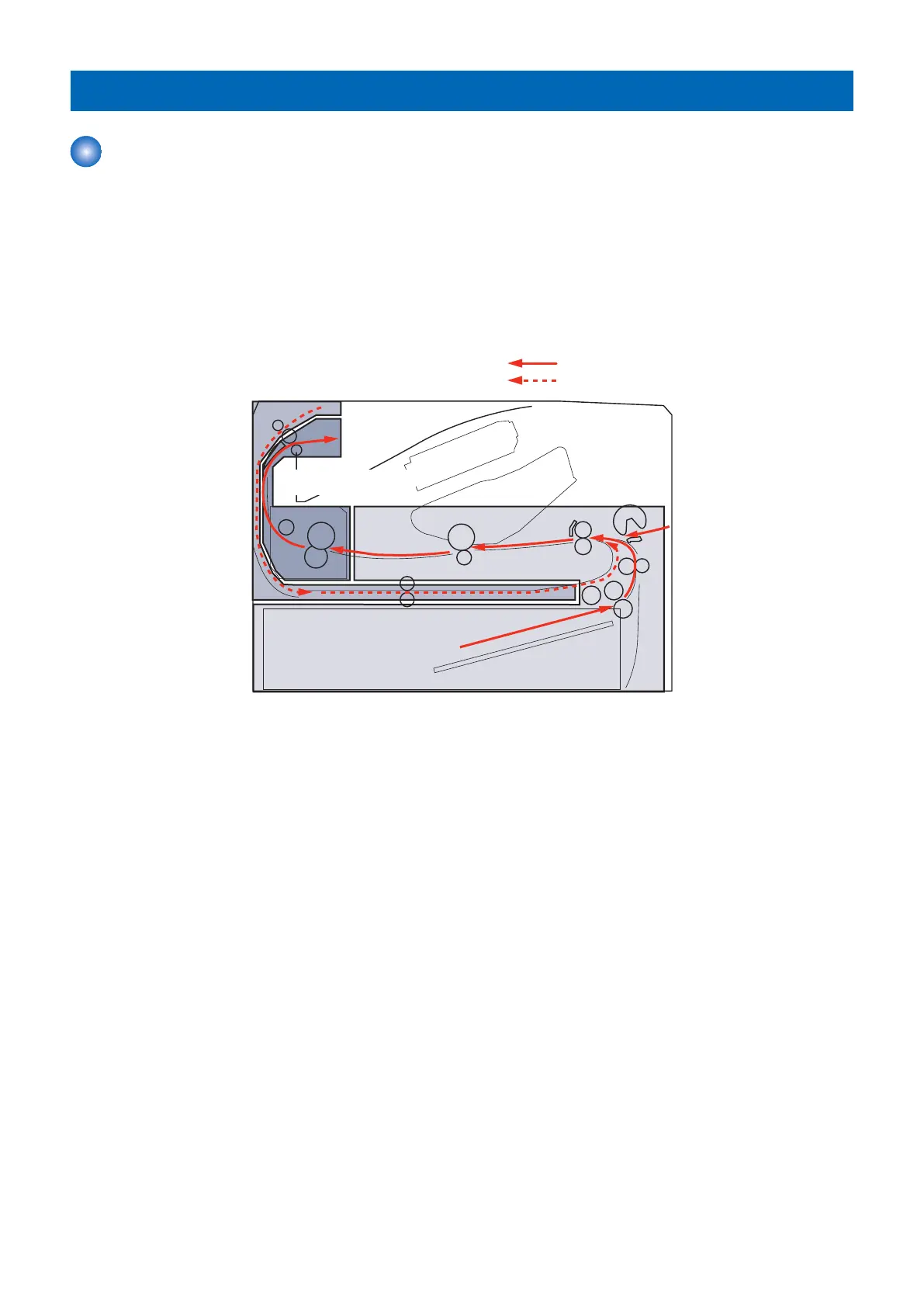

Simplex paper path
Duplex paper path
Duplex block
Pickup and Feed block
Fuser and delivery block
2. Technical Explanation (Device)
