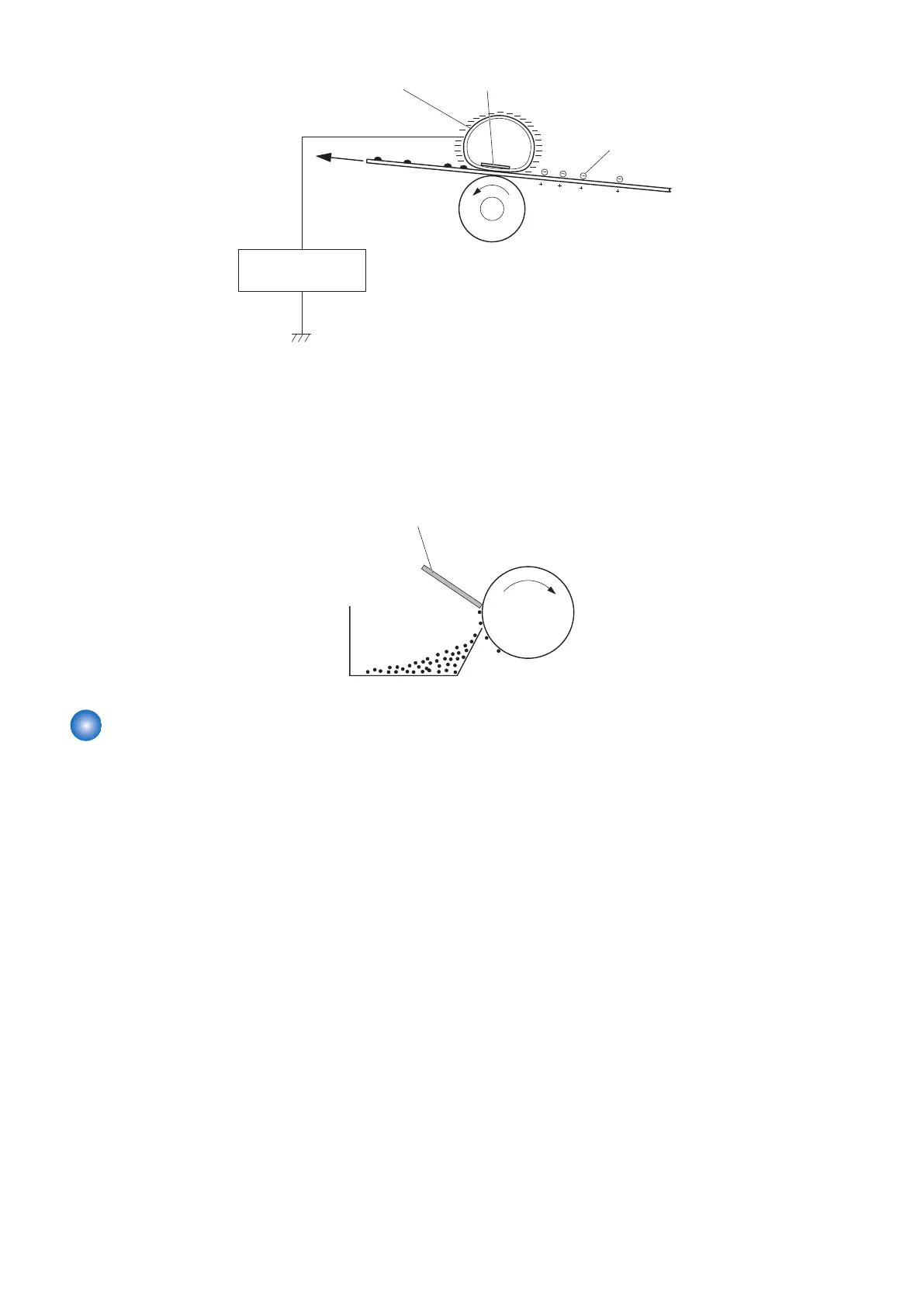

Fixing bias
Fixing film
Toner
Pressure roller
Fixing heater
Media
■ Drum cleaning block
The residual toner is cleared from the photosensitive drum surface.
Step 7: Drum cleaning
The cleaning blade scrapes the residual toner off the surface of the photosensitive drum. The residual toner is deposited in the
toner collection box.
Toner
collection box
Photosensitive
drum
Cleaning blade
Cartridge
■ Overview
The cartridge of this machine has the function to form a visible image on the Photosensitive Drum with toner.
The following shows an outline drawing of the cartridge of this machine.
2. Technical Explanation (Device)
30
