Canon imageCLASS LBP325dn - DC Controller PCB; Motor Control

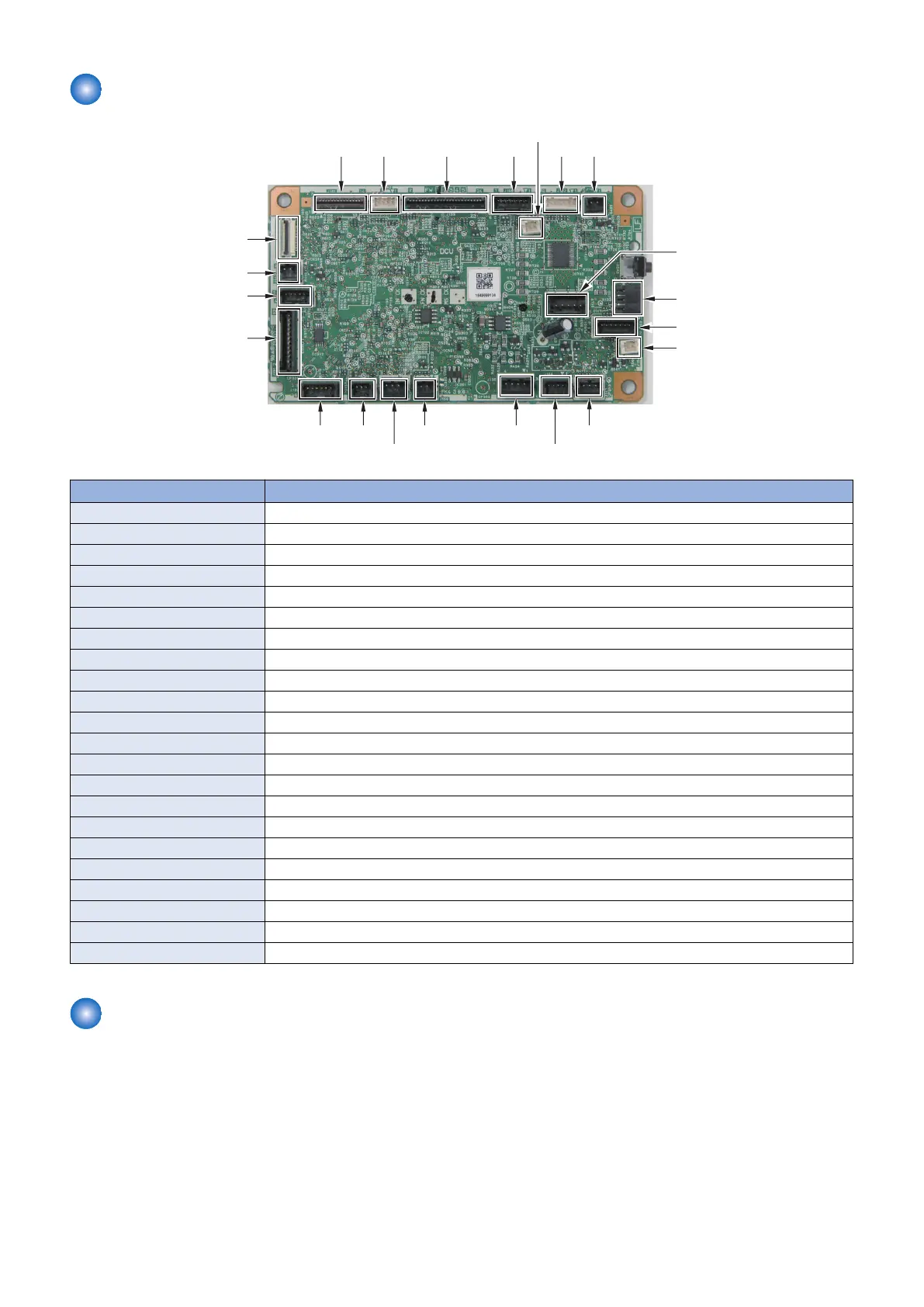

DC Controller PCB
J131
J151
J163
J143
J147
J144
J135J158
J156
J157J132
J111
J153
J154
J161 J162 J133 J146 J152
J159
J141
J171
No. Roles and Specifications
J111 Not used
J131 Low Voltage Power Supply PCB, Main Controller PCB
J132 Fixing Power Supply PCB
J133 High Voltage Power Supply PCB
J135 Low Voltage Power Supply PCB
J141 Duplex Reverse Solenoid
J143 Multi-purpose Tray Pickup Solenoid
J144 Cassette Pickup Solenoid, Lifter Motor
J146 Main Motor
J147 Main Fan
J151 TOP Sensor, Paper Width Sensor, Duplex Feed Sensor
J152 Delivery Tray Full Level Sensor, Fixing Delivery Sensor
J153 Paper Feeder (Option)
J154 Duplex Re-pickup Clutch
J156 Cassette Paper Surface Sensor
J157 Pre-registration Sensor
J158 Cassette Detection Switch
J159 Rear Cover Detection Switch
J161 BD PCB
J162 Laser Scanner Motor
J163 Main Controller PCB
J171 Pickup Motor
Motor Control
This machine uses 4 motors for paper feed and image formation.
2. Technical Explanation (Device)
19
