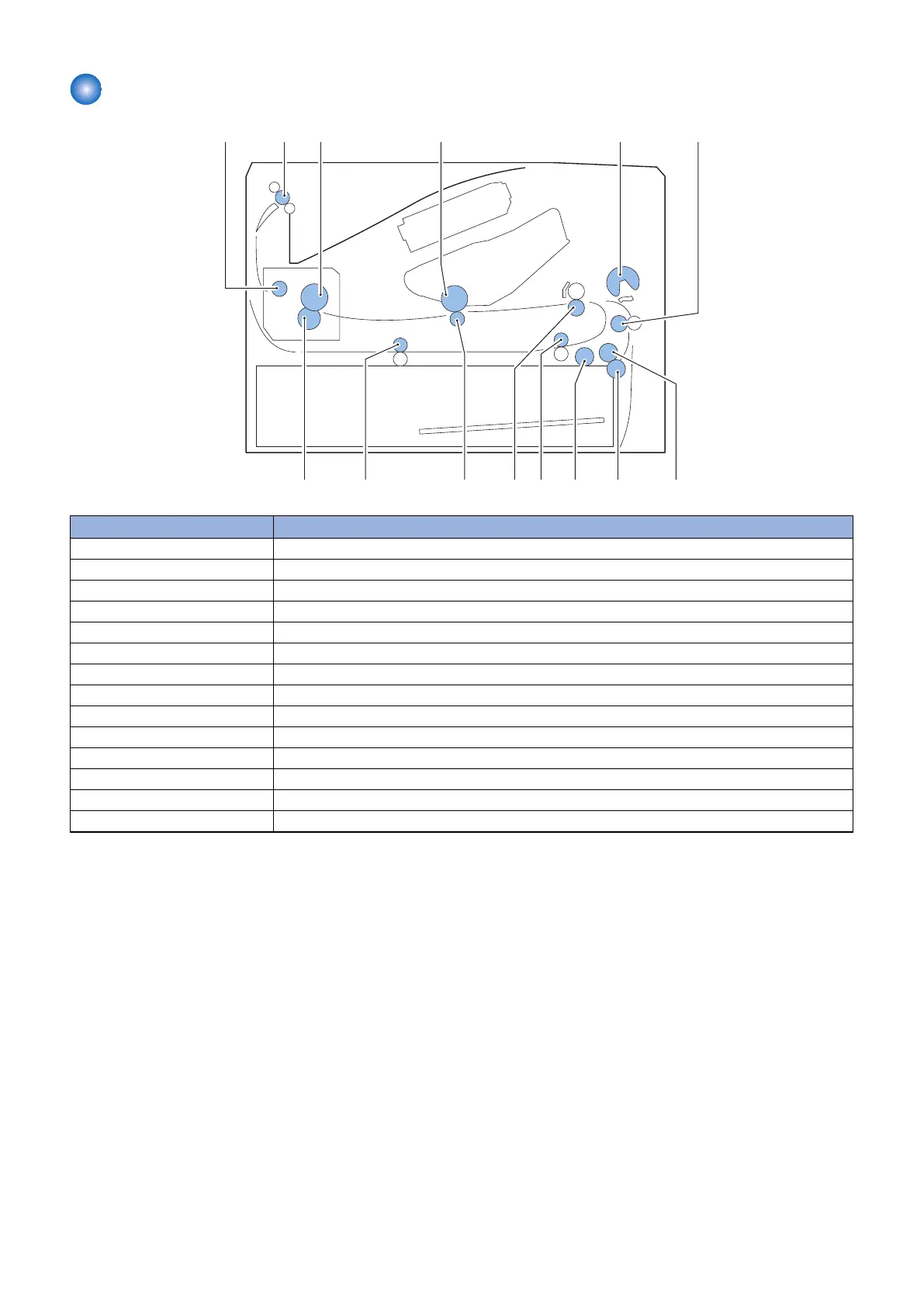

Parts Configuration
[1] [2] [3] [4]
[8][14] [9] [7][10][13] [11]
[5] [6]
[12]
Symbol Name
[1] Fixing Delivery Roller
[2] Delivery Roller
[3] Fixing Film
[4] Photosensitive Drum
[5] MP tray Pickup roller
[6] Vertical Path Roller
[7] Cassette Feed Roller
[8] Cassette Separation Roller
[9] Cassette Pickup Roller
[10] Duplex Re-pickup Roller
[11] Registration Roller
[12] Transfer Roller
[13] Duplex Feed Roller
[14] Pressure Roller
2. Technical Explanation (Device)
37
