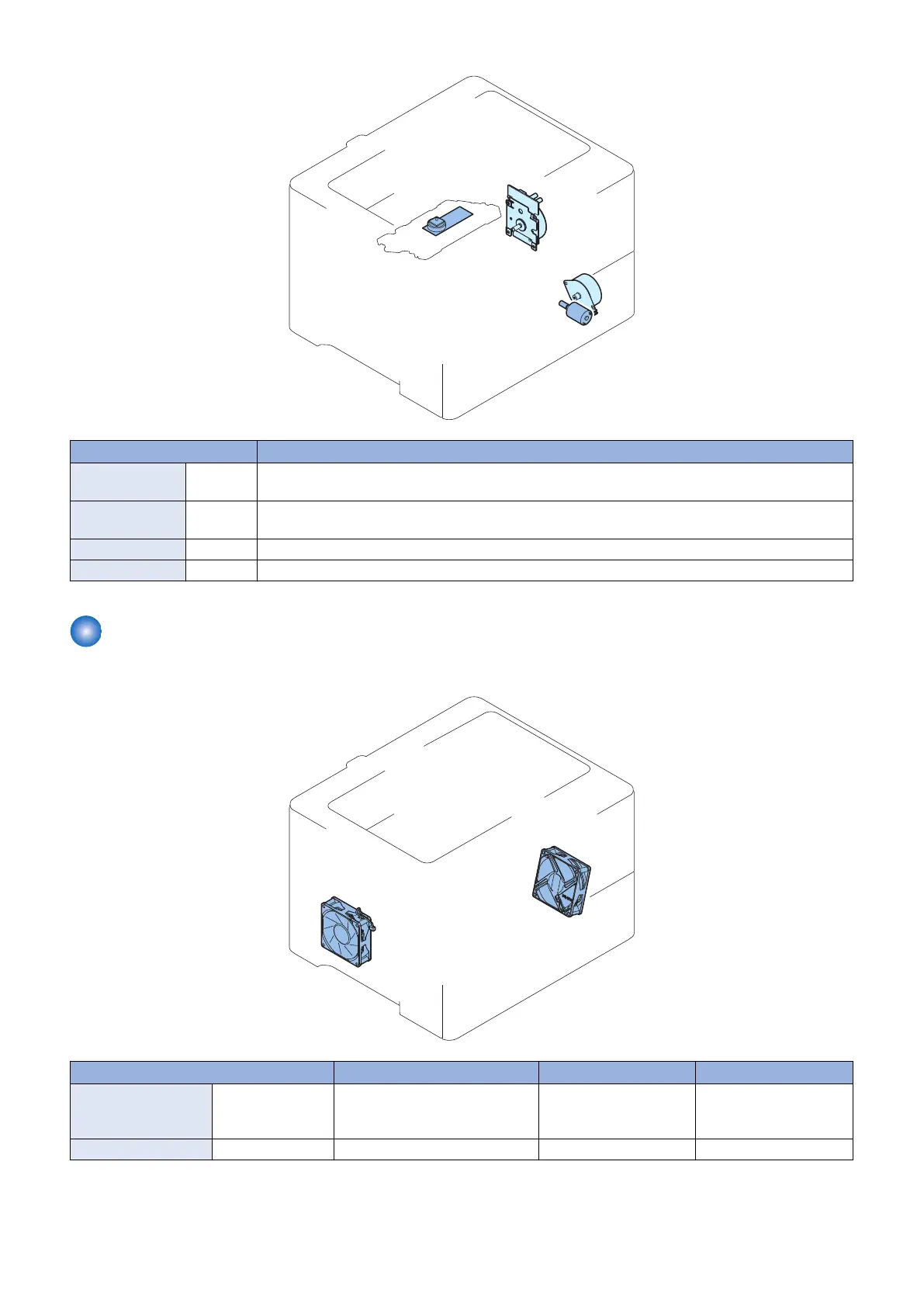

Name Drive parts
Main Motor M1 Photosensitive Drum, Primary Charging Roller, Transfer Roller, Pressure Roller, Fixing Delivery Roller,
Delivery Roller, Duplex Feed Roller, Rollers in the Paper Feeder
Pickup Motor M2 Multi-purpose Tray Pickup Roller, Cassette Pickup Roller, Cassette Feed Roller, Registration Roller,
Vertical Path Roller
Scanner Motor M3 Scanner Mirror
Lifter Motor M4 Lifter in the cassette
Fan Control
This machine uses 2 fan motors for preventing temperature rising inside the machine
Name Cooling area Type Speed
Main Fan FM1 Area around the Low Voltage Pow-
er Supply, area around the con-
troller
Suction Full speed / Half speed
Sub Fan FM2 Cartridge, Laser Scanner Suction Full speed
2. Technical Explanation (Device)
20
