Chapter 4
4-6

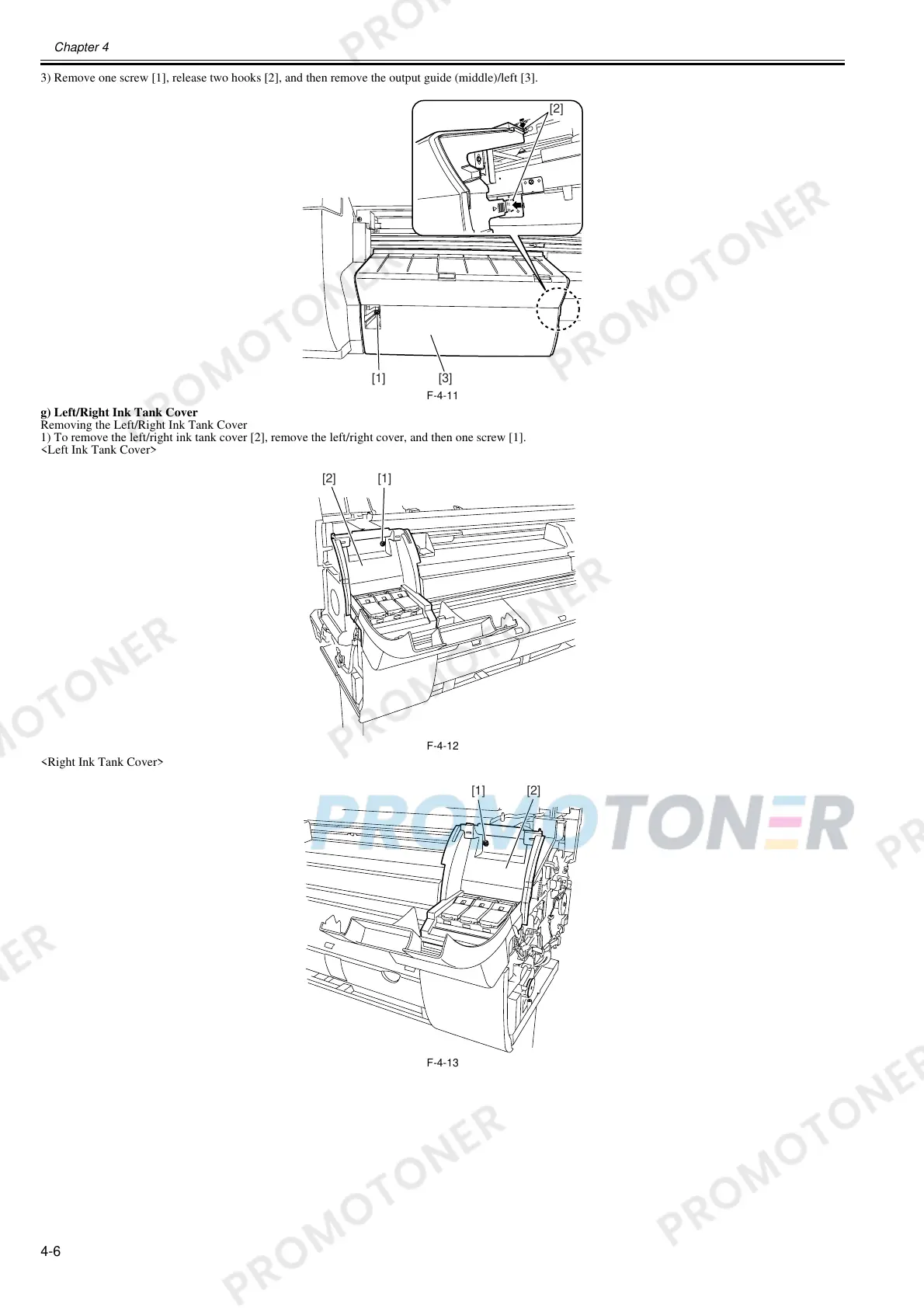

3) Remove one screw [1], release two hooks [2], and then remove the output guide (middle)/left [3].
F-4-11
g) Left/Right Ink Tank Cover
Removing the Left/Right Ink Tank Cover
1) To remove the left/right ink tank cover [2], remove the left/right cover, and then one screw [1].
<Left Ink Tank Cover>
F-4-12
<Right Ink Tank Cover>
F-4-13
[1] [3]
[2]
[1][2]
[1] [2]
