Canon ImagePROGRAF iPF650 Series - Page 153

Chapter 4
4-19

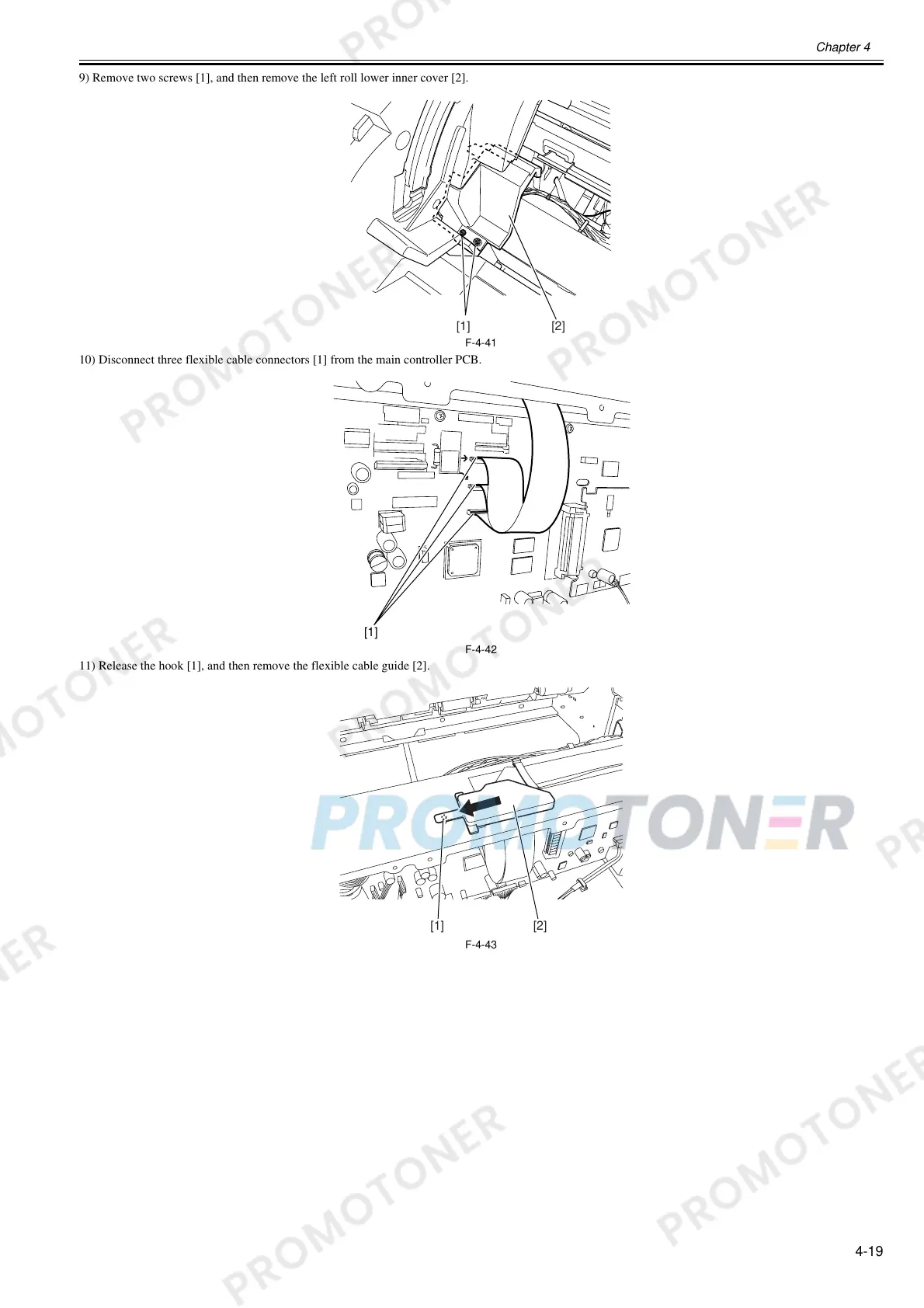

9) Remove two screws [1], and then remove the left roll lower inner cover [2].
F-4-41
10) Disconnect three flexible cable connectors [1] from the main controller PCB.
F-4-42
11) Release the hook [1], and then remove the flexible cable guide [2].
F-4-43
[1] [2]
[1]
[1] [2]
