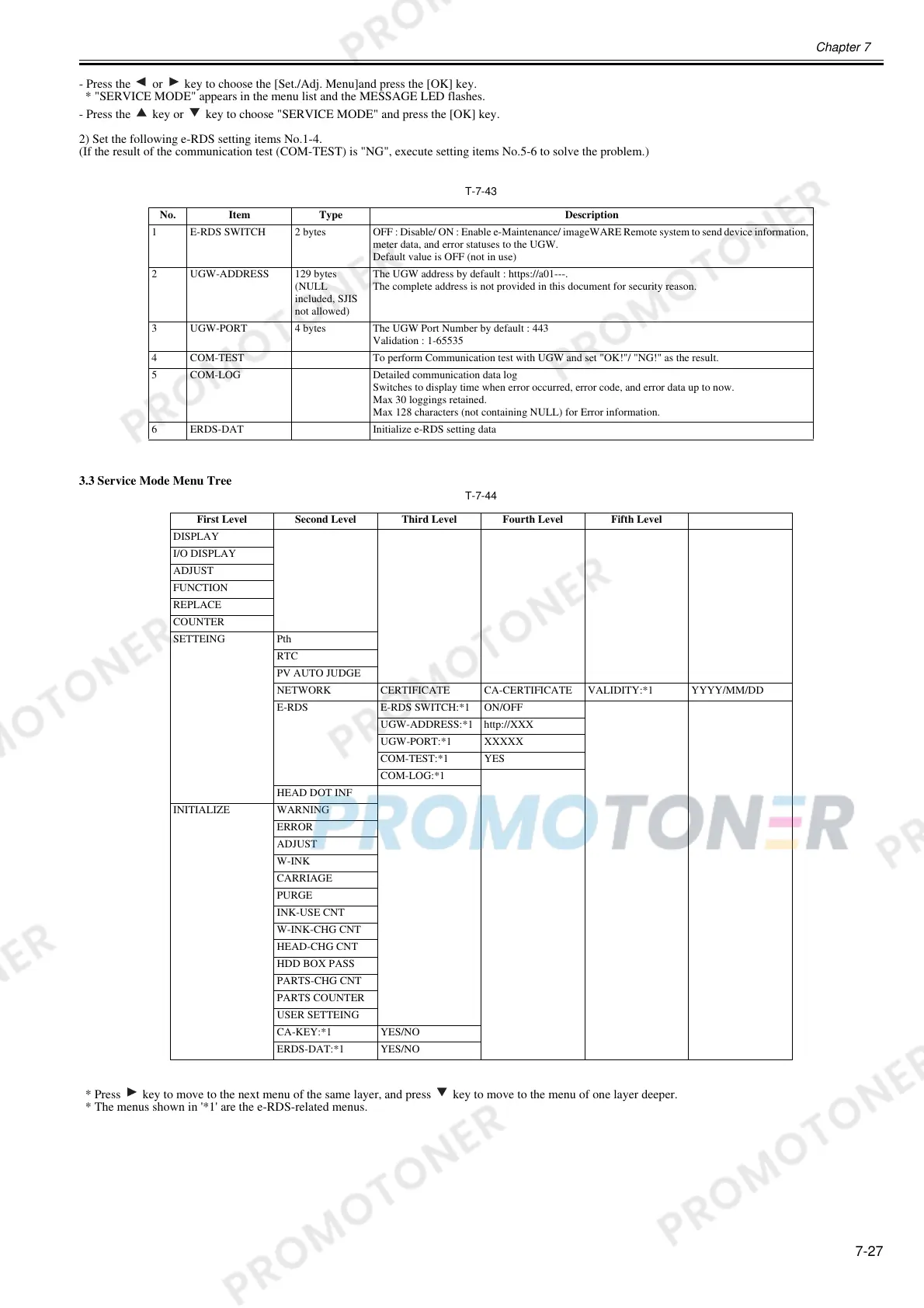

Chapter 7
7-27
- Press the or key to choose the [Set./Adj. Menu]and press the [OK] key.
* "SERVICE MODE" appears in the menu list and the MESSAGE LED flashes.
- Press the key or key to choose "SERVICE MODE" and press the [OK] key.
2) Set the following e-RDS setting items No.1-4.
(If the result of the communication test (COM-TEST) is "NG", execute setting items No.5-6 to solve the problem.)
T-7-43
3.3 Service Mode Menu Tree
T-7-44
* Press key to move to the next menu of the same layer, and press key to move to the menu of one layer deeper.
* The menus shown in '*1' are the e-RDS-related menus.
No. Item Type Description
1 E-RDS SWITCH 2 bytes OFF : Disable/ ON : Enable e-Maintenance/ imageWARE Remote system to send device information,
meter data, and error statuses to the UGW.
Default value is OFF (not in use)
2 UGW-ADDRESS 129 bytes
(NULL
included, SJIS
not allowed)
The UGW address by default : https://a01---.
The complete address is not provided in this document for security reason.
3 UGW-PORT 4 bytes The UGW Port Number by default : 443
Validation : 1-65535
4 COM-TEST To perform Communication test with UGW and set "OK!"/ "NG!" as the result.
5 COM-LOG Detailed communication data log
Switches to display time when error occurred, error code, and error data up to now.
Max 30 loggings retained.
Max 128 characters (not containing NULL) for Error information.
6 ERDS-DAT Initialize e-RDS setting data
First Level Second Level Third Level Fourth Level Fifth Level
DISPLAY
I/O DISPLAY
ADJUST
FUNCTION
REPLACE
COUNTER
SETTEING Pth
RTC
PV AUTO JUDGE
NETWORK CERTIFICATE CA-CERTIFICATE VALIDITY:*1 YYYY/MM/DD
E-RDS E-RDS SWITCH:*1 ON/OFF
UGW-ADDRESS:*1 http://XXX
UGW-PORT:*1 XXXXX
COM-TEST:*1 YES
COM-LOG:*1
HEAD DOT INF
INITIALIZE WARNING
ERROR
ADJUST
W-INK
CARRIAGE
PURGE
INK-USE CNT
W-INK-CHG CNT
HEAD-CHG CNT
HDD BOX PASS
PARTS-CHG CNT
PARTS COUNTER
USER SETTEING
CA-KEY:*1 YES/NO
ERDS-DAT:*1 YES/NO
To Next Page
