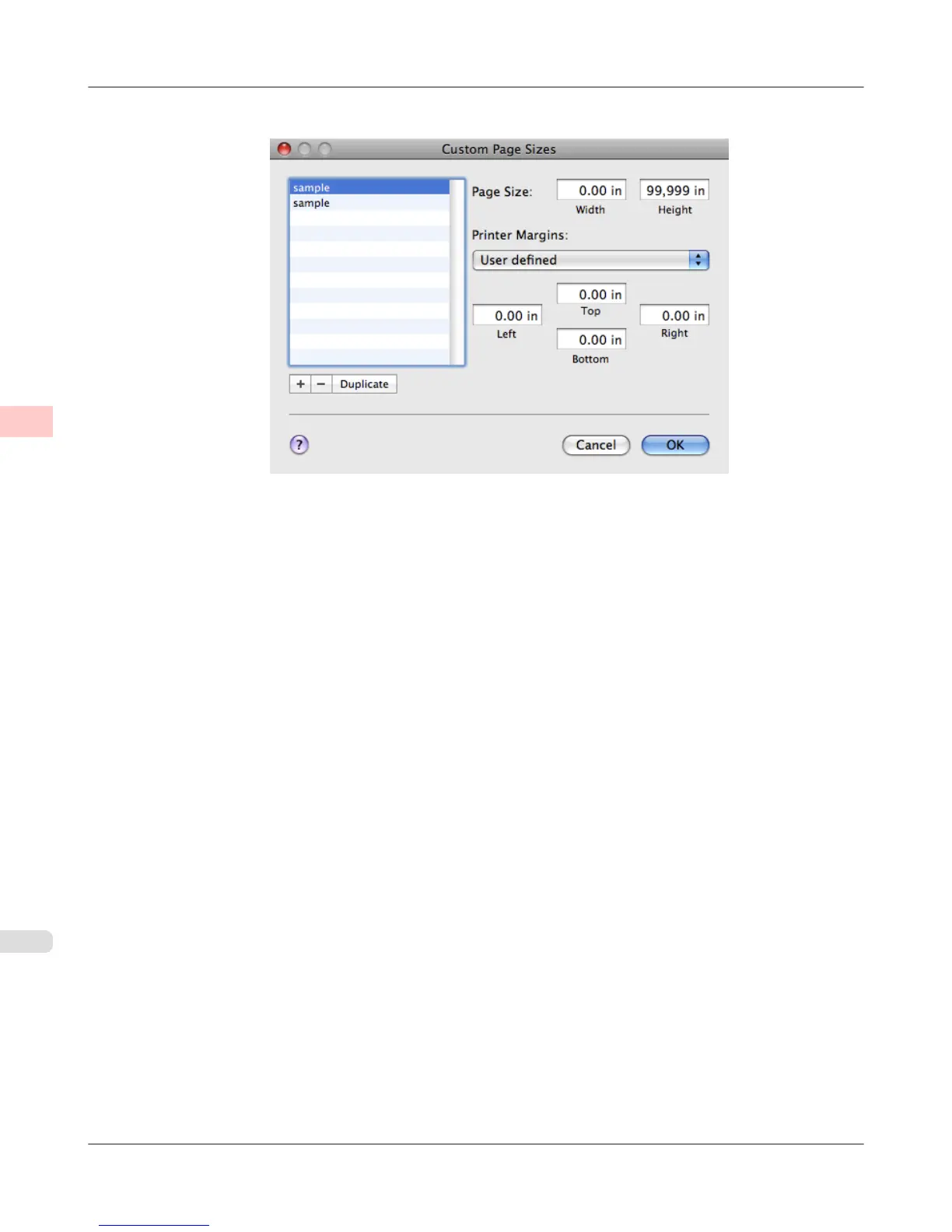

5. Click Manage Custom Sizes in the C Paper Size list to display the Custom Page Sizes dialog box.
6. In Page Size, enter the height and width of the original. Here, enter 43.00 cm in Height and Width.
7. In Printer
Margins, enter 0.5 for the top and side margins and 2.3 for the bottom margin. Here, measurements are
entered in centimeters.
8. Double-click Untitled in the list at left in the Custom Page Sizes dialog box and enter the paper name—in this case,
430*430.
9. Click OK to close the Custom Page Sizes dialog box.
10. In the C Paper Size list, click the size of the original. In this case, click 430*430, the size you registered.
11. If you configured the settings using the Page Attributes dialog box, click FOK to close the dialog box, and then
select Print from the application software menu.
Enhanced Printing Options
> Printing banners or at other non-standard sizes >
Printing on Non-Standard Paper Sizes (Mac OS X) iPF815
3
130

Canon imagePROGRAF iPF815 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Package weight	301200 g
Bundled software	Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint for Windows, Digital Photo Front-Access for Windows, PosterArtist Lite for Windows
Media thickness	0.07 - 0.8 mm
Roll top margin	3 mm
Maximum print size	-
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
ISO B-series sizes (B0...B9)	B0, B2
Electromagnetic compatibility	RoHS Directive, WEEE, Executive Order (USA)
Power requirements	AC 100 - 240V, 50/60Hz
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	190 W
Certification	UL (USA), C-UL (Canada), S mark (Argentina), CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024) (EU), CB certification (Others), FCC Class B (USA), IC Class B (Canada)
Storage media	HDD
Internal storage capacity	160 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100Base-T/TX Mbit/s
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit); Macintosh OS X 10.3.9 - 10.6 (32 bit), OS X 10.5 - 10.6 (64 bit)

Weight and Dimensions

Dimensions (WxDxH)	1892 x 975.4 x 1143 mm
