Canon imagePROGRAF iPF815 User Manual

Configuring the Communication Mode Manually
This topic gives instructions for configuring the communication mode manually.

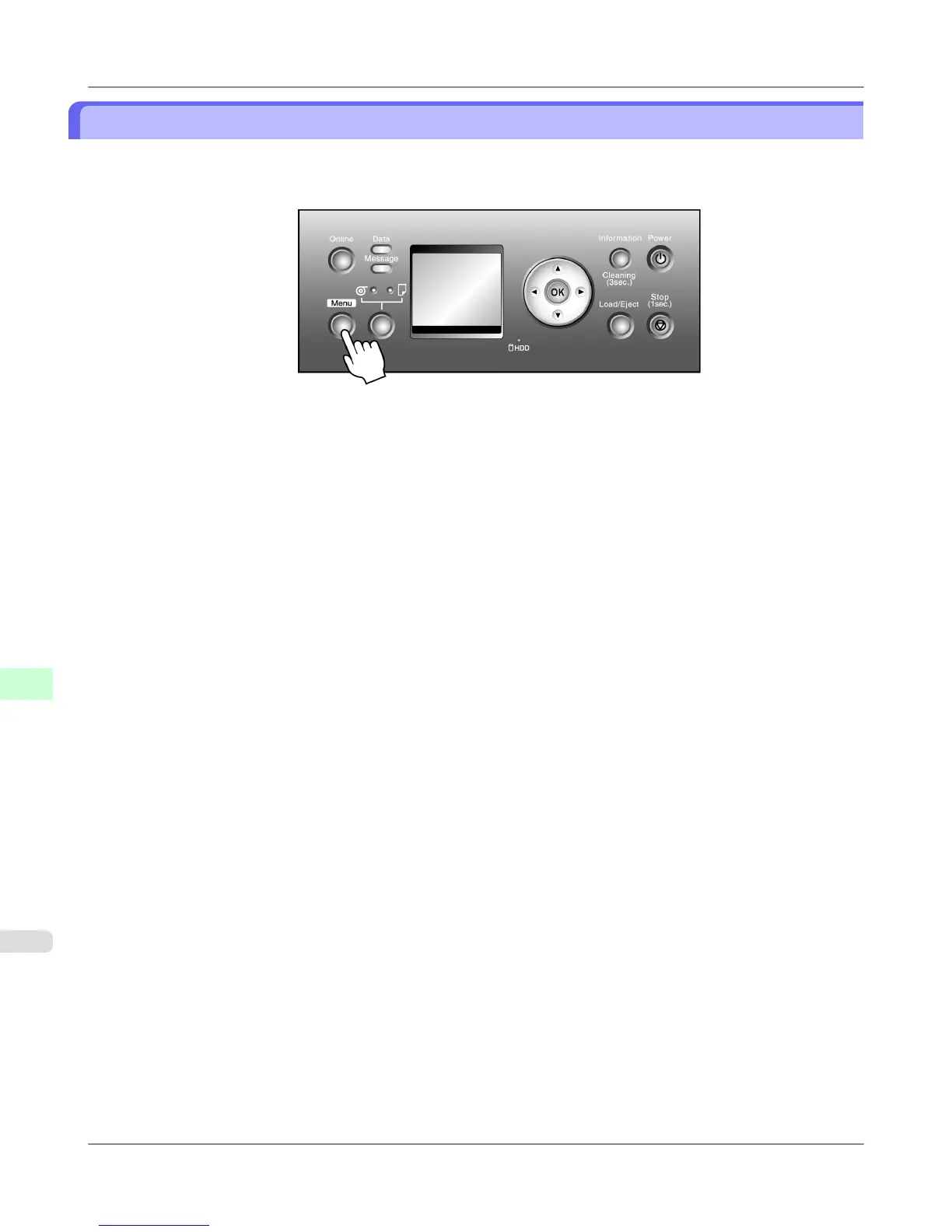

1. Press the Menu button to display MAIN MENU.
2. Press ▲ or ▼ to select Interface
Setup, and then press the ▶ button.
3. Press ▲ or ▼ to select Ethernet Driver, and then press the ▶ button.
4. Press ▲ or ▼ to select Auto Detect, and then press the ▶ button.
5. Press ▲ or ▼ to select Off, and then press the OK button.
Return to the Ethernet Driver menu.
6. Press ▲ or ▼ to select Comm.Mode, and then press the ▶ button.
7. Press ▲ or ▼ to select the communication mode, and then press the OK button.
Return to the Ethernet Driver menu.
8. Press ▲ or ▼ to select Ethernet Type, and then press the ▶ button.
9. Press ▲ or ▼ to select the Ethernet type, and then press the OK button.
Return to the Ethernet Driver menu.
10. Press ▲ or ▼ to select Spanning Tree, and then press the ▶ button.
11. Press ▲ or ▼ to enable or disable spanning tree support, and then press the OK button.
Return to the Ethernet Driver menu.
Network Setting
> Network Setting >
Configuring the Communication Mode Manually iPF815
10
780

Canon imagePROGRAF iPF815 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Package weight	301200 g
Bundled software	Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint for Windows, Digital Photo Front-Access for Windows, PosterArtist Lite for Windows
Media thickness	0.07 - 0.8 mm
Roll top margin	3 mm
Maximum print size	-
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
ISO B-series sizes (B0...B9)	B0, B2
Electromagnetic compatibility	RoHS Directive, WEEE, Executive Order (USA)
Power requirements	AC 100 - 240V, 50/60Hz
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	190 W
Certification	UL (USA), C-UL (Canada), S mark (Argentina), CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024) (EU), CB certification (Others), FCC Class B (USA), IC Class B (Canada)
Storage media	HDD
Internal storage capacity	160 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100Base-T/TX Mbit/s
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit); Macintosh OS X 10.3.9 - 10.6 (32 bit), OS X 10.5 - 10.6 (64 bit)

Weight and Dimensions

Dimensions (WxDxH)	1892 x 975.4 x 1143 mm
