Canon imagePROGRAF iPF815 User Manual

Free Layout
The Features of Free Layout ........................................................................................................................... 256
Operating Environment ................................................................................................................................... 257
Starting Free Layout ........................................................................................................................................ 257
Free Layout Main Window ............................................................................................................................... 259
Detailed Settings ............................................................................................................................................. 261
Preferences Dialog Box ................................................................................................................................... 262
Page Options Dialog Box ................................................................................................................................ 263
Zoom Dialog Box ............................................................................................................................................. 264
Format Dialog Box ........................................................................................................................................... 265
Laying out a Multiple-File Document on One Page ......................................................................................... 267
Laying out a Document Created with Multiple Application Programs on One Page ....................................... 270
Selecting an Object ......................................................................................................................................... 273
Changing the Object Size ................................................................................................................................ 274
Moving an Object ............................................................................................................................................ 274
Rotating an Object ........................................................................................................................................... 275
Laying out Objects Automatically .................................................................................................................... 276
Aligning Objects .............................................................................................................................................. 276
Changing the Object Overlapping Order ......................................................................................................... 278
Pasting a Copied or Cut Object ....................................................................................................................... 280
Folded Duplex Window ................................................................................................................................... 281
Finished Size Settings Dialog Box .................................................................................................................. 282
Binding Settings Dialog Box ............................................................................................................................ 283
Prints using Folded Duplex ............................................................................................................................. 284

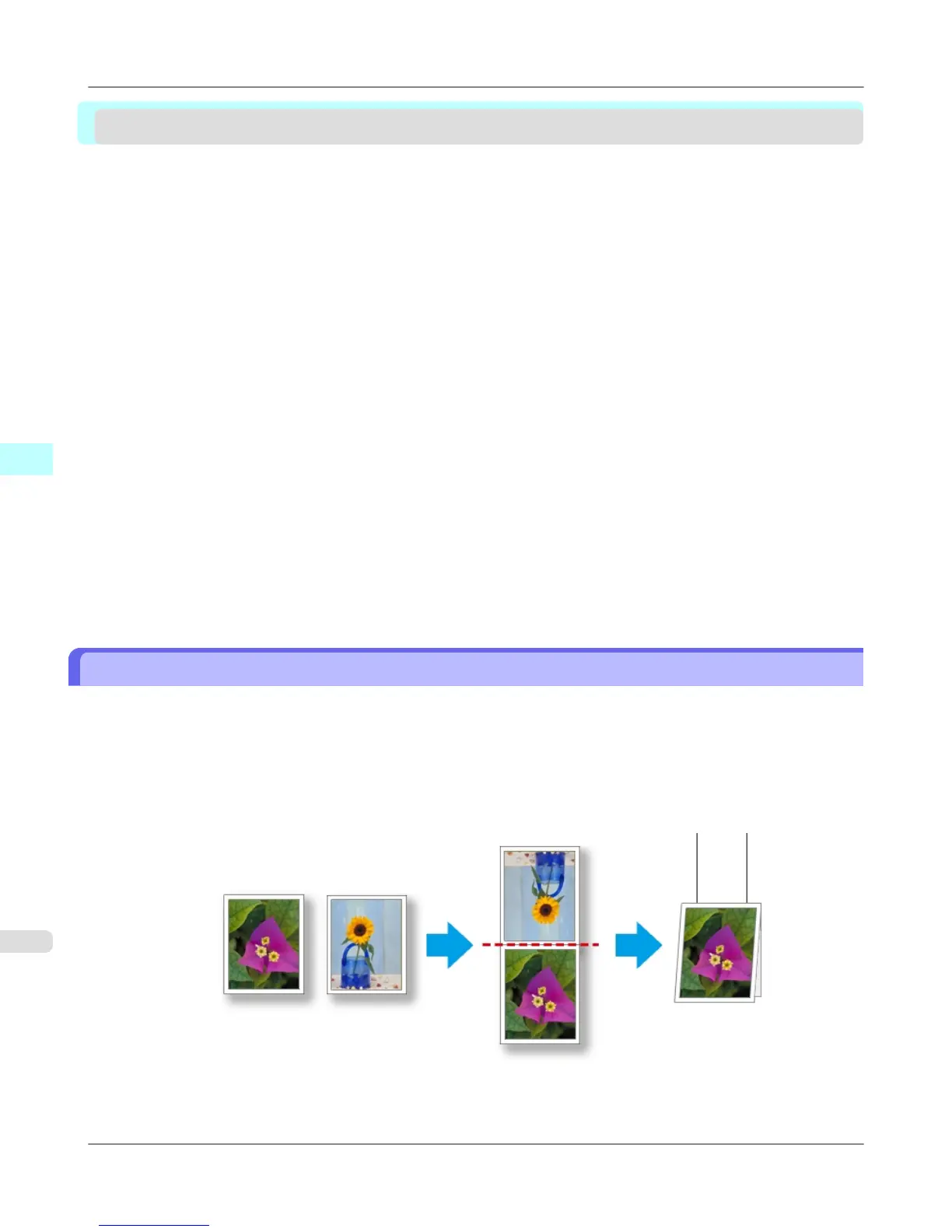

The Features of Free Layout
The main features of Free Layout are as follows.
• Allows you to lay out at will and print a document created with application software.
• You
can not only lay out multiple pages on one page but also lay out and print a multiple-file document on one page,
or lay out and print a document created with multiple application programs on one page.
• Any two pages can be arranged and printed in a layout that becomes duplex on folding.
This can be used such as for advertising posters that are suspended from the ceiling.
Windows Software
> Free Layout >
The Features of Free Layout iPF815
4
256
