Canon imagePROGRAF iPF815 - Top Cover (Inside)

g.
Accessory Pocket
Store assembly tools, Roll Holder attachments, and other items in this pocket.

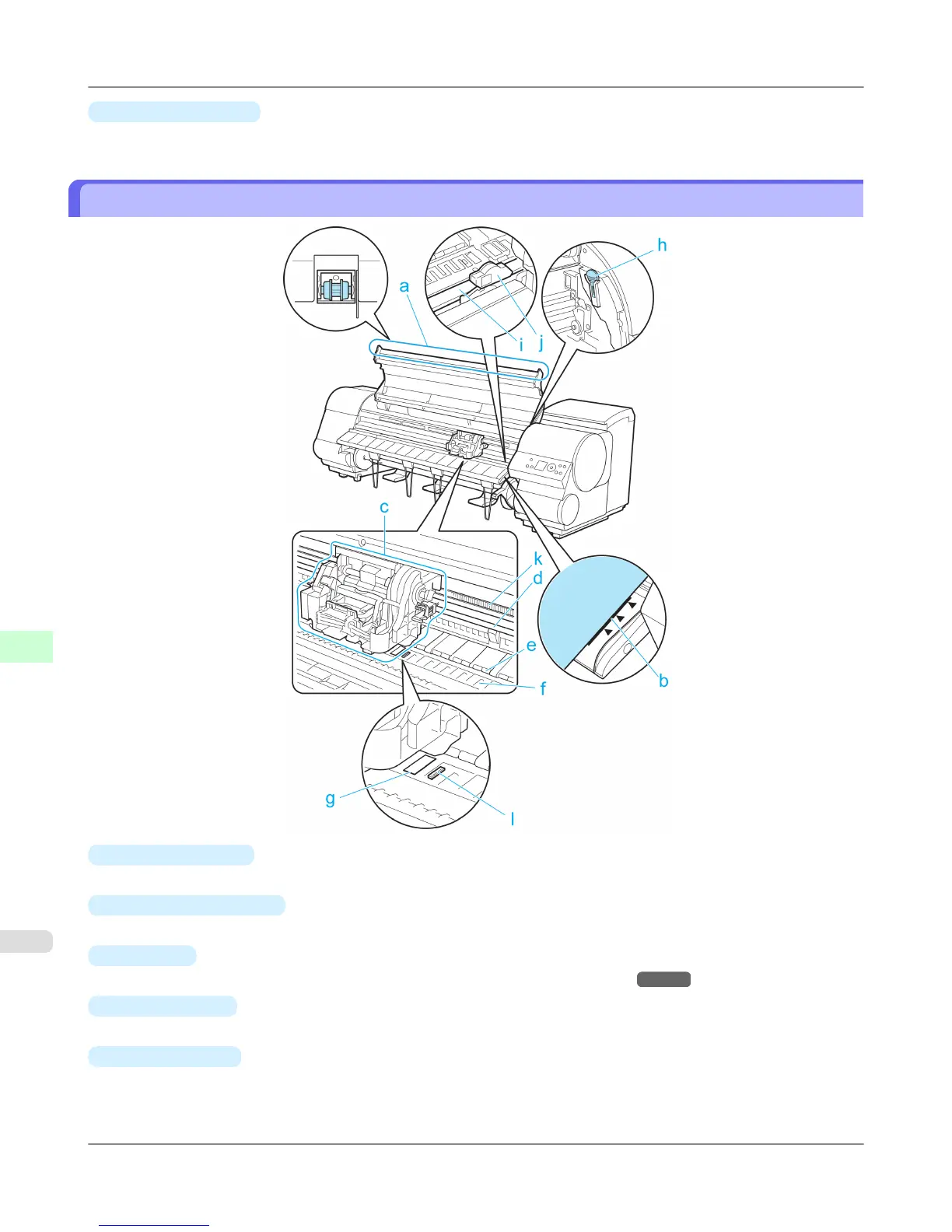

Top Cover (Inside)
a.
Top Cover Roller
Prevents paper from rising when ejected.
b.
Paper Alignment Line
Align paper with this line when loading it.
c.
Carriage
Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.") →P.689
d.
Carriage Shaft
The Carriage slides along this shaft.
e.
Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
