Canon imagePROGRAF iPF815 User Manual

Manually Loading Paper to the Position for Printing
When printing on non-standard sizes of paper or to specify a particular position to start printing, in the printer menu set
Width Detection to Off for the paper used.
Setting Width Detection to Off will prevent paper from being automatically advanced to the position for printing. In this
case, manually load paper at the position for printing.
Instructions for manually loading paper at the position for printing when Width Detection is set to Off are as follows.

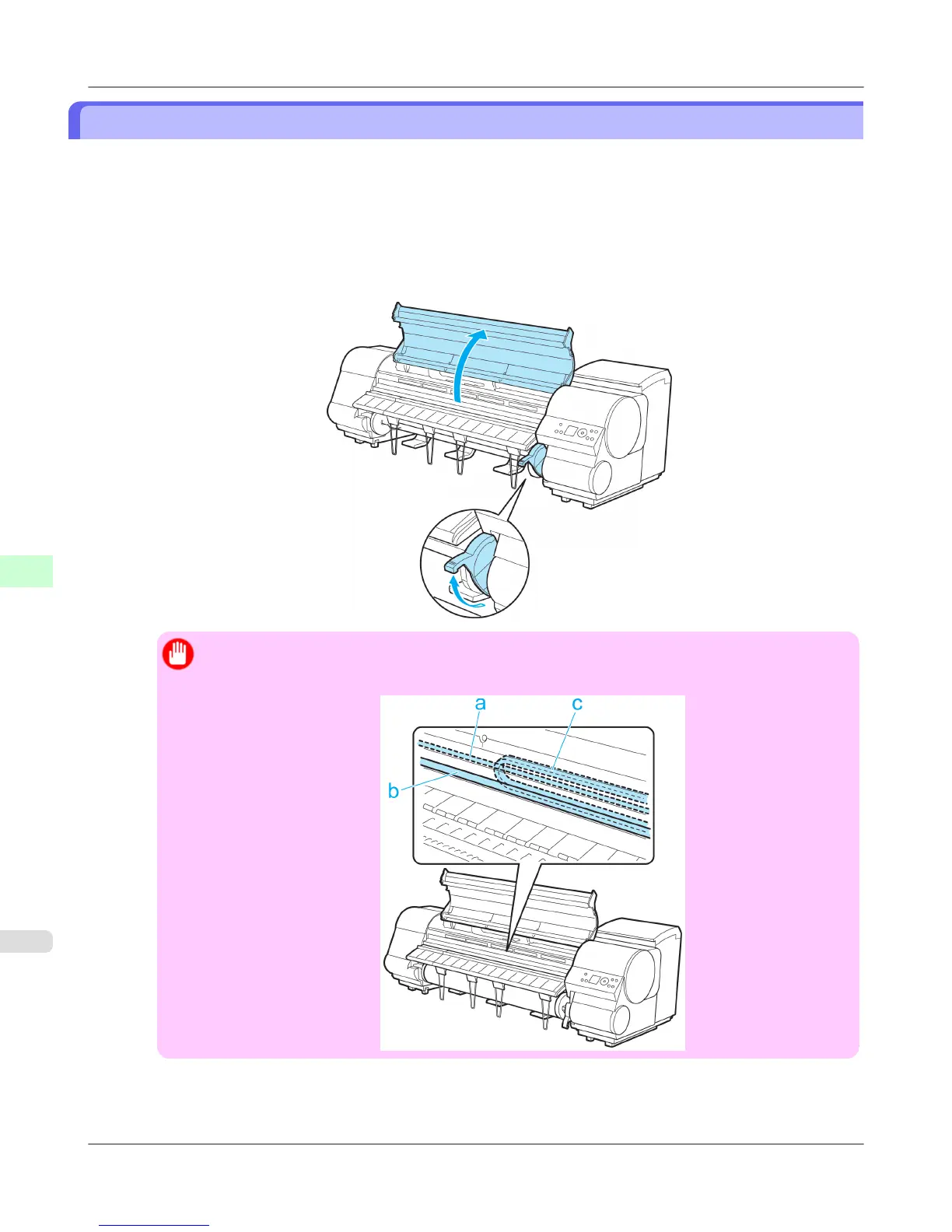

1. If
you send a print job from a computer beforehand, the type and size of paper are shown on the Display Screen. Lift
the Release Lever and open the Top Cover.
Important
• Do
not touch the Linear Scale (a), Carriage Shaft (b), or Ink Tube Stabilizer (c). Touching these parts
may damage them.
Handling Paper
> Handling sheets >
Manually Loading Paper to the Position for Printing iPF815
7
654

Canon imagePROGRAF iPF815 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Package weight	301200 g
Bundled software	Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint for Windows, Digital Photo Front-Access for Windows, PosterArtist Lite for Windows
Media thickness	0.07 - 0.8 mm
Roll top margin	3 mm
Maximum print size	-
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
ISO B-series sizes (B0...B9)	B0, B2
Electromagnetic compatibility	RoHS Directive, WEEE, Executive Order (USA)
Power requirements	AC 100 - 240V, 50/60Hz
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	190 W
Certification	UL (USA), C-UL (Canada), S mark (Argentina), CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024) (EU), CB certification (Others), FCC Class B (USA), IC Class B (Canada)
Storage media	HDD
Internal storage capacity	160 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100Base-T/TX Mbit/s
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit); Macintosh OS X 10.3.9 - 10.6 (32 bit), OS X 10.5 - 10.6 (64 bit)

Weight and Dimensions

Dimensions (WxDxH)	1892 x 975.4 x 1143 mm
